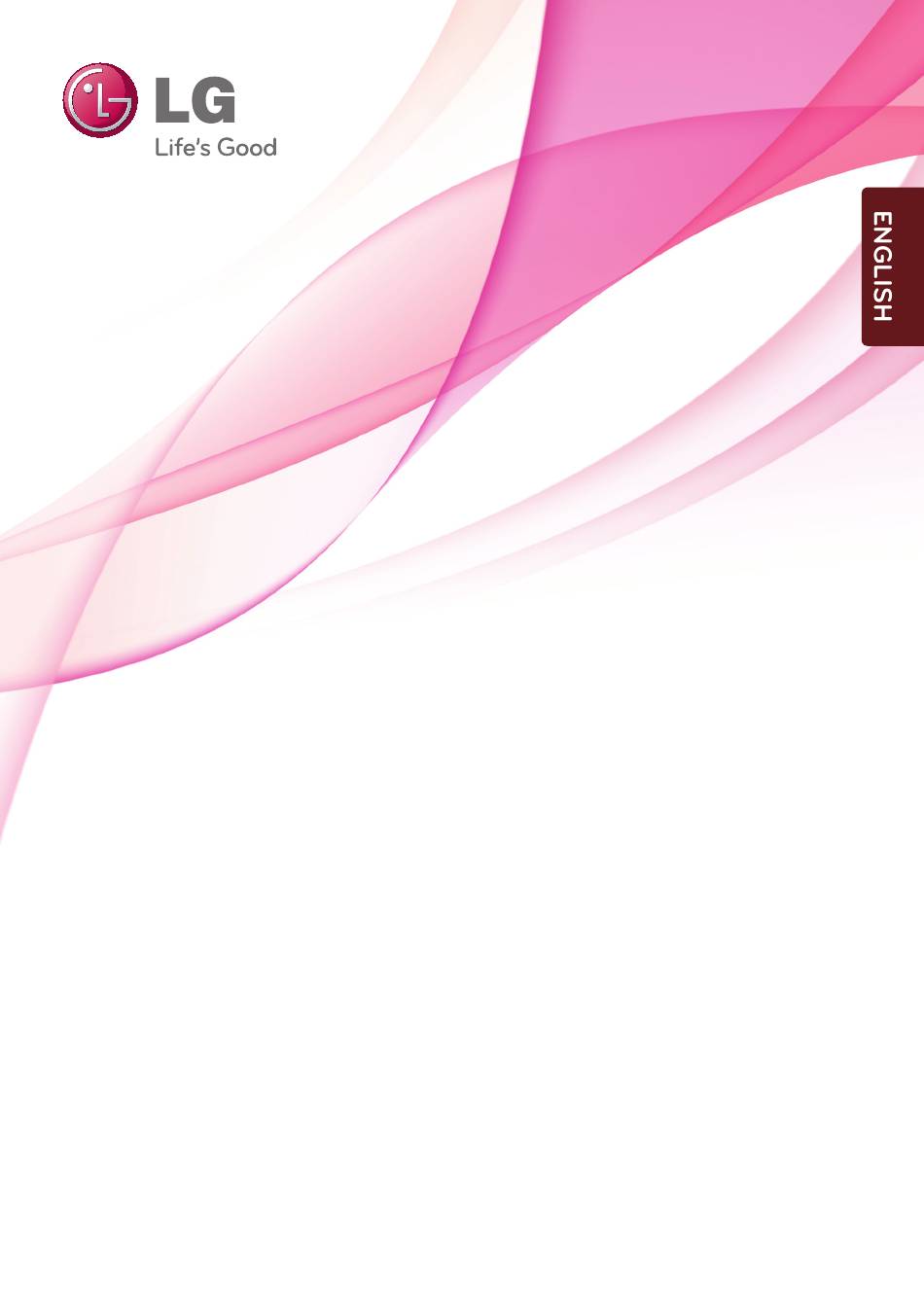

OWNER'S MANUAL
NETWORK MONITOR
Please read this manual carefully before operating your set and
retain it for future reference.
NETWORK MONITOR MODEL
N194WHA
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N194WHA and is the answer not in the manual?

Questions and answers

Related Manuals for LG N194WHA

Summary of Contents for LG N194WHA

  • Page 1 OWNER’S MANUAL NETWORK MONITOR Please read this manual carefully before operating your set and retain it for future reference. NETWORK MONITOR MODEL N194WHA www.lg.com...
  • Page 2 Accessories Thank you for purchasing this LGE product Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. 15-pin D-SUB Signal Cable OWNER'S MANUAL /Cards (To set it up, this signal cable may be attached to this product before shipping out.) Power Cord...

  • Page 3: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 4 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
  • Page 5 Important Precautions On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching.

  • Page 6: Connecting The Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand Place the monitor with its front facing downward on a cushion or soft cloth. Assemble the Stand Base into the Stand Body.

  • Page 7: Positioning Your Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display Adjust the position of the panel in various ways for maximum comfort. Tilt Range: -5˚to18˚...

  • Page 8: Using The Pivot Function

    Connecting the Display Using the Pivot function -The pivot function allows you to rotate the screen 90 degrees clockwise. Lift the monitor to its highest height to utilize the Pivot function. . Landscape & Portrait : You can rotate the panel 90 clockwise.

  • Page 9: Connecting To The Computer

    Connecting the Display Connecting to the Computer Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connect D-SUB(RGB Analog) Cable (PC) Connect D-SUB(RGB Analog) Cable (Mac) signal input cables Wall-outlet type Mac adapter Connect the signal...
  • Page 10 Connecting the Display Connecting to the Computer Using LAN Make sure to turn off the computer and product. Connect the cable as below sketch map form Connect peripheral devices USB 1.1 port USB 2.0 port Connect LAN Cable (Only for keyboard (Only for USB and mouse) memory stick)
  • Page 11 Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display Using the cable holder...

  • Page 12: Control Panel Functions

    Control Panel Functions Front Panel Controls • LAN : This menu is available, use this button to MUTE Button switch the sound on or off. <mute off> <mute on> • D-SUB : This menu is not available. Use this button to enter or exit the On Screen Display. MENU Button OSD LOCKED/UNLOCKED This function allows you to lock the current control...
  • Page 13 Control Panel Functions Use these buttons to select or adjust functions in the SOURCE On Screen Display. Use this button to make either D-SUB or LAN connector active. This feature is used when two input sources are connected to the display. Use these buttons to select or adjust functions in the On Screen Display.

  • Page 14: On Screen Display (Osd) Control Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls.
  • Page 15 On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. : D-SUB input D-SUB : LAN input Main menu Sub-menu Supported signals Description BRIGHTNESS PICTURE To adjust the brightness, contrast D-SUB CONTRAST and gamma of the screen...

  • Page 16: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
  • Page 17 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE BRIGHTNESS To adjust the brightness of the screen. To adjust the contrast of the screen. CONTRAST Set your own gamma value. : -50/0/50 GAMMA On the monitor, high gamma values display whitish images and low gamma values display blackish images.
  • Page 18 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description POSITION To move image left and right. HORIZONTAL To move image up and down. VERTICAL MENU : Exit : Decrease : Increase SET : Select another sub-menu TRACKING CLOCK To minimize any vertical bars or stripes visible on the screen background.
  • Page 19 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description To choose the language in which the LANGUAGE control names are displayed. SETUP To adjust position of the OSD window on POSITION the screen. WHITE If the output of the video card is different from BALANCE the required specifications, the color level may deteriorate due to video signal distortion.
  • Page 20 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description MOVIE This feature lets you easily select the best desired INTERNET image condition optimized to the environment (ambient illumination, image types etc). MOVIE: For animation images in videos or movies INTERNET: For text images (Word processing etc.) USER User...

  • Page 21: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears ● Is the power cord of • Check and see if the power cord is connected the display onnected? properly to the power outlet. ● Is the power indicator •...

  • Page 22: Display Image Is Incorrect

    Troubleshooting Display image is incorrect ● Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.
  • Page 23 Troubleshooting Display image is incorrect ● The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video card is properly inserted in the slot.

  • Page 24: Specifications

    Specifications 48.133 cm (18.95 inch) Flat Panel Active matrix-TFT LCD, Display Anti-Glare coating Visible diagonal size: 48.133 cm 0.2835 mm x 0.2835 mm pixel pitch Horizontal Freq. 30 kHz to 61 kHz (Automatic) Sync Input Vertical Freq. 57 Hz to 63 Hz (Automatic) D-SUB Signal Input 15 pin D-SUB Connector...

  • Page 25: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) - D-SUB (Analog) Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.469 640 x 480 31.468 720 x 400 37.879 800 x 600 48.363 1024 x 768 55.935 1440 x 900 *Recommend Mode LAN Preset Modes (Resolution) Display Modes (Resolution) 800 x 600 (60 Hz) 1024 x 768 (60 Hz)

  • Page 26: Installing The Wall Mount Plate

    Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Place the monitor with its front facing downward on a soft cloth. Separate the stand after firstly separating 4 screws by using a driver as figure.
  • Page 27 This is stand-type or wall mount type and is connectable with Wall mount plate. Please refer to the installation guide for more details, which is provided when Wall mount plate is purchased.LG recommends that wall mounting be performed by a qualified professional installer. Wall Mount pad <Screw Mounting Interface Dimension>...
  • Page 28 W i t h LG E N et wo r k M o n i to r, s o m e P C programs may not be compatible or need to be modified due to different kind of operation. Please check the compatibility in advance, before purchasing or installing the software.
