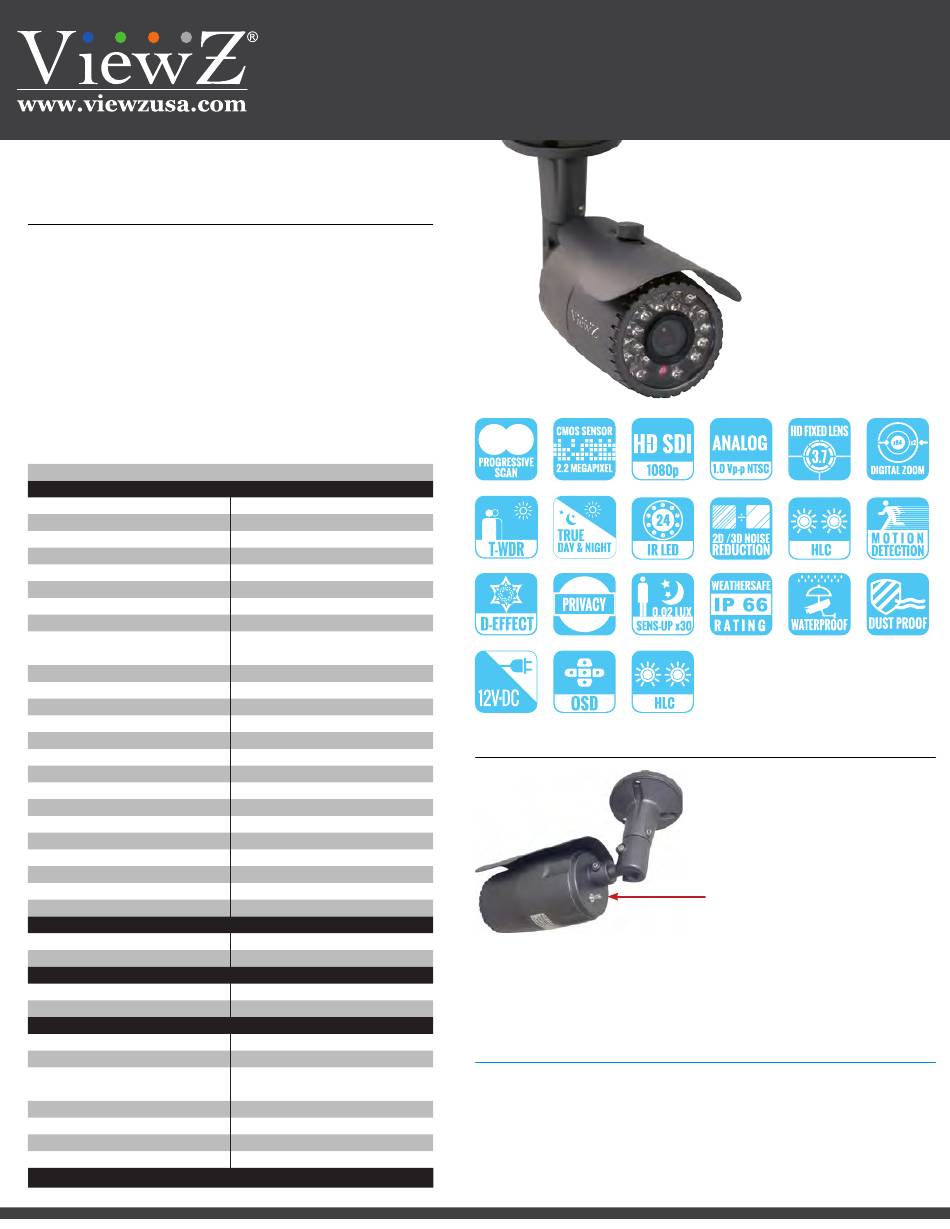

VZ-HDC-4
ADVANTAGES
• Full HD 1080p over coaxial cable, BNC connection
• Anti-dust coated polycarbonate cover
• Aluminum Die-Casting body
• True WDR, True Day and Night
• Panasonic 2.2 Megapixel CMOS Sensor
• 3.0 Megapixel Fixed 3.7mm HD Lens
• 1920x1080p/30fps, HD-SDI(BNC) and 700TVL Analog (BNC)
• 0.5Lux (Color), 0.1Lux (B/W), 0.02Lux (Sens-up 30X)
• 24 IR LEDs, AGC, ATW, DNR (2D + 3D),
MODEL #
SPECIFICATION
Imaging Sensor
HD-SDI Scanning System
Number of active pixels
Number of effective pixels
S/N Ratio
HD-SDI Video Output
Analog Video Output Level
Min. Illumination
Lens
Electronic Shutter Speed
White Balance
Backlight Compensation
Digital - WDR
AGC
Adjust
True Day & Night
2D/3D-NR
Digital Zoom
Privacy Masking
Motion Detection
Defect
Sens - up
D - EFFECT
IR LED
INTERFACE
HD-SDI – BNC
CVBS – BNC ( Yellow )
WEIGHT & DIMENSIONS
Dimensions
( W x H x D )
Net Weight
GENERAL
Language
Construction
Power
- Supplied Voltage
- Power Consumption
Regulation
Humidity
Operating Temperature
Storage Temperature
Day & Night
VZ-HDC-4
PANASONIC 2.2 Megapixel CMOS Sensor
Progressive Scan
1944 (H) x 1092 (V) = 2,122,848 (pixel)
2010 (H) x 1108 (V) = 2,227,080 (pixel)
More than 50dB
1080P (1920x1080)
1.0 Vp-p (75Ω, Composite) NTSC
0.5Lux (Color), 0.1Lux (BW), 0.02Lux (Sens-up x30)
Megapixel 3.7mm HD Lens,
Aperture Ratio: 2.5
Auto / Flk (NTSC : 1/30sec ~ 1/50,000sec)
AWC-SET, MANUAL, INDOOR, OUTDOOR
WDR, BLC, HSBLC, Off
On, Off
Adjustable 1 � 15
SHARPNESS, MONITOR, LSC, NTSC/PAL
Auto, B.W, Color, EXT
On, Off
On (x2 � x64) / Off
On (8 Zone Selectable) / Off
On (4 Zone Selectable) / Off
LIVE DPC / STATIC DPC
On (X2 � X30) / Off
Freeze / Mirror / D-Zoom / NEG.IMAGE
24pcs IR LED
1
1
2.83" x 2.51" x 7.32" / 72mm x 64mm x 186mm
0.617 lbs / 280g
English (Selectable)
Polycarbonate cover & Aluminum Die-Casting body
DC12V ±10%
Max. 460mA IR LEDs ON
CE, FCC, RoHS, KCE
0% to 90%
14 - 122°F / -10°C - 50°C
-4 - 140°F / -20°C - 60°C
VZ-HDC-4
1080 HD-SDI
Bullet Weather-proof IR Camera
OSD Control
• SET : Used to access the menu and confirm selection
• UP: Used to move the cursor up
• DOWN : Used to move the cursor down
• LEFT : Used to move the cursor left and change the value
• RIGHT : Used to move the cursor right and change the value
Contact ViewZ
• Address : 177 W. Orangethorpe Ave., Placentia, CA 92870
• Phone : (714) 996-1177, Fax : (714) 996-1138
• Sales : sales@viewzusa.com
• Specification subject to change without notice.
OSD Button Cap
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ViewZ VZ-HDC-4
Summary of Contents for ViewZ VZ-HDC-4
- Page 1 VZ-HDC-4 1080 HD-SDI Bullet Weather-proof IR Camera VZ-HDC-4 ADVANTAGES • Full HD 1080p over coaxial cable, BNC connection • Anti-dust coated polycarbonate cover • Aluminum Die-Casting body • True WDR, True Day and Night • Panasonic 2.2 Megapixel CMOS Sensor • 3.0 Megapixel Fixed 3.7mm HD Lens • 1920x1080p/30fps, HD-SDI(BNC) and 700TVL Analog (BNC) • 0.5Lux (Color), 0.1Lux (B/W), 0.02Lux (Sens-up 30X) Day & Night • 24 IR LEDs, AGC, ATW, DNR (2D + 3D), MODEL # VZ-HDC-4 SPECIFICATION Imaging Sensor PANASONIC 2.2 Megapixel CMOS Sensor HD-SDI Scanning System...
- Page 2 VZ-HDC-4 1080 HD-SDI Bullet Weather-proof IR Camera INSTALLATION PRECAUTIONS 1. Attach the camera base on the installation surface with the supplied screws. Do not use the camera if fumes, smoke or a strange odor is emitted from 2. Adjust the camera angle using the wrench included. the unit, or if it seems to not function correctly. Disconnect the power source 3. Put the hood over the camera body. immediately and consult your supplier. 4. Connect the camera output to the DVR or to the monitor. 5. Connect the power source. Always follow the instructions in the installation guide when applying power. Fire and equipment damage can occur if power is applied incorrectly. For the correct power supply, refer to the specification sheet. CVBS BNC (Yellow) HD-SDI BNC Do not install or operate in small, unventilated areas. Heat build up can significantly reduce the performance and operating life of the product and may cause a fire. To prevent damage, do not drop the camera or subject it to strong shock or POWER CABLE vibration. 12V DC If installed close to a TV, radio transmitter, magnet, electric motor transformer or audio speakers the magnetic field generated may interfere with or distort the image. HD-SDI BNC Whether or not the camera is used outdoors, never point it toward the sun. Use caution when operating the camera in the vicinity of spot lights or CVBS BNC (Yellow) other bright lights and light reflecting objects. POWER 12VDC Do not use the camera in extreme environments where high temperatures or high humidity exists. Use the camera under conditions where temperatures are...
