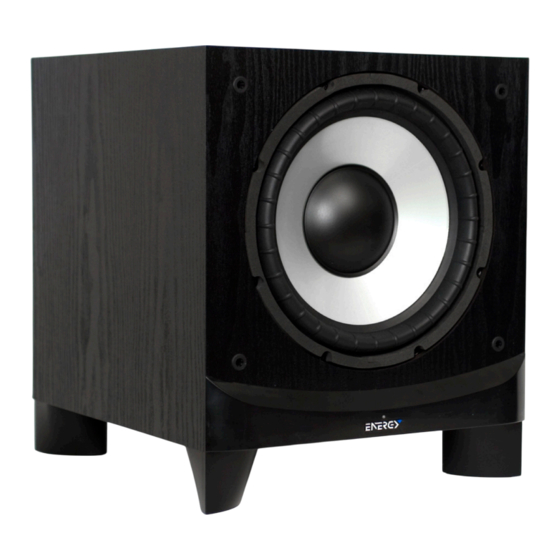

Energy Connoisseur ESW-C10 Specifications

ESW-C10
400 Watts peak power
For accurate reproduction of movie and music soundtracks
10-inch injected molded cone with Ribbed elliptical Surround
Provides tight and powerful bass response
Variable Low pass filter—40Hz-120Hz
Allows versatile blending using the built-in crossover or your surround
processor
Bass-reflex design with down firing port
Provides excellent bass extension
all energy brand components were developed with these sonic
principles in mind:
flat on-axis frequency Response with Wide Bandwidth
•
Speakers should reproduce the entire audio range in a uniform
manner. By ensuring that no one frequency dominates any other,
Energy ensures that every note is the way it was intended to be—and
the sound is as natural as possible.
Wide and constant Dispersion
•
Sound at all frequencies radiating from the speaker should be in an
even pattern, in all directions throughout the room.
• Low Distortion and Resonance
No speaker system is totally distortion- or resonance-free, but Energy
has achieved a significantly lower distortion level—a clearly audible
improvement.
S p e c i f i c at i o n S
10-inch (25.4 cm) Injection molded cone with
Woofer
Ribbed Elliptical Surround
amplifier power
400 Watts dynamic, 150 Watts continuous
frequency Response 32Hz-140Hz
Max SpL 102.6dB @ 30Hz, ground plane, 1m
Variable Low pass filter 40Hz-120Hz
phase control
0°, 180°
inputs
L + R Line in/Sub in, speaker level in
power Modes
Off / Auto / On
Units/carton 1
Dimensions H x W x D
17 x 13 x 14.8 inches
(inches/cm) including feet
43.1 x 33 x 37.6 cm
and grille
product Weight
28 lbs (12.7 kg)
finish
Black ash cabinet with high gloss black baffle trim
All specifications are subject to change without notice. ©2008
e S W - c 1 0
www.energy-speakers.com
