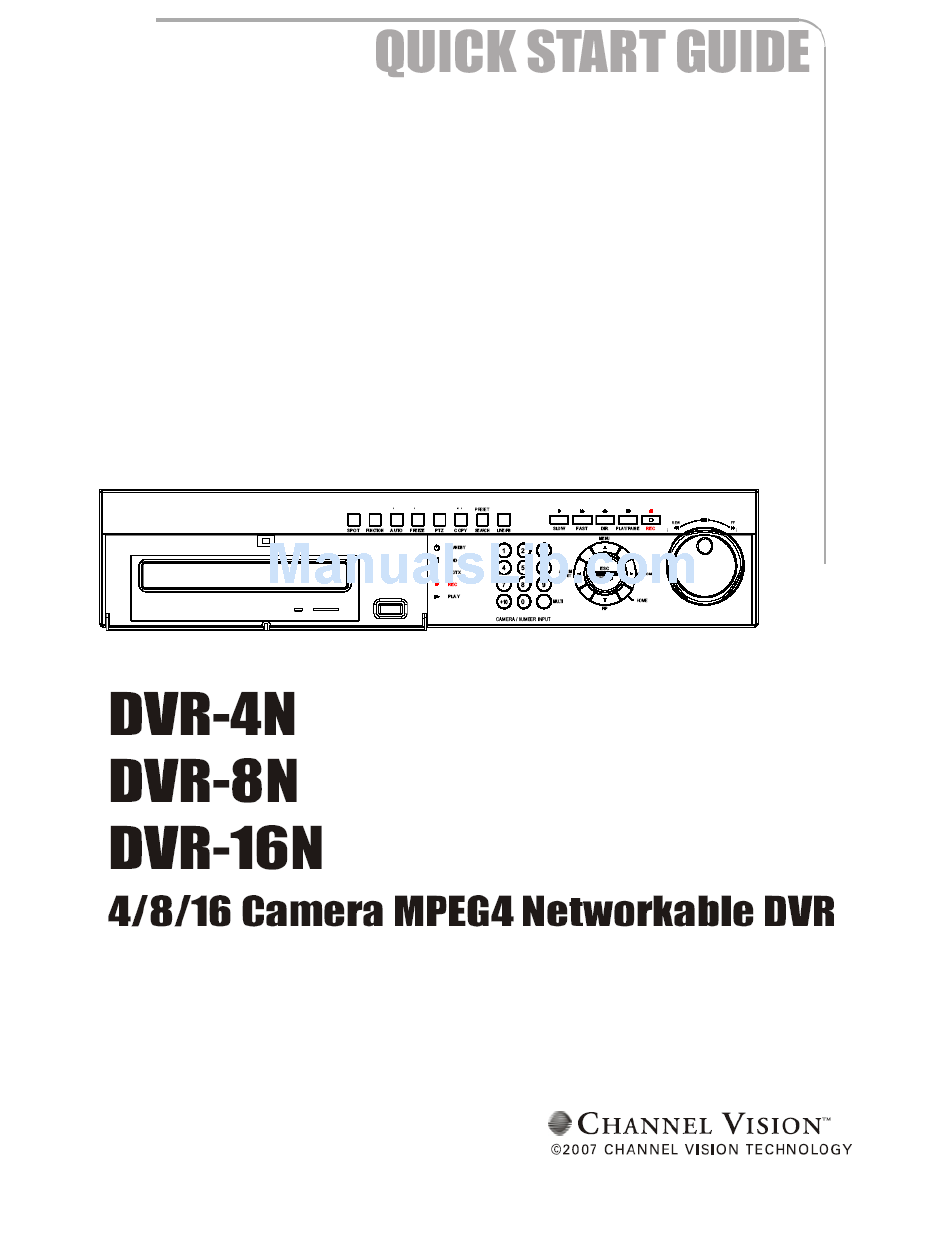

Channel Vision DVR-N Quick Start Manual

4/8/16 camera mpeg4 networkable dvr
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DVR-N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Channel Vision DVR-N

Summary of Contents for Channel Vision DVR-N

  • Page 2: Section 1: Software Setup

    Section 1: Software Setup Follow Steps: Click on the "Start" menu and click "Run" Write the word "cmd" or "command" for Windows XP or Vista. Click OK.
  • Page 3 Type in ipconfig /all This is similar to what you will get when you type in ipconfig...
  • Page 4 Copy this information from your ipconfig /all. (Example on previous page )

  • Page 5: Section 2: Online Viewing

    There are 2 ways to view this online. 1. Internet Explorer (or any browser that uses ActiveX Controls) 2. Software. (DVR Viewer 1.35, 1.45, 1.50, 1.75, 1.84, 1.99) 1.) To use Internet Explorer, use this address. You will be prompted to install an ActiveX Control. Click install.
  • Page 6 (11111111) or 22222222 for a non- administrator password. Shown is an internal IP. (192.168.1.122) The Port is 5401 You may also use an external IP, as long as your port is forwarded. For example, Channel Vision’s DVR display model is 68.165.38.221. It is an external IP Address.
  • Page 7 Note: You can only view your cameras in Internet Explorer; you cannot search for events or change settings IMPORTANT NOTE: You must contact your router’s Technical Support to find out how to forward your DVR’s IP to a certain port. If you do not, you can only view the DVR from your location.
  • Page 8 2.) For Software: Follow steps below 1. Place DVR CD in CD Rom Drive 2. Double click the My Computer Icon 3. Double click the CD-Rom Drive 4. Double Click Software...
  • Page 9 5. Double-Click Setup.exe 6. Install Software. The picture below is what the software looks like once installed. The software version is listed here...

  • Page 10: Section 3: Basic Dvr Configuration

    Press the menu button and the Quick Setup menu appears as the following picture. Turn Quick Setup on, by moving the Jog Dial. Quick Setup will configure your DVR to record when your camera sees motion. Change image size to 720x480, as 720x240 is a widescreen image. (Jog Dial)

  • Page 11: Section 4 Basic Functions Of Dvr

    Section 4 Basic Functions of DVR Search: 1.) On DVR Viewer. See Below. Select Event, and click ‘play’...
  • Page 12 2.) DVR Itself. See Below. (Copied from manual) The easiest way to search is by using ‘Search and Copy’ Select exact Date & Time. Click Status/Enter on front of DVR.

This manual is also suitable for:

Dvr-4nDvr-8nDvr-16n
