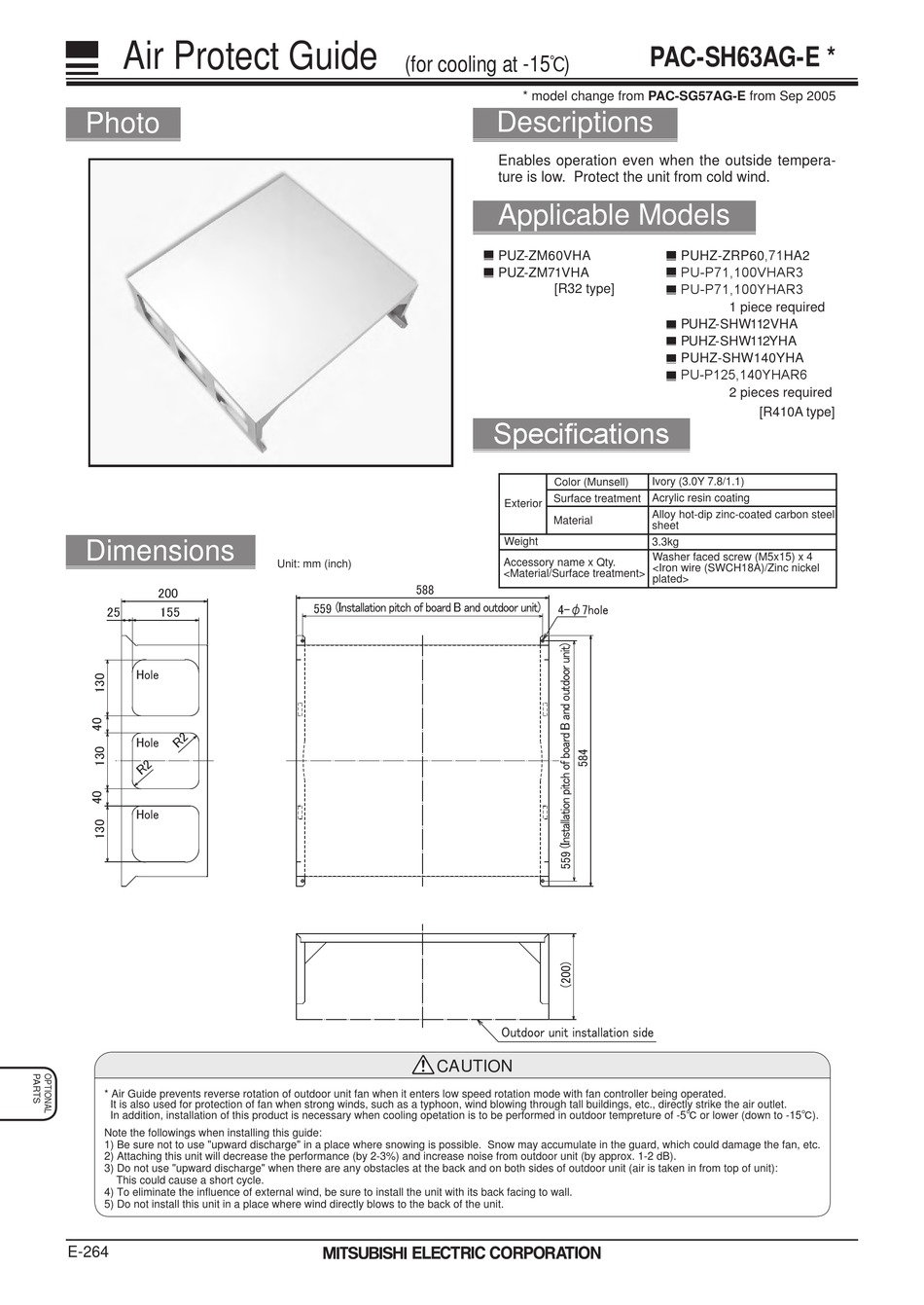

Air Protect Guide
Dimensions
200
25 155
Hole
Hole
Hole
* Air Guide prevents reverse rotation of outdoor unit fan when it enters low speed rotation mode with fan controller being operated.
It is also used for protection of fan when strong winds, such as a typhoon, wind blowing through tall buildings, etc., directly strike the air outlet.
In addition, installation of this product is necessary when cooling opetation is to be performed in outdoor tempreture of -5℃ or lower (down to -15℃).
Note the followings when installing this guide:
1) Be sure not to use "upward discharge" in a place where snowing is possible. Snow may accumulate in the guard, which could damage the fan, etc.
2) Attaching this unit will decrease the performance (by 2-3%) and increase noise from outdoor unit (by approx. 1-2 dB).
3) Do not use "upward discharge" when there are any obstacles at the back and on both sides of outdoor unit (air is taken in from top of unit):
This could cause a short cycle.
4) To eliminate the influence of external wind, be sure to install the unit with its back facing to wall.
5) Do not install this unit in a place where wind directly blows to the back of the unit.
E-264
(for cooling at -15 )
Unit: mm (inch)
588
(Installation pitch of board B and outdoor unit)
559
CAUTION
PAC-SH63AG-E *
* model change from PAC-SG57AG-E from Sep 2005

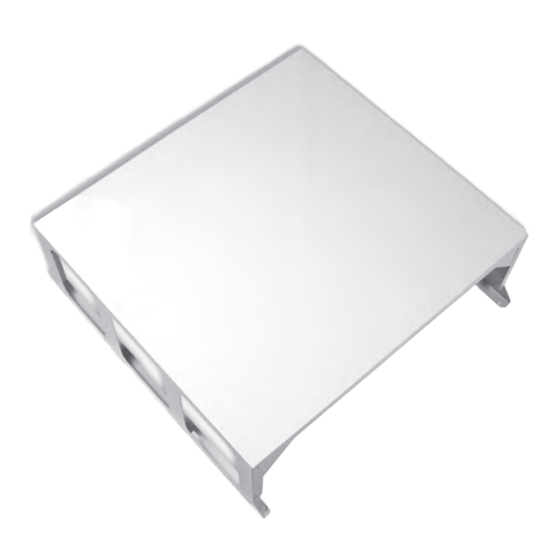

Descriptions
Enables operation even when the outside tempera-
ture is low. Protect the unit from cold wind.
Applicable Models
PUZ-ZM60VHA
PUZ-ZM71VHA
[R32 type]
Specifications
Ivory (3.0Y 7.8/1.1)
Color (Munsell)
Surface treatment Acrylic resin coating
Exterior
Alloy hot-dip zinc-coated carbon steel
Material
sheet
Weight 3.3kg
Washer faced screw (M5x15) x 4
Accessory name x Qty.
<Iron wire (SWCH18A)/Zinc nickel
<Material/Surface treatment>
plated>
4-φ7hole
Outdoor unit installation side
PUHZ-ZRP60,71HA2
PU-P71,100VHAR3
PU-P71,100YHAR3
1 piece required
PUHZ-SHW112VHA
PUHZ-SHW112YHA
PUHZ-SHW140YHA
PU-P125,140YHAR6
2 pieces required
[R410A type]
