1.2 Specification

Model:54Mbps WLAN CardBus Adapter
Radio:Complies with IEEE 802.11b/g
Frequency Band:2.412-2.462GHz(U.S.) 2.412-2.484GHz(Japan)2.412-2.472GHz(ETSI)
Modulation TYPE :BPSK,QPSK,CCK,16-QAM,64-QAM
Operating Channels:11 channels (US)13 channels (ETSI)14 channels (Japan)
Data Rate:1 / 2 / 5.5 / 6/9/11/12/24/36/48/54Mbps
Output Power: 18dBm@11Mbps;14dBm@54Mbps
Receive sensitivity: Min.80dBm for 11Mbps (@BER 8%) Min. -70dBm for 54 Mbps(@BER 10%)
Antenna Type: Build-in PCB patch space diversity antenna
Current Consumption:
Package: 3.3V CardBus
Certification:Radio: EU: ETS 300 328; USA: FCC Part 15C
EMC: EU ETS 300 826; USA: FCC Part 15B Safety: EN60950
Driver:Windows 98SE/2000/ME/XP

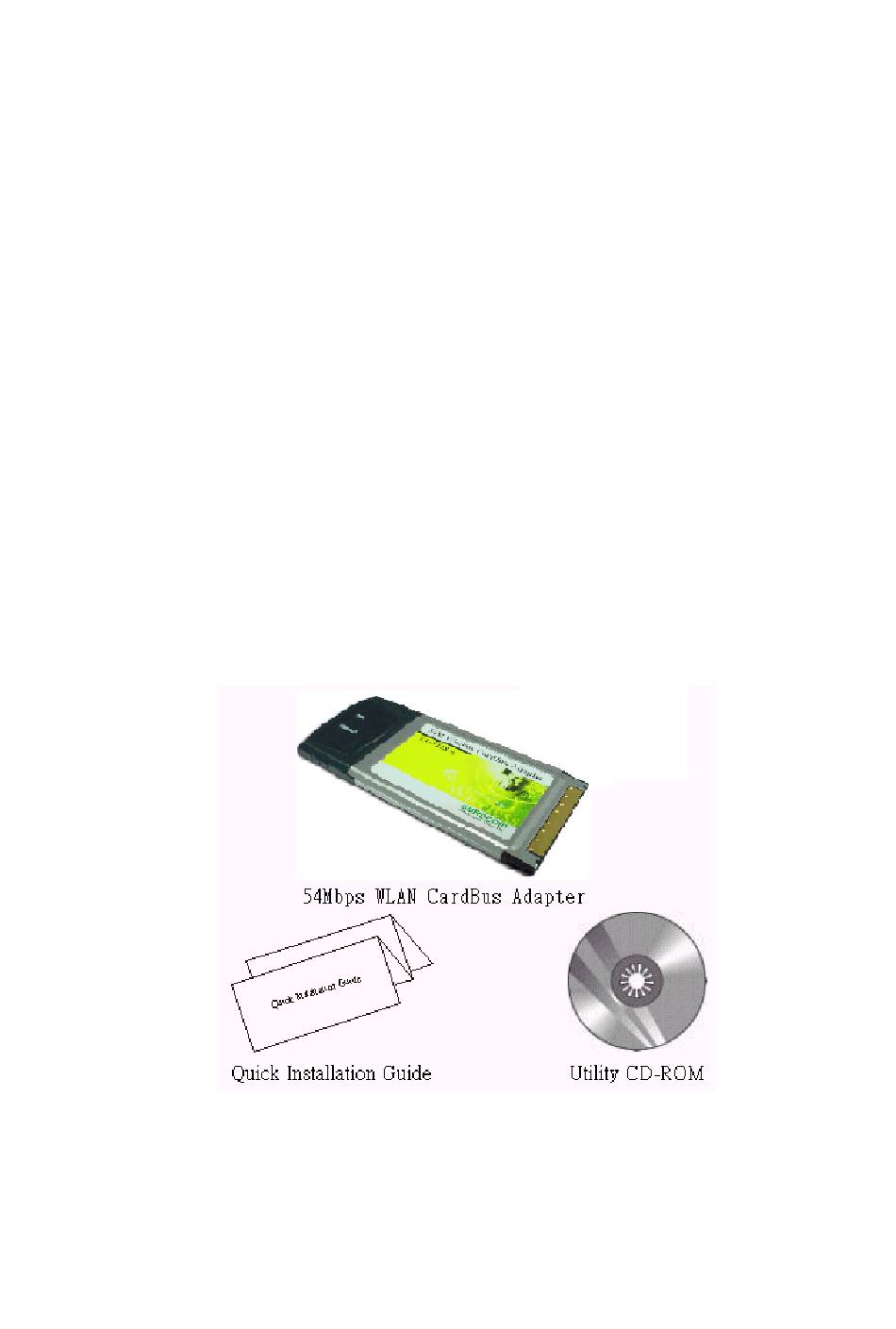

1.3 Package Contents

1.One 54Mbps WLAN CardBus Adapter.
2.One setup Utility CD-ROM (User Guide on CD).
3.Quick Installation Guide.
3.3V, Tx mode 400 mA (Max.) Rx mode 250 mA (Max.)
4
