Technical Specification

Standard: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX and USB ver.1.0/1.1/2.0
Date Transfer Rate: 10/100Mbps
Memory Size: 7*16bit
Media Support: 1 RJ-45 Ethernet connector & 1 USB Cable
LED Display: 10,100, FDX, Act.
Power: Bus power from USB host controller
Temperature: 0°C~45°C
Humidity: 10%~90%
Certification: FCC Class B, CE Mark Class B.

LED indicators

The LED indicators include Act.,10,100 and FDX.
Act.:
This LED indicator will light up when there is a secure connection in a USB2.0 Host Port.
The LED indicator will blink when the data is transferred or accepted.
10:
The LED lights means the EP-1427X is connecting to device in Ethernet network by
10Mbps transmission rate. When LED blinks, the data is transferring by 10Mbps.
100:
The LED lights means the EP-1427X is connecting to device in Ethernet network by
100Mbps transmission rate. When LED blinks, the data is transferring by 100Mbps.
FDX:
When the LED lights, the EP-1427X is working in Ethernet network by full-duplex mode.
When the LED off, the EP-1427X is working in Ethernet network by half-duplex mode.

Connectors

It consists of one RJ-45 and USB Cable.
RJ-45 Port: This port is used to connect an Ethernet network.
USB Cable: This cable is used to connect USB-equipped desktop PC / Notebook.

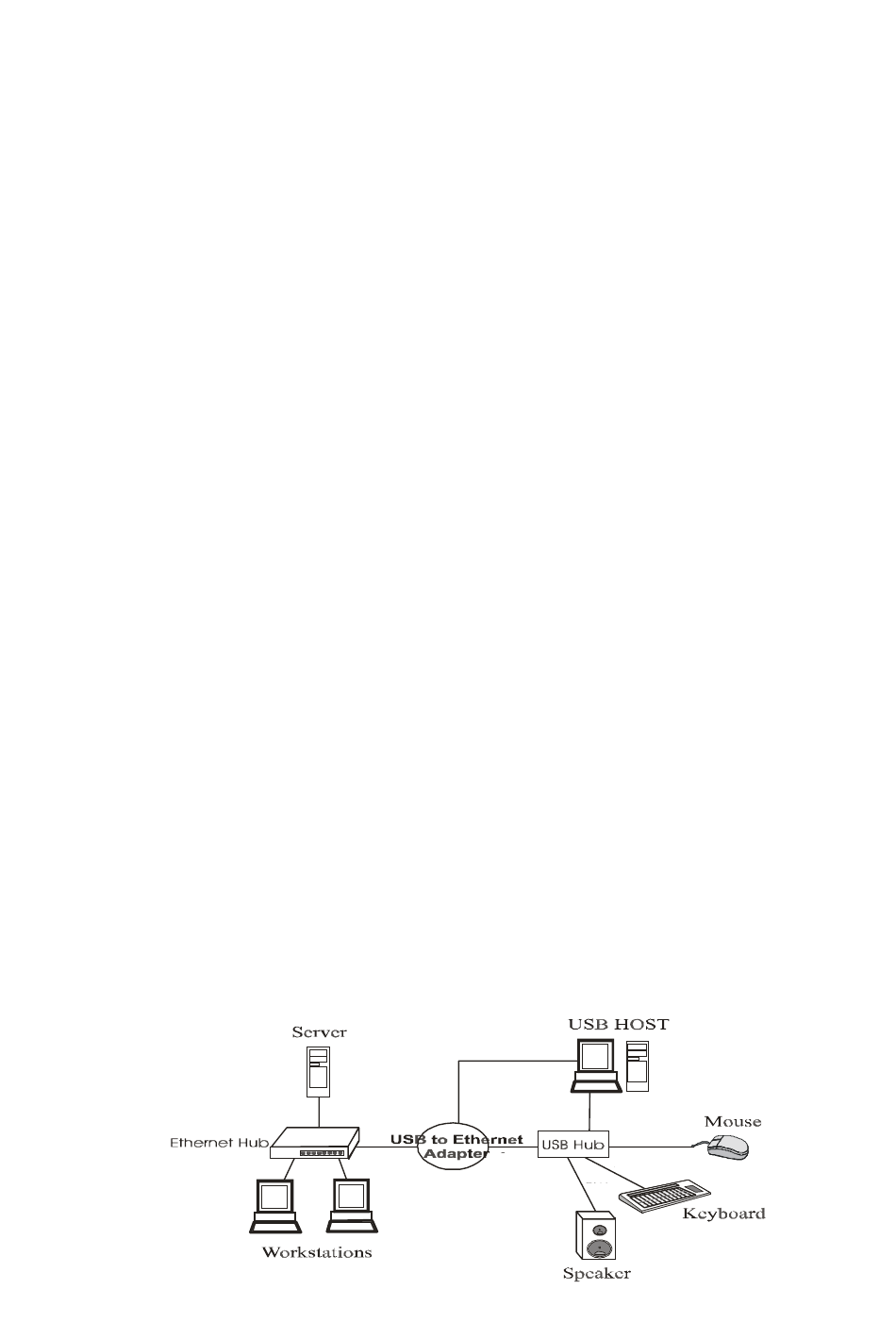

Application:
