Surecom 320G-TXL User Manual

EP-320G-TX/320G-TX1/320G-TXL
64/32-bit PCI 1000/100/10Mbps
Gigabit Ethernet Adapter
User's Guide
431320GTX1Z2
Introduction
This User's Guide is used for the 64/32-bit PCI
1000/100/10Mbps Gigabit Ethernet Adapter. It is
targeted at high performance adapter cards and
motherboards. It implements the PCI Rev. 2.1/2.2, 66/33
MHz, 64/32-bit PCI bus interface for host
communications with power management support.
Packet descriptors and data are transfered via bus-
mastering, reducing the burden on the host CPU. It is a
Full-Duplex adapter connected to an Ethernet net- work
with a single connection over unshielded twisted pair
(UTP) cable or fiber cable connection. It can auto-sense
either 10 Mbps or 100 Mbps or 1000 Mbps by full
auto-detection.
Features
*Compliant with PCI 2.1/2.2, 33/66MHz, 32bit/64bit
*Fully compliant with IEEE802.3, IEEE802.3u,
IEEE802.3x
*Supports data rates from 10 Mbps to 1000 Mbps
*Embedded with 32K cache buffer
*Supports wake-on-LAN and remote wake-up
* Fully compliant with Microsoft NDIS5 (IP, TCP, UDP)
Checksum and Segmentation Task-offload to lowering
CPU utilization
* Supports IEEE 802.1Q VLAN tagging
*Auto-Negotiation supported for Auto-Detect
10/100/1000Mbps data rate and Full/Half-Duplex operation
mode
* Supports ACPI, PCI power management

Package Contents

* One Gigabit Ethernet PCI Adapter
* Driver Diskette (Including this Manual)

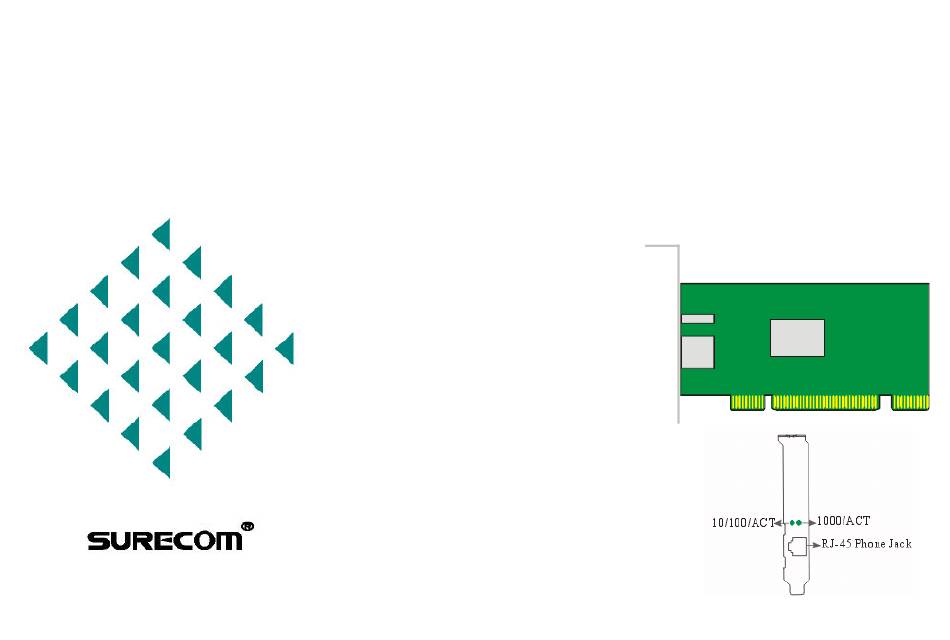

The Card Layout
LED
MAC
Phone
Jack
