Summary of Contents for Lincoln Electric INVERTEC V405
- Page 1 IM2006 05/2016 REV08 ® INVERTEC V205, V270 & V405 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...
- Page 2 EN 60974-1:2012, EN 60974-10:2014 (EN 60974-3:2014 only for –T/-TP) 20.04.2016 Piotr Spytek Operations Director Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland English English...
-
Page 3: Table Of Contents
12/05 12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 4: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. -
Page 5: Installation And Operator Instructions
EQUIPMENT WEIGHT OVER 30kg: Move this equipment with care and with the help of another person. Lifting may be dangerous for your physical health. CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used. - Page 6 TIG Welding (GTAW) Stick welding mode is used the Coolarc 20 will be OFF. This machine does not include a TIG torch necessary for TIG welding, but one may be purchased separately. If a Coolarc 30 is connected to a "V405-T / -TP", it Refer to the accessories section for more information.
- Page 7 When the mode switch is in the Stick position, the following welding features are enabled: -S: In the stick welding mode, the output of the machine is automatically turned ON. However, in the Lift TIG welding mode, the connection of a Hot Start: This is a temporary increase in the remote control determines if the output is ON or output current during the start of the stick...
- Page 8 output current from a minimum of 5A to a maximum of 100A. U. VRD LED's (enabled on Australian Machines only): This machine is provided by VRD (Voltage Hot Start (V -S only): In stick welding mode, this Reduction Device) function: this reduces the controls the amount of current used during the start voltage at the output leads.
- Page 9 If the Start current is not necessary, do not hold the recommended to contact the nearest technical service TIG torch trigger as described at the beginning of center or Lincoln Electric. Maintenance or repairs this step. In this condition, the machine will pass performed by unauthorized service centers or personnel from Step 1 to Step 2 when the arc is started.
-
Page 10: Electromagnetic Compatibility (Emc)
Electromagnetic Compatibility (EMC) 01/11 This machine has been designed in accordance with all relevant directives and standards. However, it may still generate electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine. -
Page 11: Technical Specifications
Technical Specifications V205 2V: INPUT Input Voltage Input Power at Rated Output EMC Class Frequency 230 / 400V 10% 5.5kW @ 100% Duty Cycle A group 2 50/60 Hz 6.5kW @ 35% Duty Cycle Single Phase RATED OUTPUT AT 40°C Duty Cycle Output Current Output Voltage... -
Page 12: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 13: Accessories
Accessories V205-TP Trigger Connector (5 pins). V270-T / -TP V405-TP W6100316R V205 Remote Connector (6 pins). V270 V405 W6100317R V205-TP Male Quick Connect Gas Fitting. V270-T / -TP V405-TP W8800072R V205 Hand Amptrol. V270 V405 K10095-1-15M V205-TP Foot Amptrol. V270-T / -TP V405-TP K870 English...
Need help?
Do you have a question about the INVERTEC V405 and is the answer not in the manual?
Questions and answers

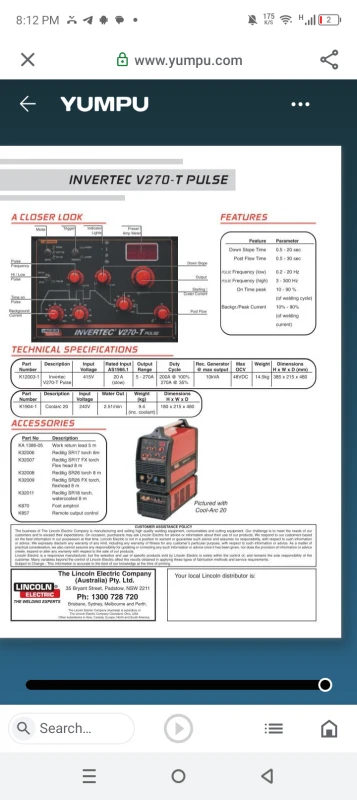

I have Lincoln v275 t pulse argon welder inverter I need it's service manual
