Mobility Sound BTH-300-F Quick Start Manual

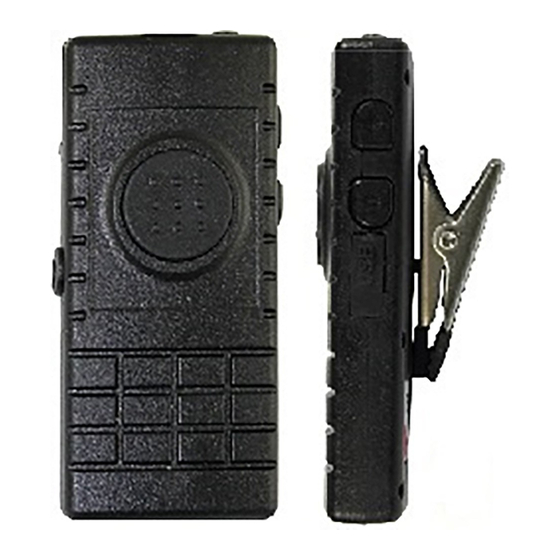

BTH-300-F

•Bluetooth earphone with PTT for walkie talkie

•Built in PTT function button, Cell phone answer

(reject) key, and Volume control button

•Embedded 3.5mm jack is compatible with

iPhone earphone and many other earphones.

•Long talk time, up to 10 hours.

Dimension: 65mm X 30mm X 12mm

Temp: -10℃±2℃ ~ 50℃±2℃

Approx. Weight: 21.6g (External earphone is

excluded)

• Fully Qualified Bluetooth v4.0.

• Echo cancellation, noise reduction and

extended features

• High Quality DAC

• 80MHz RISC MCU and 80MIPS Kalimba DSP

• SBC, MP3, AAC, Fast stream, APTX codec

support

• RoHS compliant

•

HSP, HFP, A2DP, AVRCP

profile supports

• PTT function: built-in

• Talking Range: Bluetooth class 2, 10 meters

• Display LED: Blue and Red

• Power: Max 4dB

• Sensitivity: -90dB

• DC Input: 5 Vdc (std.)

• Standby Current: 6mA

• Battery: 190mAH

• Standby Time: 50 hours

• Talk Time: 10 Hours

Table of Contents

Need help?

Do you have a question about the BTH-300-F and is the answer not in the manual?

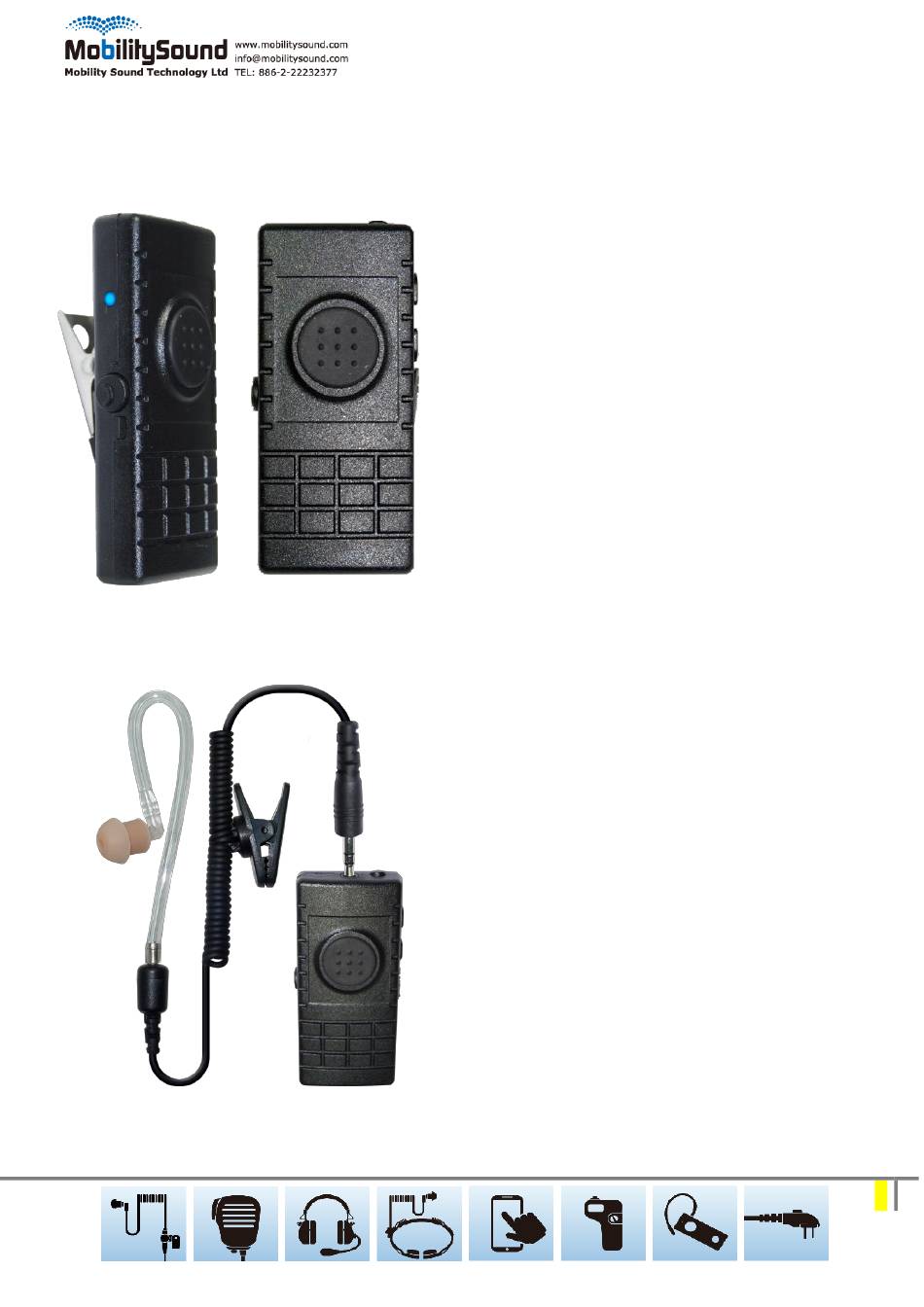

Page 1 BTH-300-F <Product Descriptions> •Bluetooth earphone with PTT for walkie talkie •Built in PTT function button, Cell phone answer (reject) key, and Volume control button •Embedded 3.5mm jack is compatible with iPhone earphone and many other earphones. •Long talk time, up to 10 hours.
Page 2 BTH-300...
Page 3 BTH-300 BTH-300 State and LED Flashing Pattern BTH-300 linked with cell phone Press the TALK/END key Blue LED flashes once every 6 If paired with iPhone, this seconds will start/stop the music playing Music is playing, press the Adjust the music volume of volume keys smart phone Music playing, double press...
Page 4 BTH-300 BTH-300 External Audio Accessory (Optional) 300-EP31 300-EP51 300-EP65 300-EP66 300-EP67...
Page 5 BTH-300 Pair BTH-300 with smart phone 1. Make sure BTH-300 is OFF, and press power switch and hold for 6 seconds 2. BTH-300 is under pairing mode when you see RED-BLUE-RED-BLUE LED flashing. 3. Start Bluetooth function on your smart phone. 4.
Page 6 BTH-300 Pair BTH-300 with dongle 1. Make sure both of dongle and BTH-300 are in off 2. Press and keep holding the PTT button on the dongle, and then switch on radio and wait for few minutes 3. When you see 2 Blue LED flashes per second, release the PTT button. BT dongle is in pairing mode.
