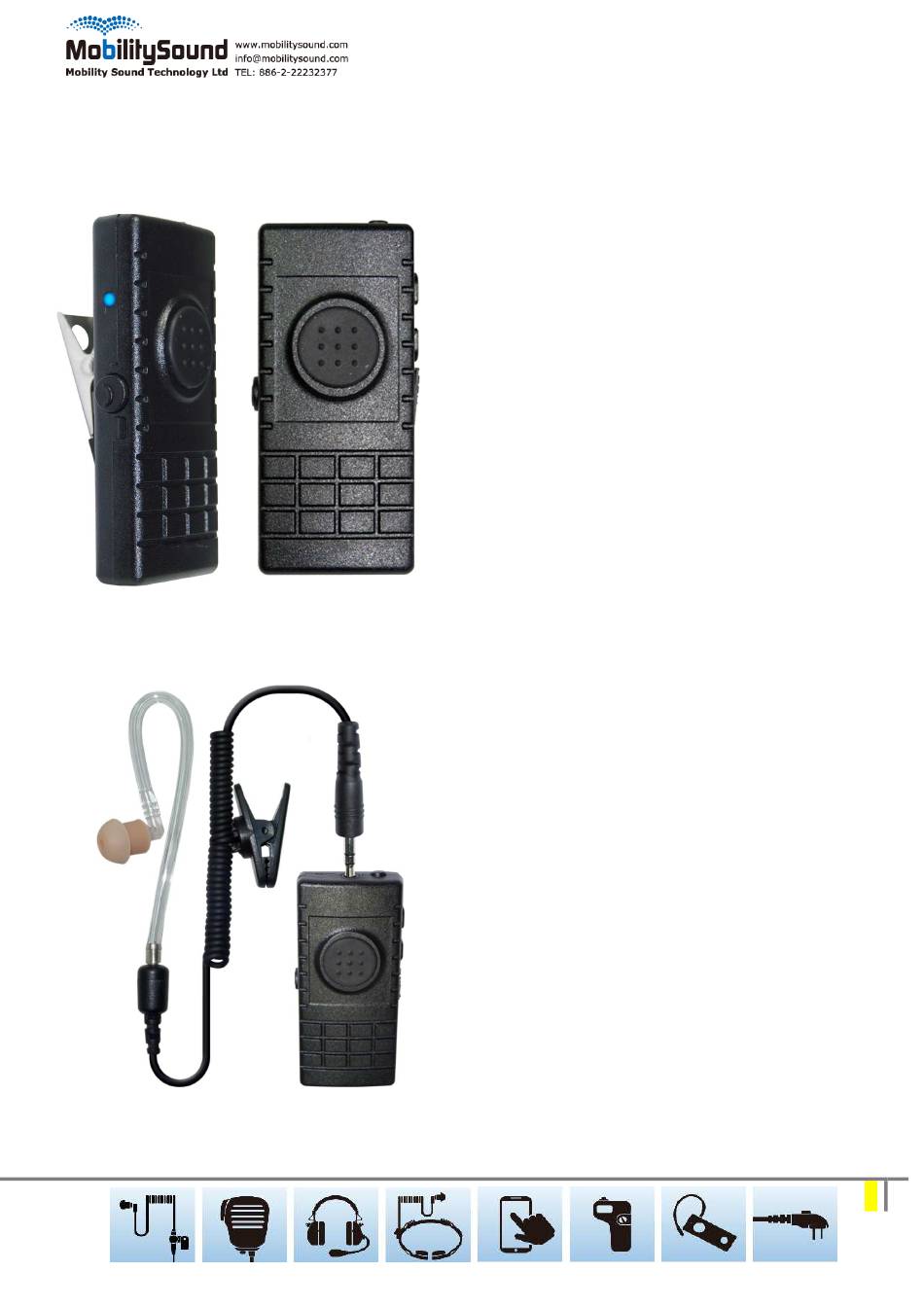

BTH-300-R5
<Product Descriptions>
•Bluetooth earphone with PTT for walkie talkie
ICOM,Kenwood,BT dongles
•Built in PTT function button and Volume
control button
•Embedded 3.5mm jack is compatible with
iPhone earphone and many other earphones.
•Long talk time, up to 10 hours.
<Specification>
Dimension: 65mm X 30mm X 12mm
Temp: -10℃±2℃ ~ 50℃±2℃
Approx. Weight: 21.6g (External earphone is
excluded)
• Fully Qualified Bluetooth v4.1.
• Echo cancellation, noise reduction and
extended features
• High Quality DAC
• 80MHz RISC MCU and 80MIPS Kalimba DSP
• SBC, MP3, AAC, Fast stream, APTX codec
support
• RoHS compliant
•
HFP
profile supports
• PTT function: built-in
• Talking Range: Bluetooth class 2, 10 meters
• Display LED: Blue and Red
• Power: Max 4dB
• Sensitivity: -90dB
• DC Input: 5 Vdc (std.)
• Standby Current: 6mA
• Battery: 190mAH
• Standby Time: 50 hours
• Talk Time: 10 Hours
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTH-300-R5 and is the answer not in the manual?

Questions and answers

Related Manuals for Mobility Sound BTH-300-R5

Summary of Contents for Mobility Sound BTH-300-R5

  • Page 1: Product Descriptions

    BTH-300-R5 <Product Descriptions> •Bluetooth earphone with PTT for walkie talkie ICOM,Kenwood,BT dongles •Built in PTT function button and Volume control button •Embedded 3.5mm jack is compatible with iPhone earphone and many other earphones. •Long talk time, up to 10 hours.
  • Page 2 4.LED 5.Connection Key...
  • Page 3 How to use PIO state statement Power S/W long held( >= 1sec) Device on Power S/W long held( >= 2.5sec) Device off Power S/W long press >6sec Enter pairing mode from power off Connection key short press Connection (Kenwood only) VOL+ short press Volume up...
  • Page 4 BTH-300 External Audio Accessory (Optional) 300-EP31 300-EP51 300-EP65 300-EP66 300-EP67...
  • Page 5 3. Start Bluetooth function on your smart phone. 4. After you hearing connect sound, press Connection Key button once.(Kenwood only) 5. Pairing process is completed. NOTE The BTH-300-R5 only for one radio. When you paired with new radio the old one will be erased.
