Mobility Sound BTH-300-AZ Quick Start Manual

Download this manual

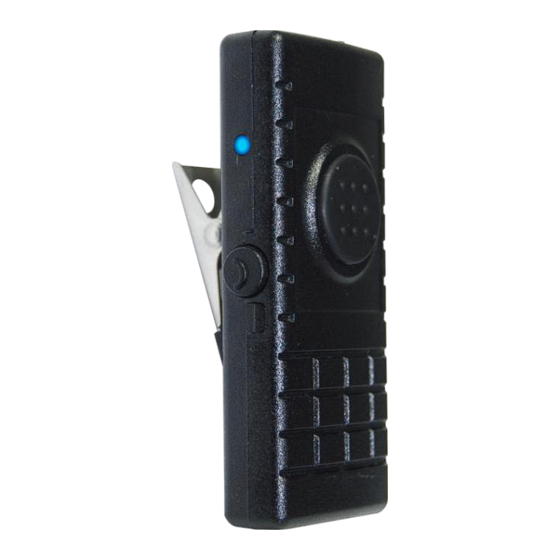

BTH-300-AZ

•Bluetooth earphone with PTT for Zello iOS and

Android

•Built in PTT function button, Cell phone answer

(reject) key, and Volume control button

•Embedded 3.5mm jack is compatible with

iPhone earphone and many other earphones.

•Long talk time, up to 10 hours.

Dimension: 65mm X 30mm X 12mm

Temp: -10℃±2℃ ~ 50℃±2℃

Approx. Weight: 21.6g (External earphone is

excluded)

• Fully Qualified Bluetooth v4.0.

• Echo cancellation, noise reduction and

extended features

• High Quality DAC

• 80MHz RISC MCU and 80MIPS Kalimba DSP

• SBC, MP3, AAC, Fast stream, APTX codec

support

• RoHS compliant

•

HSP, HFP, A2DP, AVRCP

profile supports

• PTT function: built-in

• Talking Range: Bluetooth class 2, 10 meters

• Display LED: Blue and Red

• Power: Max 4dB

• Sensitivity: -90dB

• DC Input: 5 Vdc (std.)

• Standby Current: 6mA

• Battery: 190mAH

• Standby Time: 50 hours

• Talk Time: 10 Hours

Need help?

Do you have a question about the BTH-300-AZ and is the answer not in the manual?

Page 1 BTH-300-AZ <Product Descriptions> •Bluetooth earphone with PTT for Zello iOS and Android •Built in PTT function button, Cell phone answer (reject) key, and Volume control button •Embedded 3.5mm jack is compatible with iPhone earphone and many other earphones. •Long talk time, up to 10 hours.
Page 2 BTH-300-AZ...
Page 3 BTH-300-AZ BTH-300-AZ State and LED Flashing Pattern BTH-300 linked with cell phone Standby 3 flashes per 3 second Standby Press Talk/ END key when <Nil> If paired with iPhone, this will there is no incoming call start/stop the music playing...
Page 4 BTH-300-AZ BTH-300-AZ External Audio Accessory (Optional)
Page 5 2. BTH-300 is under pairing mode when you see RED-BLUE-RED-BLUE LED flashing. 3. Start Bluetooth function on your smart phone. 4. Find the device name “BTH-300-AZ” under Bluetooth column and connect it. 5. Start Zello, go to options, tap Push To Talk buttons, tap Wireless Zello button, start Wireless button service, and then find the device PTT-Z and connect it.
Page 6 BTH-300-AZ BTH-300-AZ Pairing Process for Zello Android 1. Make sure BTH-300-AZ is OFF, and press power switch and hold for 6 seconds 2. BTH-300-AZ is under pairing mode when you see the LED flashing RED and BLUE alternatively. 3. Start Bluetooth function on your smart phone.
