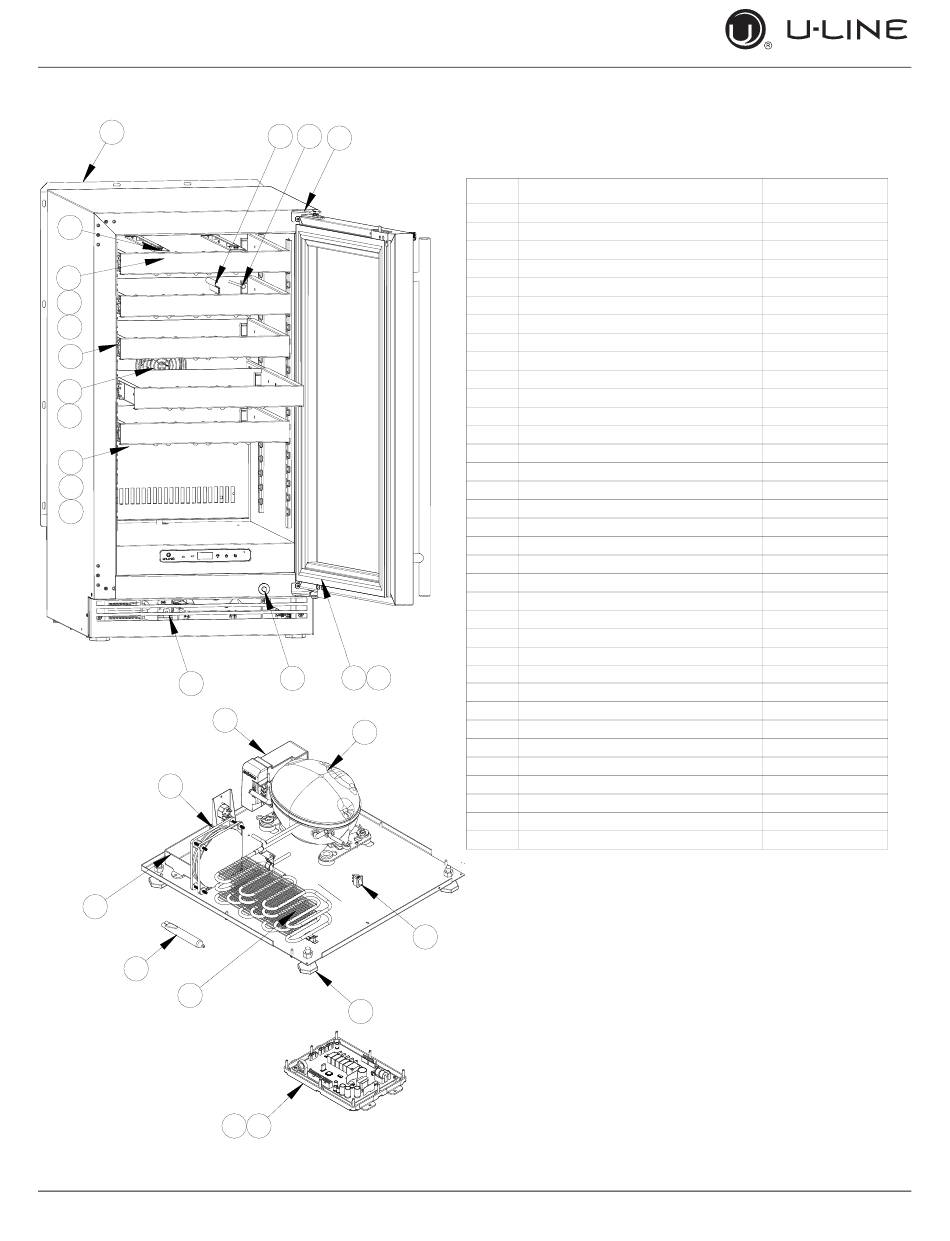

Parts
3
20
30
31
32
27
14
15
12
13
9
17
6
8
10
5
Parts
29 28
18
23 7 16
26
4
2
11 21
UCWC518-SG33A
Item
1 ANTI-TIP BRACKETS W/SCREWS *
2 LEG LEVELERS (4) 3/8"-16
3 BACK PANEL, 518 NSF
4 COMPRESSOR 5 CLASS
5 CONDENSER ASSY 5 CLASS
6 CONDENSER FAN W/SCREWS
7 DOOR, 18" SG W/HINGES & LOCK
8 DRAIN PAN
9 DRAIN TROUGH 5 CLASS 18"
10 DRIER
11 ENCLOSURE ASSEMBLY, BOARD
12 EVAP ASSY, 5 CLASS 18"
13 EVAPORATOR COVER, 18"
14 EVAPORATOR FAN
15 EVAPORATOR FAN COVER W/SCREWS
16 GASKET, DOOR 18" NSF
17 GRILLE, 18" 5 CLASS
18 HINGE ASSEMBLY, NSF
19 HI TEMP THERMISTOR *
20 LIGHT ASM, 2 COLOR
21 MAIN BOARD/DISPLAY ASSEMBLY
22 PACKAGING *
23 PLUNGER SWITCH, NUGGET
24 POWER CORD, EXTERNAL *
25 ROCKER SWITCH
26 SERIAL INVERTER
27 SLIDE ASSEMBLY
28 THERMISTOR (1 PC)
29 THERMISTOR COVER, 5 CLASS
30 WINE RACK, 18" 5 CLASS
31 WINE RACK FRONT 18" 5 CLASS
32 WINE RACK W/RAILS 18" 5 CLASS
33 WIRE HARNESS, HI VOLTAGE *
34 WIRE HARNESS, LOW VOLTAGE *
* NOT PICTURED
