Summary of Contents for Finlux FL5030FSWK

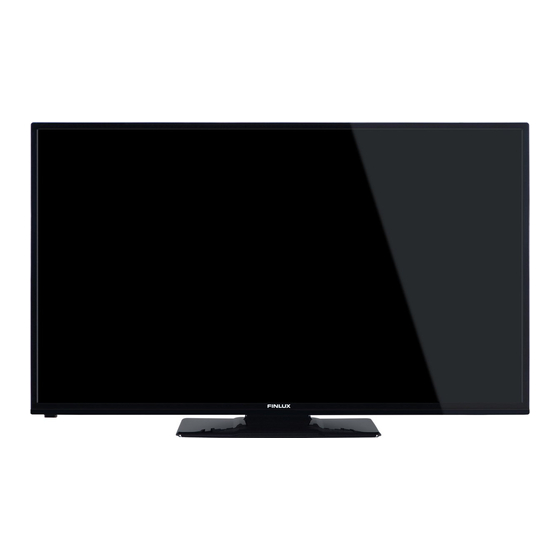

- Page 1 Kleurentelevisie Colour television Télévision en couleur FL5030FSWK De handleiding Owner’s manual Manuel d'utilisateur...
- Page 2 Quick Start Guide Insert the batteries into the Remote Control Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover. REAR SIDE OF THE TV Connect the antenna to your TV Aerial Cable Connect the TV to the mains socket...
- Page 3 HDMI input PLEASE ENSURE BOTH UNITS ARE SWITCHED OFF BEFORE CONNECTING. Use a HDMI to HDMI cable to connect the two units together. To select the HDMI input, To HDMI connection SOURCE SOURCE on the device press the Source button on the remote control. Each time it is pressed the on-screen menu confirms your selection.
- Page 4 Connect your TV to the Internet Connectivity feature allows you to connect your TV to the home network wired or wirelessly. You can use this networking system to connect to the Portal or to access photo, video and audio files that are stored on a Media server connected to the network and play/display them on the TV.
-
Page 5: Table Of Contents
Contents Safety Information Safety Information ..........30 Markings on the Product........31 CAUTION Environmental Information........32 RISK OF ELECTRIC SHOCK Features ...............32 DO NOT OPEN Accessories Included..........32 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO Standby Notifications ..........32 NOT REMOVE COVER (OR BACK). TV Control Switch &... -
Page 6: Markings On The Product
• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set. WARNING • Do not place the TV on the floor and inclined Do not ingest the battery, Chemical Burn Hazard surfaces. This product or the accessories supplied with the •... -
Page 7: Environmental Information
Note: Screen Off option is not available if the Mode is set to Game. When the TV is not in use, please switch off or WALL MOUNTING WARNINGS disconnect the TV from the mains plug. This will also reduce energy consumption. •... -
Page 8: Tv Control Switch & Operation
mode automatically because there was no signal Input Selection for a long time.” Press OK to continue. Once you have connected external systems to your TV, you can switch to different input sources. Press the If the TV is on and it isn’t being operated for a while Source button on your remote control consecutively it will go into standby. -
Page 9: Notification
Information for Users on Disposal of Old Notification Equipment and Batteries TRADEMARK ACKNOWLEDGMENT [European Union only] The terms HDMI and High-Definition Multimedia Equipment bearing these symbols should not be Interface, and the HDMI Logo are trademarks disposed as general household waste. or registered trademarks of HDMI Licensing Administrator, inc. - Page 10 Wireless LAN Transmitter Specifications Specification Max Output Frequency Ranges PAL BG/DK/II’ Power TV Broadcasting SECAM BG/DK 2400 - 2483,5 MHz (CH1-CH13) < 100 mW VHF (BAND I/III) - UHF Receiving Channels 5150 - 5250 MHz (CH36 - CH48) < 200 mW (BAND U) - HYPERBAND 5250 - 5350 MHz (CH52 - CH64) <...
-
Page 11: Remote Control
Remote Control Standby: Switches On / Off the TV Netflix: Launches the Netflix application Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen. TV: Displays channel list / Switches to TV Source Back/Return: Returns to previous screen, opens index page (in TXT mode) .,/@... -
Page 12: Connections
Connections NOTE: When connecting a device via the YPbPr or Side Connector Type Cables Device AV input, you must use the Scart connection cables to enable Connection connection. See the illustrations (back) on the left side. | You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. -
Page 13: Switching On/Off
channels of it will be listed on the top of the Channel Switching On/Off List. When finished, press OK to continue. To Switch the TV On You can activate Store Mode option at this point. Connect the power cord to a power source such as a This option will configure your TV’s settings for store wall socket (220-240V AC, 50 Hz). -
Page 14: Recording A Programme
Wait a little while before each plugging and unplugging Record, Play, Pause, Display (for PlayListDialog) keys as the player may still be reading files. Failure to do can not be used when teletext is on. If a recording starts so may cause physical damage to the USB player from timer when teletext is on, teletext is automatically and the USB device itself. -
Page 15: Media Browser Menu
The TV remote is automatically able to perform the selection) during the First Time Installation use the PIN that you have defined. main functions after the connected HDMI source has been selected. IMPORTANT: Formatting your USB drive will erase ALL the data on it and it’s file system will be converted To terminate this operation and control the TV via to FAT32. - Page 16 TV Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen.
- Page 17 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 18 Menu Timeout Changes timeout duration for menu screens. Standby LED If set as Off, the standby LED will not light up when the TV is in standby mode. Software Ensures that your TV has the latest firmware. Press OK to see the menu options. Upgrade Application Displays current software version.
-
Page 19: General Tv Operation
Child Lock: If this option is set to ON, the TV can only General TV Operation be controlled by the remote control. In this case the Using the Channel List control buttons on the TV will not work. The TV sorts all stored stations in the Channel List. Internet Lock: If this option is set to ON, the open You can edit this channel list, set favourites or set browser application in the portal will be disabled. -
Page 20: Teletext Services
Next/Prev Day (Programme +/- buttons): Displays Teletext Services the events of previous or next day. Press the Text button to enter. Press again to activate Event Details (Info button): Displays detailed mix mode, which allows you to see the teletext page and information about selected events. -
Page 21: Pc Input Typical Display Modes
• The picture quality may degrade when two devices PC Input Typical Display Modes are connected to the TV at the same time. In such The following table is an illustration of some of the a case, disconnect one of the devices. typical video display modes. -
Page 22: Av And Hdmi Signal Compatibility
AV and HDMI Signal Compatibility Source Supported Signals Available SECAM NTSC4.43 (SCART) NTSC3.58 RGB 50/60 SECAM Side AV NTSC4.43 NTSC3.58 480i, 480p 60Hz 576i, 576p 50Hz YPbPr 720p 50Hz,60Hz 1080i 50Hz,60Hz 480i, 480p 60Hz 576i, 576p 50Hz 720p 50Hz,60Hz 1080i 50Hz,60Hz HDMI 24Hz,... -
Page 23: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Extension Video Codec SPEC (Resolution) & Bit Rate .dat, vob MPEG1/2 1080P@30fps - 40 Mbps MPEG1/2, .mpg, .mpeg MPEG4 MPEG1/2, H.264, H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC: .ts, .trp, .tp AVS, MVC 1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps .mp4, .mov,... -
Page 24: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps .mp3, MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3... -
Page 25: Supported Subtitle File Formats For Usb Mode
Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps .wav LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM, 384Kbps 8KHz ~ 48KHz MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer3... -
Page 26: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 56Hz 60Hz 66Hz 70Hz 72Hz 75Hz 640x400 þ 640x480 þ þ þ... - Page 27 and display the result when complete. Connectivity Advanced Settings Highlight Advanced Settings and press the OK Wired Connectivity button. On the next screen you can change the IP To Connect to a Wired Network and DNS settings of the TV. Highlight the desired one •...
- Page 28 • The location where the transmission is most effective • If the connection is established correctly, you will be differs depending on the usage environment. able to access the shared files from your mobile device via the Media Browser of your TV. •...
- Page 29 Connection is Slow 2. Connect to a Wired or Wireless Network See the Wired/Wireless Connectivity chapters for See the instruction book of your wireless modem to detailed configuration information. get information on the internal service area, connection speed, signal quality and other settings. You need to 3.
-
Page 30: Internet Browser
To add a desired website to the Speed Dial list for Internet Portal quick access, move the cursor to the top of the page HINT: A broadband internet connection is required or press the Back/Return button. The browser bar for high quality viewing. You must set the country will appear. -
Page 31: Smart Center
/ refreshing the EPG information may take a while Smart Center depending on your network and web service quality. Smart Center is a mobile application running on iOS Note: Internet connection is required for WEB based EPG and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and informations. - Page 32 FollowMe TV Feature (if available) Requirements 1. Smart TV Tap on the FOLLOW ME TV widget located at the bottom left of the screen of your mobile device to 2. Network connection change the layout for FollowMe TV feature. 3. Mobile Device based on Android or iOS platform (Android OS 4.0 or higher;...
- Page 33 www.elmarc.eu 50421930...
