SPEAKER INSTALLATION
The unique integral four-foot mounting system incorporated
into each LCR Ceiling speaker allows for a quick installation by
following these easy steps:
1. Remove the grille. It may be necessary to push one or two
of the mounting screws and its attached foot towards the
baffle and against the inside surface of the grille to force the
grille out of its retaining groove.
2. Attach the speaker cable (observing the proper polarity with
your amplifier, + to + and – to –). Make sure the left channel
of the amplifier is connected to the left speaker, the right
channel is connected to the right speaker, etc.
3. Make sure the mounting feet are turned inward to clear the
opening, and insert the speaker into the ceiling. Position the
speaker into the hole.
SPEAKER ADJUSTMENTS
The LCR Ceiling Series speakers come from the factory with
the tweeter facing straight out from the baffle. This will result
in the overall smoothest response. However, depending on
your particular primary listening area, room acoustics, ceiling
height, or personal preference, you may find the sound more
pleasing by pointing the tweeters in a particular direction. If
additional treble is desired in the primary listening area, point
the tweeter towards that area; and if less treble is required,
point the tweeter away. Push gently at the edge of the tweeter
to point it in the desired direction. (See Diagram 3)
PAINTING THE SPEAKERS
If you plan to paint your speakers, we recommend that it be
done prior to installation. If you plan to paint your speakers
sometime in the future, it is best to remove them by simply
reversing the steps for "SPEAKER INSTALLATION" above.
Before painting your speakers, install the included paint mask
in place of the grille.
Before painting the grilles, remove the white acoustic
blanket under the grille.
Note: The flange of the speaker is designed to flex and conform
to any small imperfections in the ceiling's surface. Tighten the
four screws on the front of the baffle only enough to make the
flange become snug against the ceiling. As you tighten the
screws, the feet will automatically flip into an outward position
(See Diagram 2), thereby clamping the drywall between the feet
and the flange. CAUTION: Over-tightening may warp the
baffle, crack the ceiling, cause the flange to distort, and
make the grille difficult to install.
4. Push the grille firmly into the slot in the speaker baffle.
Diagram 3:
Tweeter
Once the speakers have been painted, return the acoustic
blanket back into place.
Great care should be taken not to clog the holes of the grille,
as this will reduce the sound quality of the speakers.
Proficient recommends only light spray painting using 5 parts
thinning agent to 1 part paint.
2

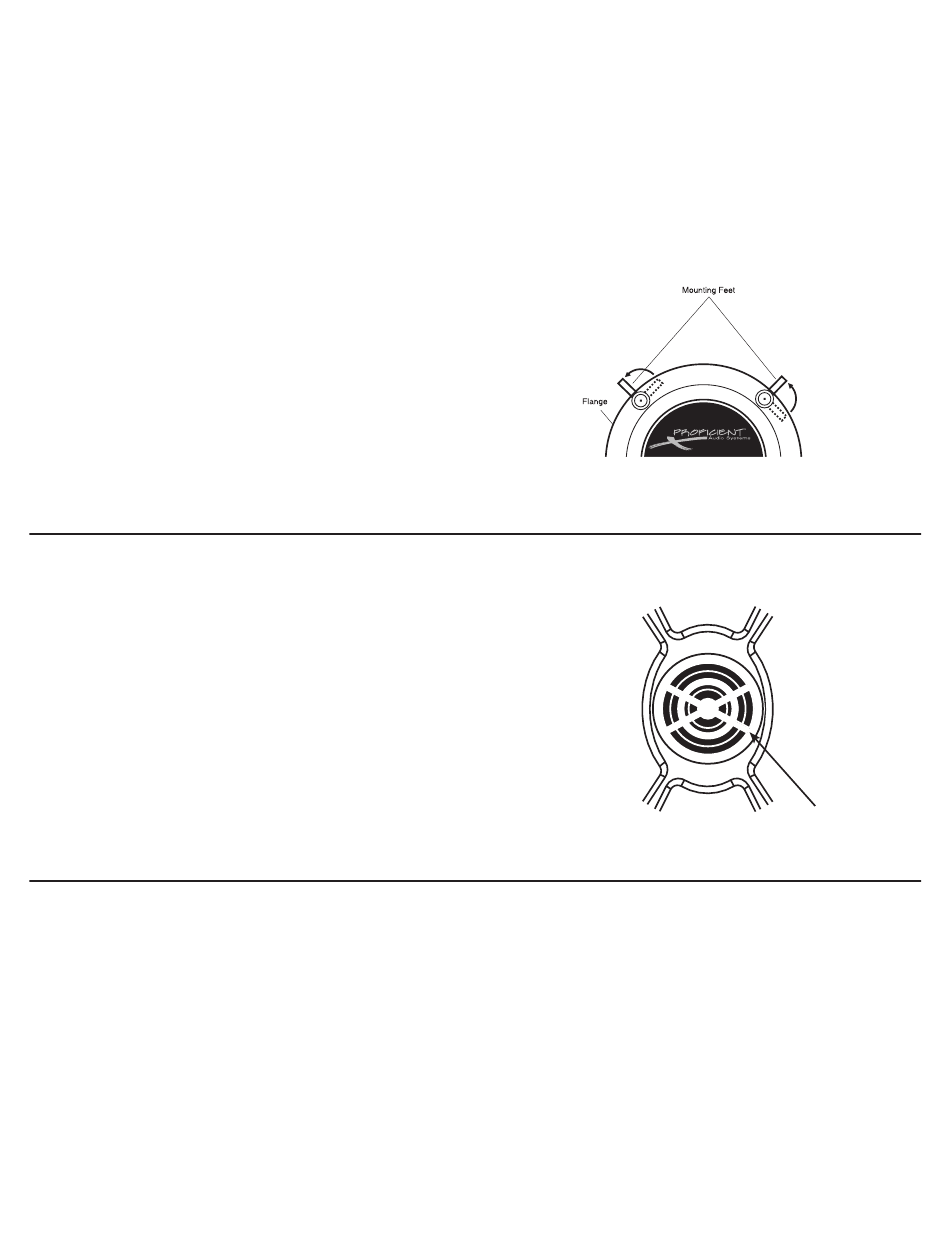

Diagram 2:
Mounting Feet
Push Tweeter Here
