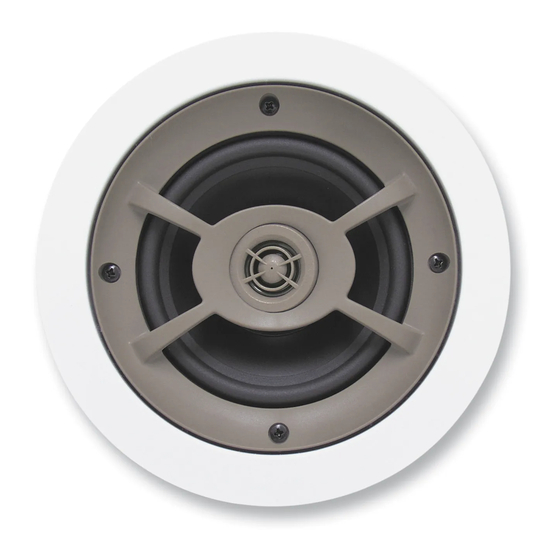

Proficient Audio Systems C500 Owner's Manual

CEILING SPEAKERS
C500 • C605 • C610 • C620 • C640
SPEAKER PLACEMENT
Before installing your speakers, you should consider their
placement carefully, taking into account the location of
electrical, plumbing and other fixtures. Contact your Dealer
for assistance if you are unsure of the best location for your
particular listening environment.
Placement In Ceiling: When placing your speakers into the
ceiling, they should ideally be located above the primary lis-
tening area. If the speakers are positioned far away from the
primary listening area, adjust the pivoting tweeters so they are
pointed towards it.
MOUNTING SURFACE PREPARATION
New Construction - Unfinished Ceilings
A Pre-Construction Bracket, available from your Dealer, may
be installed prior to drywall application across joists (up to
24" on-center) where a speaker will be located. After the hole
is cut and the drywall is installed, the speakers are then easily
installed following the instructions for mounting in "Finished
Ceilings" below. Note: If the speakers are to be mounted more
than 24" on-center, a special "Extra Long Wing" is available from
your Dealer.
Finished Ceilings
Prior to the actual installation of the speakers, it will be neces-
sary to run cables to the speaker locations. See your Dealer for
more information about cable installation. After the cable has
been properly installed, you are ready to mount the speakers.
Following the simple steps listed below will result in a profes-
sional looking installation:
1. Determine the best area to mount your speakers. This area
of the ceiling should be free of obstructions such as electri-
cal conduit, HVAC ducts, or water lines. This can best be
determined by noting the placement of fixtures and gaining
access to an attic or crawl space for further analysis of the
location of such obstacles.
2. Find the joists nearest the desired speaker mounting loca-
tion. We highly recommend using a good stud-finder tool
for this procedure. If you are lining up the speakers to some
other object or molding in the room, make sure you con-
sider the size of the baffle flange which extends beyond the
mounting hole.
Audio Systems
OWNER'S MANUAL
C645 • C790 • C800 • C850
Note: To avoid possible damage to the pivoting tweeters, read the
section entitled "SPEAKER ADJUSTMENTS" in this manual prior to
performing the tweeter adjustment.
In a very large room with high ceilings, it may be necessary to
place additional speakers throughout the room. Contact your
Proficient Audio Systems Dealer for assistance.
3. Mark the hole. A template for setting the hole is provided
in the box (along with two paint mask inserts for use when
painting). Position the template in the desired position and
pencil an outline on the ceiling.
4. Cutting the hole. CAUTION: This is the most important part
of the entire installation. If you are not certain whether any
obstructions exist behind the desired mounting area, you
should start by cutting a small hole in the center of your
penciled mounting hole with a drywall saw, cutting at a 45˚
angle towards the inside of the hole. (See Diagram 1) Cutting
the small hole at this angle will make drywall repair much
easier, using the piece cut out. Once you have determined
that there aren't any obstructions in your desired mounting
location, start cutting the finished hole at a 90˚ angle to the
ceiling surface.
5. Add insulation. If the area in the ceiling is not already
insulated, add an adequate amount insulation material to
loosely cover the back of the speaker. If the insulation mate-
rial used is faced with foil or paper, position the foil or paper
away from the speaker.

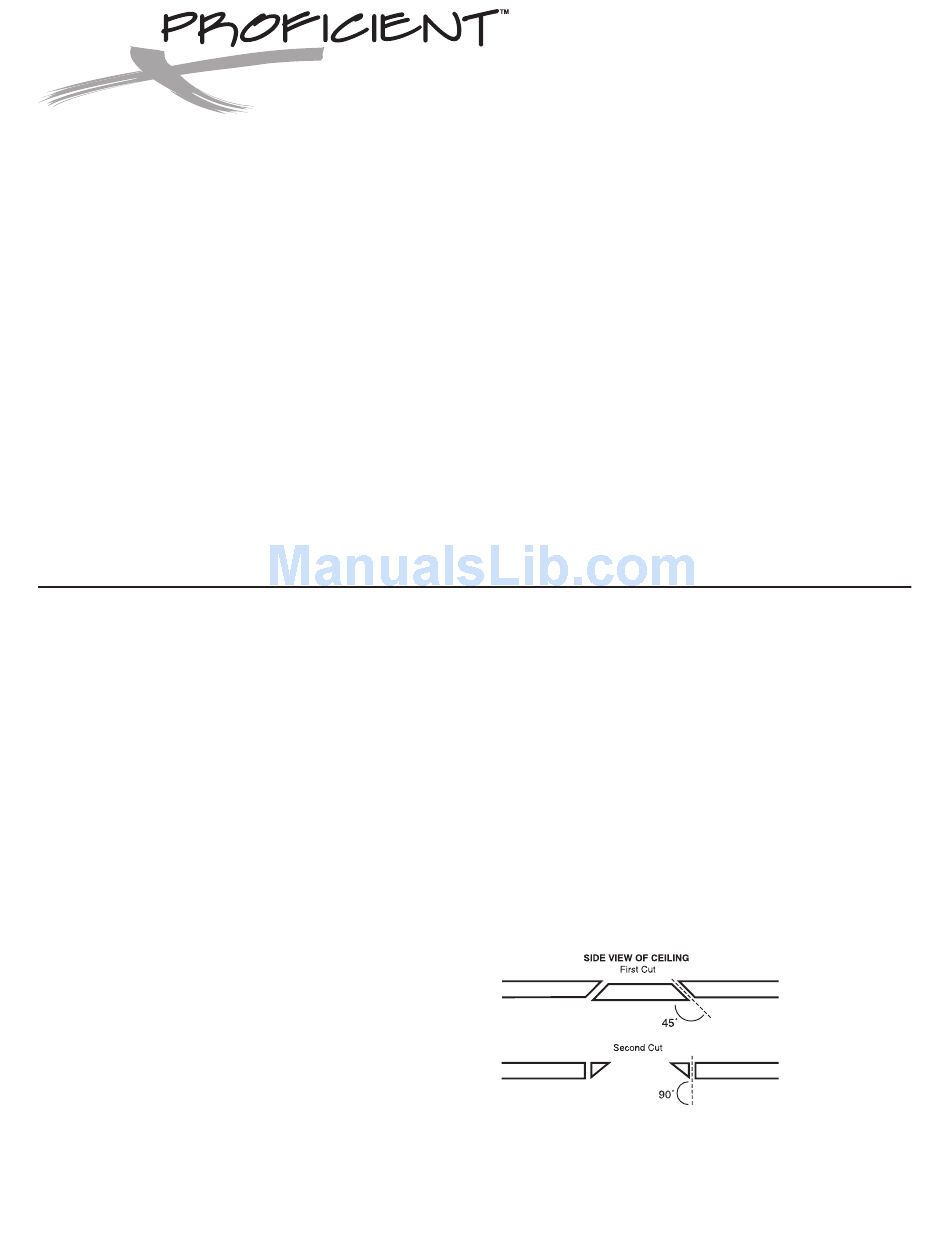

Diagram 1:
Ceiling Cut Out
