Page 1 Air Nailer – Finish Nailer Model No.:T64C OPERATING INSTRUCTIONS FOR FASTENER DRIVING TOOLS RHF9021RA OPERATED BY COMPRESSED AIR IMPORTANT: Read all safety rules and operating Instructions carefully before first use it. Keep this Manual for future reference. Content 1 Technical data 2.7 Actuating systems...

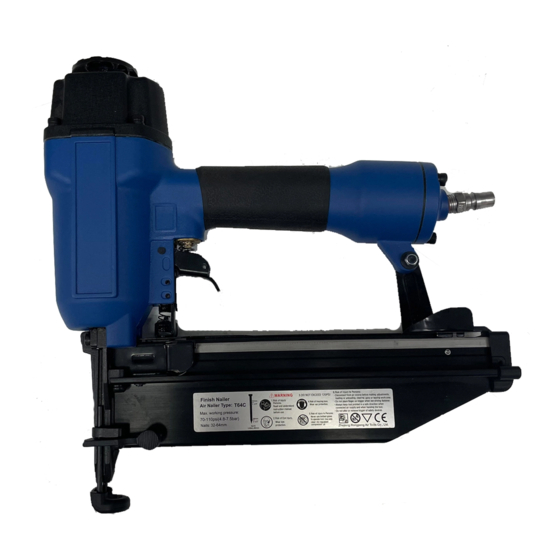

Page 2 1.3 Description/Features RONGPENG T64C FINISH NAILER: Innovative design with light weight, Easily open magazine latch for fast loading by one hand , Continuous operation for high efficiency , Heat treated air inlet plug prolonged the life. The tool can be used for the purposes listed below: Decorative finish and trim (interior and exterior);...
Page 3 for the maintenance of fastener driving tools, only spare parts specified by the manufacturer or his authorized representative shall be used; repairs shall be carried out only by agents authorized by the manufacturer or by other specialists, having due regard to the information given in the operating instructions; NOTE: Specialists are those who, as a result by professional training or experience, have sufficient expertise in the field of fastener driving tools and sufficient familiarity with relevant govemmental industrial protection provisions, accident prevention regulations, directives and generally recognized technical regulations(e.g.
Page 4 actuated. Take conditions at the workplace into account. Fasteners can penetrate thin work pieces or slip off corners and edges of workplaces, and thus put people at risk. For personal safety, use protective equipment such ad hearing and eye protection (see fig 2) IMPORTANT: DO NOT direct the adjustable vent hole to the operator or other person or animals during the use.
Page 5 otherwise develop in the compressed air system and in the fastener driving tool. Which serves to accelerate wear? The compressor plant shall be adequately dimensioned in terms of pressure output and performance (volumetric flow) for the consumption which is to be expected. Line sections which are too small in relation to the length of the line (pipes and hoses), as well as overloading the compressor, will result in pressure drops.
Page 6 4.4 Handling the tool Pay attention to 2-Special Reference-of these operating instructions. Having checked that the fastener driving tool is functioning correctly, apply the tool to a work piece and actuate the trigger. Check whether the fastener has been driven into the work piece in accordance with the requirements. - if the fastener is protruding, increase the air pressure in increments of 0.5 bar, checking the result after each new adjustment;...
Page 7 6 Troubleshooting (See Table 1) SYMPTOM PROBLEM SOLUTIONS Air leak near top of 1. O-ring in trigger valve is damaged. 1. Check and replace O-ring. tool or in trigger area 2. Trigger valve head are damage. 2. Check and replace. 3.
Page 8 Issue date: Explosive View and Parts list Version no.: Description Description Qty. No. Qty. No. Description Description Qty. No. Qty. Bolt Gun Body Coil spring Steel ball Dw=2 Air Deflector O-ring 11.7*2.4 Snap retainer 6 Pusher O-ring 9*1.8 O-ring 13*1.5 Compressed Spring Magazine washer Bumper Washer...
