- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Electric Range Series RN8610E RNL8610E RNB8610E RNLB8610E RN8610EC RNL8610EC RNB8610EC RNLB8610EC Date Purchased Serial Number...
- Page 2 The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing by the manufacturer. In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and design without prior notice.
-
Page 3: Table Of Contents
Contents Waldorf Electric Ranges Convection / Static Ovens - 900 mm RN(L)(B)610E Electric Range Static Oven. RN(L)(B)8613E Electric Range Static Oven. RN(L)(B)8616E Electric Range Static Oven. RN(L)(B)8619E Electric Range Static Oven. RN(L)(B)8610EC Electric Range Convection Oven. RN(L)(B)8613EC Electric Range Convection Oven. RN(L)(B)8616EC Electric Range Convection Oven. -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF ELECTRIC RANGE and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf ELECTRIC RANGE, there are two important things you can do. -
Page 5: Specifications

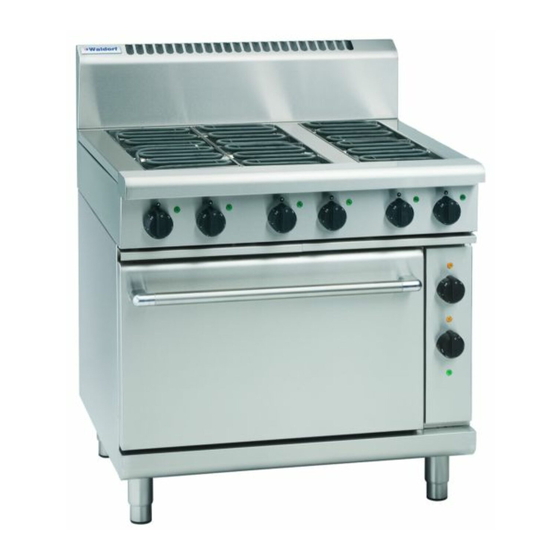

Specifications Model Numbers Covered in this Specification RN[1]8610E Electric Range Static Oven + 6 Radiant Elements. RN[1]8613E Electric Range Static Oven + 4 Radiant Elements + 300 mm Griddle. RN[1]8616E Electric Range Static Oven + 2 Radiant Elements + 600 mm Griddle. RN[1]8619E Electric Range Static Oven + 900 mm Griddle. -
Page 6: Dimensions
Dimensions RN(L)8610E / EC Hob Options RN(L)8610E RN(L)8613E RN(L)8616E RN(L)8619E... -
Page 7: Installation
Installation Installation Requirements NOTE: It is most important that this Electric Range Static / Convection Oven is installed correctly and that operation is correct before use. Installation shall comply with local electrical and health and safety requirements. This appliance shall be installed with sufficient ventilation to prevent the occurrence of unacceptable concentrations of health harmful substances in the room, the appliance is installed in. -
Page 8: Assembly
Installation Assembly AUTIO N This appliance is for professional use and is to be used by qualified persons only. Only qualified service persons are to carry out installation and servicing of this appliance. All Models This model is delivered completely assembled. Ensure that the legs are securely attached. NOTE: Appliance Base... -
Page 9: Electrical Connection
Installation Electrical Connection WARNING: HIS APPLIANCE MUST BE EARTHED F THE SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. -
Page 10: Commissioning
Installation Commissioning Before leaving the new installation; a. Check the following functions in accordance with the operating instructions specified in the ‘Operation’ section of this manual. Check the current draw and loading for the equipment. Refer to the 'Specifications' section for correct electrical requirements. -
Page 11: Operation
Operation Operation Guide AUTIO N This appliance is for professional use and is to be used by qualified persons only. Only qualified service persons are to carry out installation and servicing of this appliance. Waldorf Electric Range Static / Convection Ovens have been designed to provide simplicity of operation. -
Page 12: Griddle Plate
Operation Hob Element / Griddle Options Open Radiant Elements Solid Radiant Elements Griddle Plate Fig 4 Radiant Elements (Solid or Open) The controls for the radiant elements may be set at any position between high and low to provide the desire level of heating. An individual green neon for each element, will glow when the element is switched 'ON' to show that there is power to the element. -
Page 13: Oven
Operation Oven DO NOT USE aluminium foil or trays directly on the cast iron sole plate(s). ! IMPORTANT NEVER block or cover the openings on each side of the sole plate(s). The oven is fitted with top and bottom elements. The thermostat maintains the overall oven temperature. -
Page 14: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn off the electrical power supply at the mains supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the range regularly. A clean appliance looks better, will last longer and will perform better. Carbonised grease on the surface or on the griddle plate (If fitted) will hinder the transfer of heat from the cooking surface to the food. -
Page 15: Daily Cleaning
Cleaning and Maintenance Daily Cleaning 1. The grease drawer should be checked and Lift up Front of Element Module emptied frequently to prevent overflow and spillage. Remove the grease drawer while still warm so that the grease is in a liquid state. Empty any grease from the drawer and wash thoroughly in the same manner as any cooking utensil. -
Page 16: Weekly Cleaning
Cleaning and Maintenance Weekly Cleaning NOTE: If the range usage is very high, we recommend that the weekly cleaning procedure is carried out on a more frequent basis. Ensure that protective gloves are worn during the cleaning process. ... -
Page 17: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 18: Circuit Schematics
Circuit Schematics Static Ovens (RN8610E Series) - Page 19 Circuit Schematics Convection Ovens (RN8610EC Series)
- Page 20 Circuit Schematics Cooktop - 6 Elements (RN8610E/EC Models) Cooktop - 4 Elements - 300 mm Griddle (RN8613E/EC Models)
- Page 21 Circuit Schematics Cooktop - 2 Elements - 600 mm Griddle (RN8616E/EC Models) Cooktop - 900 mm Griddle (RN8619E/EC Models)
- Page 22 Circuit Schematics Wiring Layout for Static Oven Wiring Layout for Convection Oven Wiring Connection Between Oven and Hob...
-
Page 23: Replacement Parts
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual). - Page 24 Replacement Parts List Oven 228082 Oven Top Element 2kW. 228059 Oven Bottom Element 4.5kW. 228704 Door Spring Kit. (Includes 2 Springs). 229021 Terminal Block Mains. 229146 Thermostat 50 - 300°C. 227963 Neon Orange. 227962 Neon Green. 013989 Energy Regulator. 227398 Control Knob HI/LO Heat.
