aquanique QPUV9 Manual

9 watt uv pond clarifier

Advertisement

Quick Links

REMINDER
CALL 1-888-314-2588
BEFORE RETURNING TO STORE.

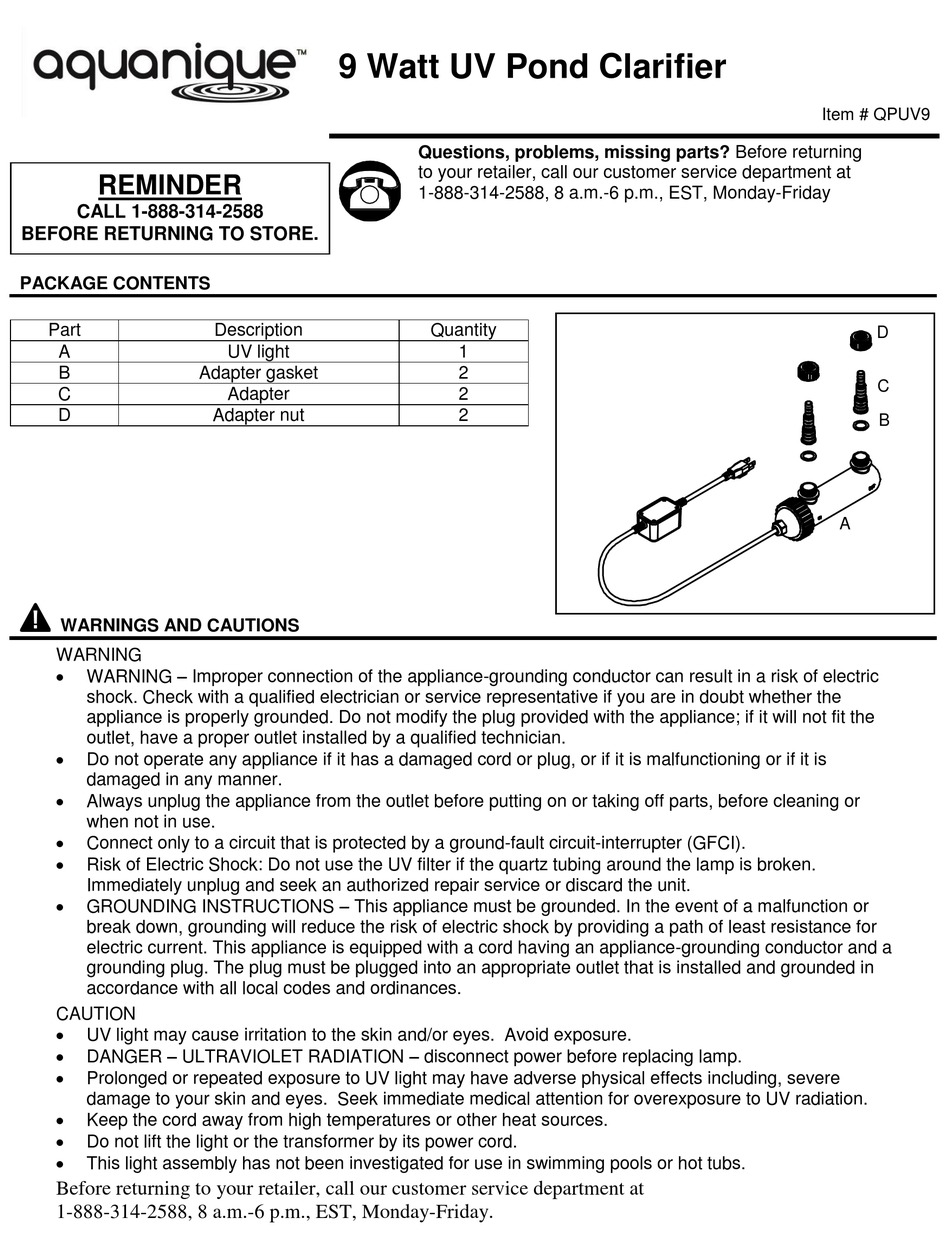

PACKAGE CONTENTS

Part
A
B
C
D
WARNINGS AND CAUTIONS
WARNING
WARNING – Improper connection of the appliance-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly grounded. Do not modify the plug provided with the appliance; if it will not fit the
outlet, have a proper outlet installed by a qualified technician.
Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or if it is
damaged in any manner.
Always unplug the appliance from the outlet before putting on or taking off parts, before cleaning or
when not in use.
Connect only to a circuit that is protected by a ground-fault circuit-interrupter (GFCI).
Risk of Electric Shock: Do not use the UV filter if the quartz tubing around the lamp is broken.
Immediately unplug and seek an authorized repair service or discard the unit.
GROUNDING INSTRUCTIONS – This appliance must be grounded. In the event of a malfunction or
break down, grounding will reduce the risk of electric shock by providing a path of least resistance for
electric current. This appliance is equipped with a cord having an appliance-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances.
CAUTION
UV light may cause irritation to the skin and/or eyes. Avoid exposure.
DANGER – ULTRAVIOLET RADIATION – disconnect power before replacing lamp.
Prolonged or repeated exposure to UV light may have adverse physical effects including, severe
damage to your skin and eyes. Seek immediate medical attention for overexposure to UV radiation.
Keep the cord away from high temperatures or other heat sources.
Do not lift the light or the transformer by its power cord.
This light assembly has not been investigated for use in swimming pools or hot tubs.
Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
9 Watt UV Pond Clarifier
Description
UV light
Adapter gasket
Adapter
Adapter nut
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday
Quantity
1
2
2
2
Item # QPUV9
D
C
B
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QPUV9 and is the answer not in the manual?

Questions and answers

Summary of Contents for aquanique QPUV9

  • Page 1 9 Watt UV Pond Clarifier Item # QPUV9 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at REMINDER 1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday CALL 1-888-314-2588 BEFORE RETURNING TO STORE. PACKAGE CONTENTS Part Description...
  • Page 2 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts. ...
  • Page 3 NOTE: The inlet is marked “IN” on the lamp housing. Tubing (not included) QPUV9 Fig. 3 4. Connect tubing to the outlet of the QPUV9. The other end Submersible can be connected to a spitter, waterfall, or any other water pump in water Connect this feature for your pond.
  • Page 4 REPLACING THE BULB 1. Disconnect the UV light from the outlet. Be sure to allow sufficient time for the light to cool before disassembling the light. Fig. 7 Fig. 7 2. Rotate the locking ring counterclockwise to remove the lamp holder.
  • Page 5 Indicator light Fig. 12 CARE AND MAINTENANCE To maximize the performance of the QPUV9, periodically disassemble the unit to clean dirt and debris from the exterior of the glass tube. IMPORTANT NOTE: Be sure that the entire unit is completely dry and gaskets are properly seated when reassembling the QPUV9.
  • Page 6 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-314-2588, 8 a.m.-6 p.m., EST, Monday- Friday. Part Description Adapter gasket Adapter Adapter nut Lamp holder Lamp holder gasket Bulb holder Glass tube holder O-ring 1 Glass tube gasket Glass tube Glass tube locking nut O-ring 2...
  • Page 7 All aquanique™ electrical products are warranted to the user against defective material and workmanship, under normal working conditions for 1 year from the date of purchase. All aquanique™ liners are warranted to the user against defective workmanship, under normal working conditions for 20 years from the date of purchase.
