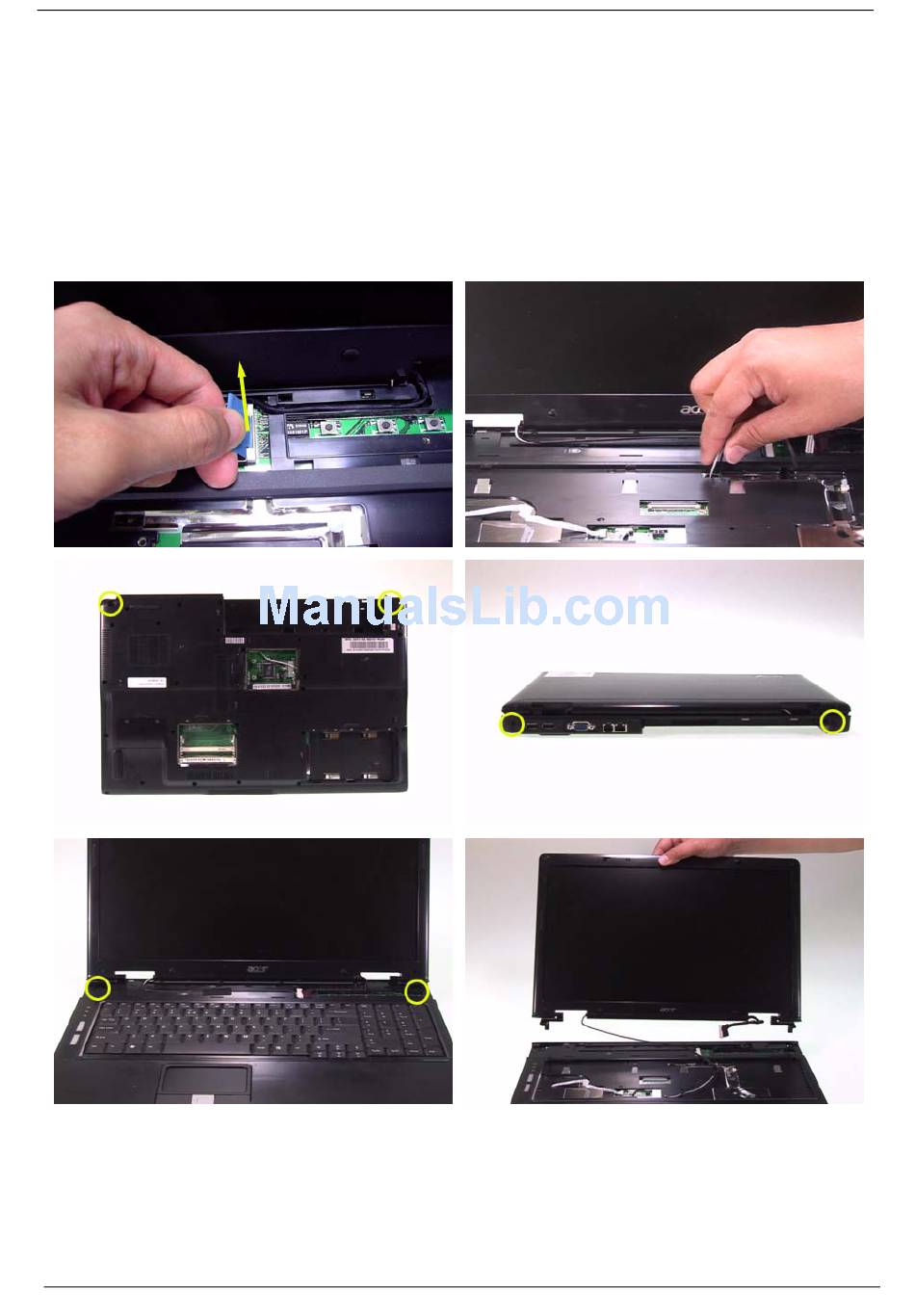

Separating the LCD Module and Main Unit

Pull carefully and disconnect the LCD cable.

Tear off the tape securing the wireless antenna and pull out the wireless antenna.

Release the two screws securing the LCD hinges on the bottom side.

Release the two screws fastening the LCD hinges on the rear side.

Release the two screws holding the LCD hinges as shown.

Then separate the LCD module from the main unit.
