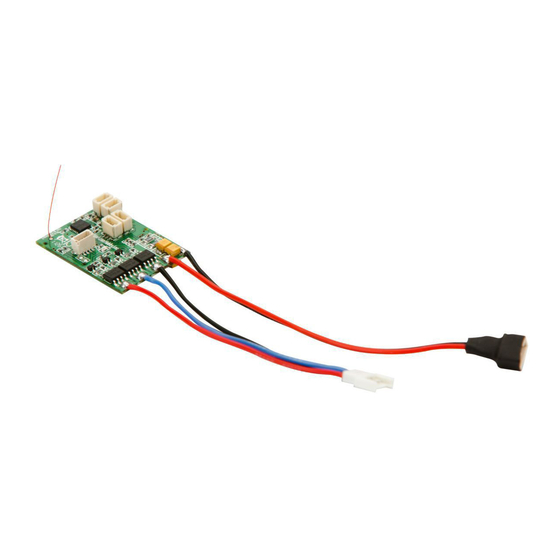

Summary of Contents for Spektrum SPMAS6410NBL
- Page 1 SPMAS6410NBL Receiver User Guide...
-
Page 2: Warranty Registration
WARNING AGAINST COUNTERFEIT PRODUCTS Thank you for purchasing a genuine Spektrum product. Always purchase from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all... - Page 3 fl y now and in the future. The AS6410NBL receiver defaults the AS3X system to OFF. To activate AS3X, the optional Spektrum AS6410NBL USB Interface (SPMA3060) is required. The X-port must be active to program the AS6410NBL using the USB interface SPMA3060).
- Page 4 4.9 amps of continuous current. An integrated X-Port feature allows for future expansion. When X-Port is active, CH5 and CH6 are not available; however, reversed aileron (CH2) is still available. SPMAS6410NBL Specifi cations Type: ..............DSM2/DSMX ultra micro AS3X receiver with integrated brushless speed controller Channels: ............6 or 4 channels, plus X-Port...
-
Page 5: Receiver Installation
CAUTION: If AS3X is active and the receiver is not installed correctly, the aircraft will crash. Servos Specially designed servos are available from Spektrum. NOTICE: Using any other servo(s) may cause damage to the receiver and/or void the servo warranty. - Page 6 Installing and Plugging in the Optional Servos Use double-sided foam tape strips and/ or minimal hot glue to mount the servos in place. The servos must be in the appropriate position to attach to the corresponding pushrods. Plug the servo leads into the appropriate servo ports in the receiver, noting the polarity of the servo connector.
- Page 7 You may also reverse the actual servos by following the instructions below. Reversing Linear Servos Reversing the servo is useful when implementing certain installations, such as dual ailerons, fl aps, etc. Spektrum offers a servo reversing lead that you can plug in between the receiver and the optional servo.
- Page 8 To Change CH6 to a Reversed CH2 for Dual Ailerons or Reversed CH2 to 1. Ensure the receiver and transmitter are bound 2. Turn the transmitter on 3. Move the THRO stick to the full throttle position 4. Move the Control sticks to the corresponding position to change between the available options (see illustration) 5.
- Page 9 Programming the Brushless ESC To access a programmable feature, power on with full throttle (musical confirmation sound). Pull throttle to center (1 long beep). To assign No Brake: Push throttle to full (1 short beep). (Default) Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound). To assign Soft Brake: Keep throttle at full for 5 seconds (2 short beeps).
- Page 10 Throttle channel “throttle up”but is reversed. Futaba all other controls transmitters (equipped Reverse throttle channel seem to function with Spektrum on specifi c transmitter if modules) may require applicable you to reverse the throttle channel User did not wait at...
- Page 11 Rebind your transmitter bind mode and is not and receiver bound to your receiver anymore Charge batteries. Spektrum receivers require at least 3.5V to operate. An Inadequate battery inadequate power supply voltage can allow voltage to mo- mentarily drop below 3.5V...
-
Page 12: Year Limited Warranty
1-Year Limited Warranty What this Warranty Covers Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 years from the date of purchase. What is Not Covered This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence,... -
Page 13: Warranty Services
WARRANTY SERVICES Questions, Assistance, and Services Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. - Page 14 Warranty, Service and Customer Service Contact Information Country of Horizon Phone Number/Email Address Purchase Hobby Address Horizon Ser- 877-504-0233 4105 Fieldstone Rd vice Center Online Repair Request: Champaign, Illinois (Electronics visit www.horizonhobby. 61822 USA and engines) com/service Horizon United Product 4105 Fieldstone Rd 877-504-0233 States of...
-
Page 15: Fcc Information
(in accordance with ISO/IEC 17050-1) No. HH2011110403 Receiver Product(s): Item Number(s): SPMAS6410NBL The objects of declaration described above are in conformity with the requirements of the specifi cations listed below, following the provisions of the European R&TTE directive 1999/5/EC: EN 301 489-1 V1.7.1: 2006 EN 301 489-17 V1.3.2: 2008... - Page 16 Horizon Hobby, Inc. DSMX is a trademark of Horizon Hobby, Inc., registered in the US. The Spektrum trademark is used with permission of Bachmann Industries, Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
