Instruction Manual
Bed Frame For Twin Mattress
Model PICKTRF-2
Due to the presence of small parts during assembly, keep
out of reach of children until assembly is complete.

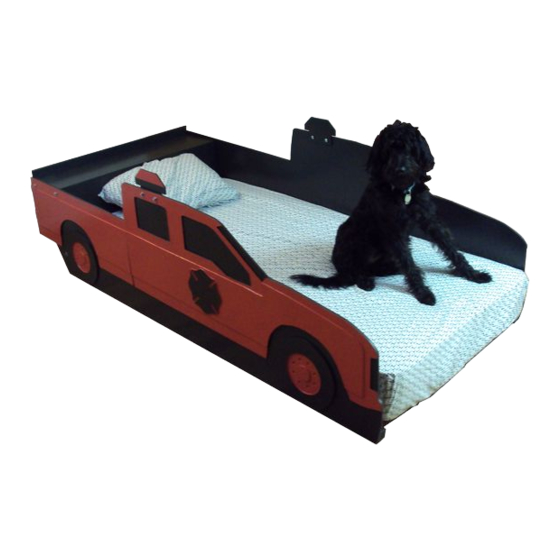

Model PICKTRF-2 Fire Pickup Truck Bed Frame Revised 04/10/2016
Read all instructions before assembly and use.
Keep instructions for future use.
ADULT ASSEMBLY REQUIRED
Lancaster, PA 17601
tradecraftspecialties@gmail.com
www.tradecraftspecialties.com
1900 Alfa Drive
(717) 269-8934
Page
1 of 7
Advertisement
Table of Contents
Related Manuals for Tradecraft Specialties PICKTRF-2
Summary of Contents for Tradecraft Specialties PICKTRF-2
- Page 1 Due to the presence of small parts during assembly, keep out of reach of children until assembly is complete. 1900 Alfa Drive Lancaster, PA 17601 (717) 269-8934 tradecraftspecialties@gmail.com www.tradecraftspecialties.com Page Model PICKTRF-2 Fire Pickup Truck Bed Frame Revised 04/10/2016 1 of 7...
- Page 2 Please verify that you or your child does not have an allergy to linseed oil before using this product. General Specifications Assembled dimensions (approximate): 89" long, 39.5" wide, 26" high. Page Model PICKTRF-2 Fire Pickup Truck Bed Frame Revised 04/10/2016 2 of 7...
- Page 3 The smell should completely dissipate within several days. The smell may be stronger on products with areas of exposed unpainted material. Disassembly To disassemble, reverse order of steps for assembly. Page Model PICKTRF-2 Fire Pickup Truck Bed Frame Revised 04/10/2016 3 of 7...
- Page 4 Parts List Page Model PICKTRF-2 Fire Pickup Truck Bed Frame Revised 04/10/2016 4 of 7...
- Page 5 Step 2 - A: Loosely fasten side assemblies [A] to rear shelf support [G] using lag bolts [E] and flat washers [F], (1) lag bolt per side with a washer on each lag bolt. Do not yet fully tighten lag bolts. Page Model PICKTRF-2 Fire Pickup Truck Bed Frame Revised 04/10/2016 5 of 7...
- Page 6 (1) screw at each end of support bar. Make sure support bar end is tight and perpendicular with side of bed. Start at rear of bed and work towards front. Leave 4.5” gaps between each support bar (approximately 7” center-to-center). Page Model PICKTRF-2 Fire Pickup Truck Bed Frame Revised 04/10/2016 6 of 7...
- Page 7 Step 4: Tighten all hardware. Make sure all assembled parts are tight and secure. Page Model PICKTRF-2 Fire Pickup Truck Bed Frame Revised 04/10/2016 7 of 7...
