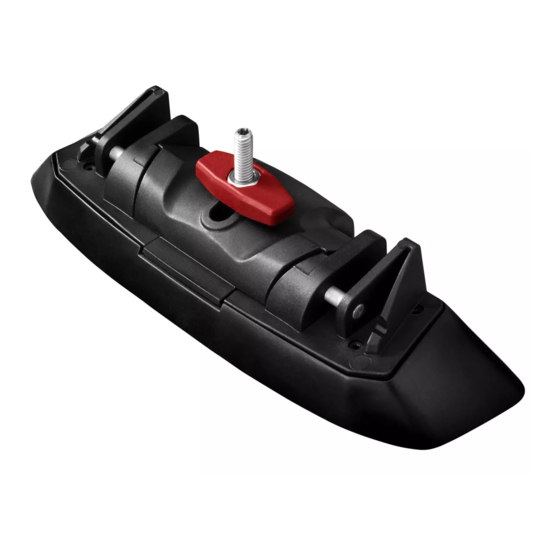

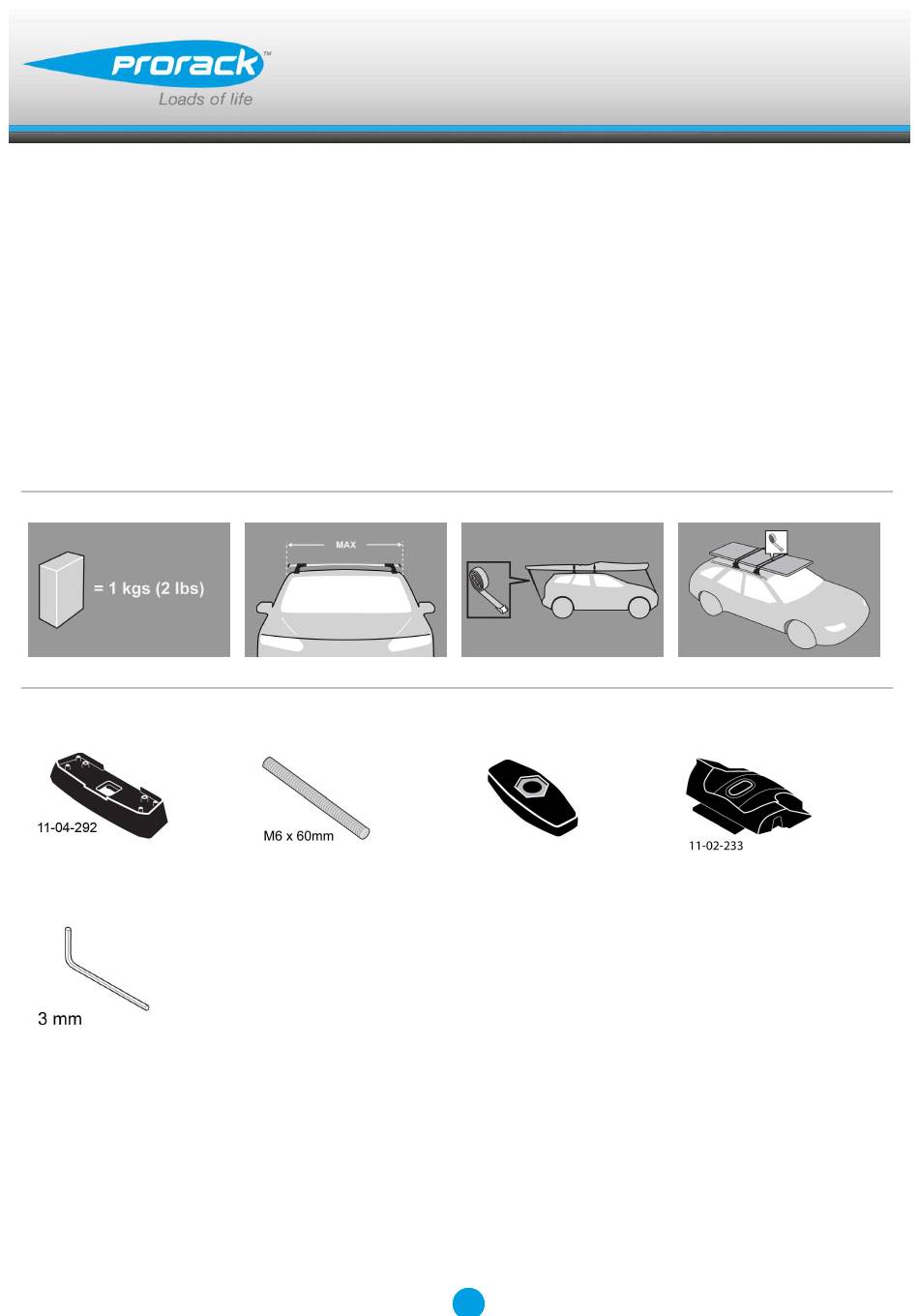

- Page 1 K868 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2B...
- Page 2 Fitting Kit K868 MAX kgs (lbs) Mercedes-Benz Tourer, 5dr Van 14-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Tourer, 5dr Van 15-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Valente, 5dr Van 15-+ 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 3 Fitting Kit K868 Tourer, 5dr Van 14-+ (EU) 245mm 1085mm 1105mm 1125mm 9 5/8ths" 42 11/16ths" 43 1/2ths" 44 5/16ths" Tourer, 5dr Van 15-+ (ZA) 245mm 1085mm 1105mm 1125mm 9 5/8ths" 42 11/16ths" 43 1/2ths" 44 5/16ths" Valente, 5dr Van 15-+ (AU)
-
Page 4: First Time Installation
Fitting Kit K868 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K868 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 6 Fitting Kit K868 Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K868 Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 8 Fitting Kit K868 Fitment Open or remove fixed-point covers. Attaches to factory-fitted mounting points. Do not use mounting points with "X". Remove fixed-point covers by turning the plastic screw with flat-head screw driver. Select grubscrews and screw into the vehicle's fixed points.
- Page 9 Fitting Kit K868 Place crossbar foot over grubscrews. Tighten the plastic knob. The side with the nut showing should be facing up. In the fully tightened position, the knobs should be parallel with the vehicle. Repeat for all four positions.
- Page 10 Fitting Kit K868 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K868 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K868 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
