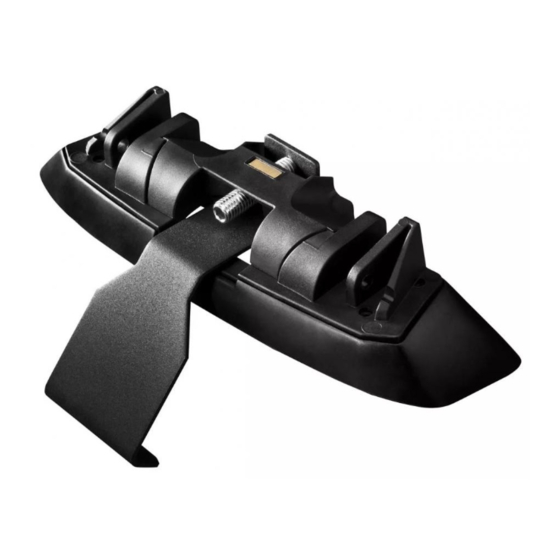

- Page 1 K823 Fitting Kit Fitting Instructions for Basic Carrier Instrucciones de montaje para el sistema de transporte Instructions de montage pour Basic Carrier Revision No: 1A...

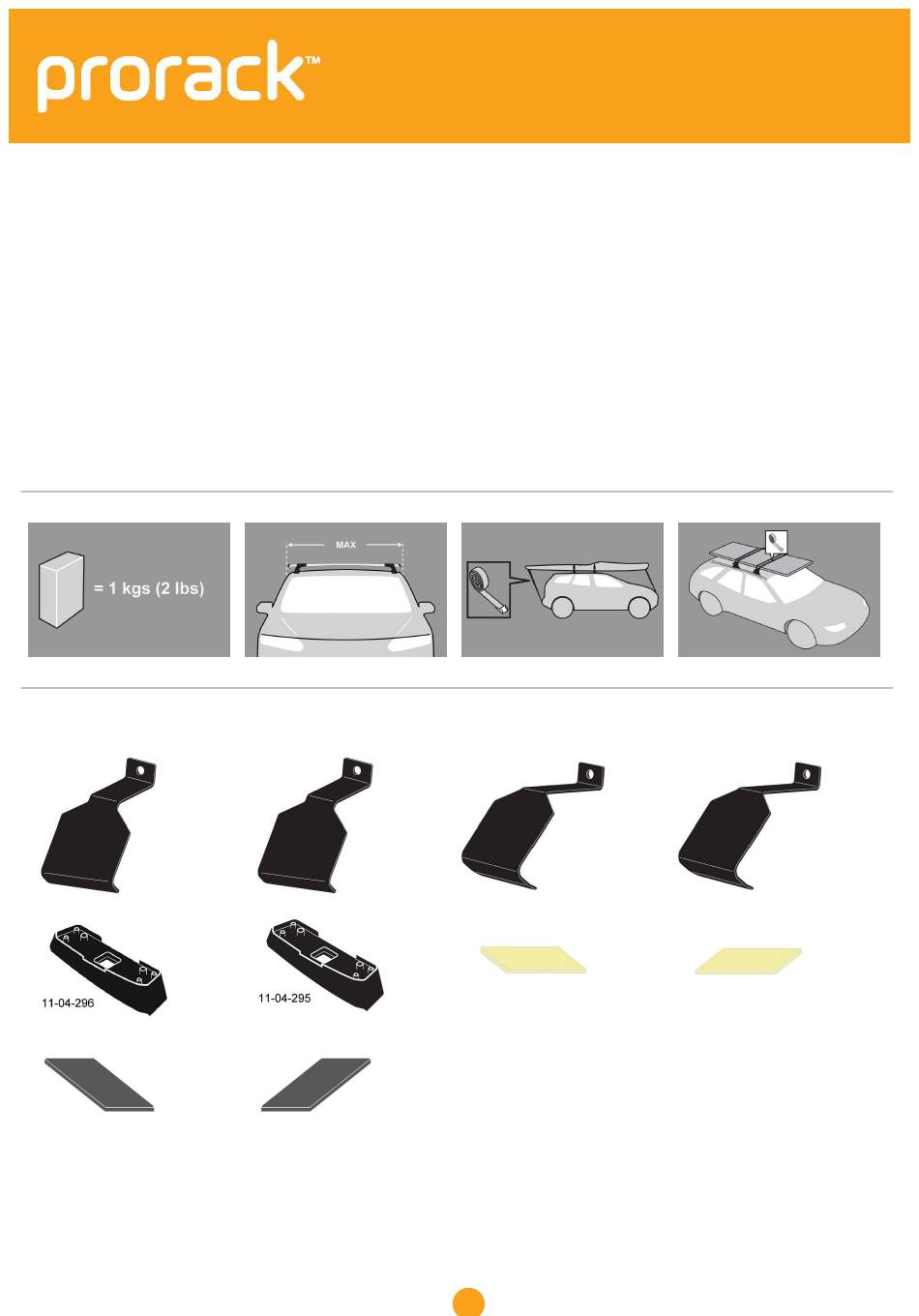

- Page 2 Fitting Kit K823 MAX kgs (lbs) Audi A6 , 4dr Sedan 12-+ 45 kgs (99 lbs) 45 kgs (99 lbs) A6 , 4dr Sedan 12-+ 45 kgs (99 lbs) 45 kgs (99 lbs) A6 , 4dr Sedan 12-+ 45 kgs (99 lbs)
-
Page 3: First Time Installation
Fitting Kit K823 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K823 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K823 Remove locking screw. Apply protective strip as shown. Trim if required. A = Clear B = Grey It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps.
- Page 6 Fitting Kit K823 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K823 It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 295A B = 296A Fit rubber pads (supplied with fitting kit) to foot.
- Page 8 Fitting Kit K823 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the rear of this manual for information relating specifically to your vehicle. Adjust the legs on the crossbar so that they...
- Page 9 Fitting Kit K823 Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K823 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K823 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K823 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Primera Instalación
Fitting Kit K823 Primera instalación Retire las piezas del embalaje y confirme su contenido. Póngase en contacto con su vendedor en el caso de que falten piezas o éstas estén dañadas. Este kit se adecua a los tipos A, B, C y D. - Page 14 Fitting Kit K823 Utilice las llaves para retirar la tapa. Utilice la llave Allen para desatornillar los tornillos de ajuste en 10 vueltas. Presione el tornillo de ajuste y tire de los pies de la barra hacia fuera. Consulte las instrucciones de montaje de las barras para su ajuste.
- Page 15 Fitting Kit K823 Retire el tornillo de bloqueo. Aplique la tira de protección como se muestra. Recorte si fuera necesario. A = Clara B = Gris Es importante colocar los ganchos en la posición correcta en el vehículo. Las letras se refieren a la referencia marcada en los ganchos.
- Page 16 Fitting Kit K823 Ponga el gancho metálico en cada pie de barra. NOTA: Los ganchos podrán tener información sobre su posición de colocación en el vehículo (Ejemplo: Delantera derecha). Recoloque los tornillos de bloqueo hasta que este se atornille al agujero en el gancho.
- Page 17 Fitting Kit K823 Es importante colocar los almohadilla en la posición correcta en el vehículo. Las letras se refieren a la referencia de las almohadillas. Referencia de almohadilla: A = 295A B = 296A Ajuste las almohadillas de goma a la base del pie de la barra (suministradas con el kit de fijación).
-
Page 18: Montaje
Fitting Kit K823 Montaje Ponga la barra en el vehículo. Las distáncia mínima recomendada entre barras es de 700mm. PF ver documento adjunto 1 para detalles específicos de su vehículo. Ajuste los pies al largo de la barra para que se encuentren a la misma distáncia de la... - Page 19 Fitting Kit K823 Apriete el tornillo de bloqueo en ambos pies uniformemente. Asegúrese de que la barra esté fijada al vehículo de forma segura. Utilice las llaves para instalar y cerrar las cubiertas.
- Page 20 Fitting Kit K823 ATENCIÓN: Verifique regularmente si los tornillos están apretados.
-
Page 21: Mantenimiento
Fitting Kit K823 Mantenimiento Limpie el techo del vehículo y las superfícies del producto que estarán en contacto con el techo. Siga las instrucciones de montaje para la instalación del producto en su vehículo. Asegúrese de que todos los pasos se siguen correctamente. - Page 22 Fitting Kit K823 Transportar carga en el techo del vehículo cambia el comportamiento del mismo. Especial atención al efecto de viento cruzado, cambios de dirección y situaciones de frenado. Evite las aceleraciones y desaceleraciones rápidas. Conduzca con precaución. Tenga en cuenta que la altura total del vehículo se incrementa cuando se llevan...
-
Page 23: Première Installation
Fitting Kit K823 Première installation Retirer les pièces de contenu de l'emballage et vérifier. Contactez votre revendeur si certaines pièces sont manquantes ou endommagées. Ce kit correspond aux types A, B, C et D. Ces instructions montrent la barre transversale de type A posée. Elles correspondent également aux types B, C et... - Page 24 Fitting Kit K823 Utiliser les clés pour retirer les caches Utiliser le tournevis cruciforme pour repositionner la vis de réglage et faire 10 tours. Appuyer sur la vis de réglage et extraire les pieds de la barre transversale. Consulter les instructions de la barre transversale pour la régler.
- Page 25 Fitting Kit K823 Retirer la vis de blocage. Appliquer des bandes de protection comme indiqué. Les découper si nécessaire. A = Clair B = Gris Il est important de placer les fixations à la bonne position sur le véhicule. Les lettres font référence aux numéros de pièces indiqués sur les fixations.
- Page 26 Fitting Kit K823 Mettre la fixation sur chaque pied. REMARQUE : il est possible que les fixations aient des étiquettes indiquant leurs positions sur le véhicule (par exemple : "avant droite"). Remonter la vis de réglage de sorte qu'elle passe par le trou de la fixation. Ne pas commencer à...
- Page 27 Fitting Kit K823 Il est important de placer les coussin à la bonne position sur le véhicule. Les lettres font référence aux numéros de pièces des coussins et à leur position. Numéro de pièce du coussin : A = 295A...
-
Page 28: Montage
Fitting Kit K823 Montage Placer la barre transversale sur le véhicule. L'espace minimal recommandé entre les barres est de 700 mm (27 1/2") (sauf mention contraire). Veuillez consulter l'arrière de ce manuel pour obtenir des informations relatives à votre véhicule en particulier. - Page 29 Fitting Kit K823 Serrer la vis de blocage sur les deux pieds de façon égale. Vérifier que la barre transversale est solidement fixée au véhicule. Utiliser les touches pour installer et verrouiller les couvercles...
- Page 30 Fitting Kit K823 ATTENTION : Vérifier régulièrement que les vis sont bien serrées...
- Page 31 Fitting Kit K823 Maintenance Nettoyer le toit de la voiture et les surfaces des produits qui seront en contact avec le toit de la voiture. Suivre les instructions de montage pour l'installation du produit sur votre véhicule. S'assurer que toutes les étapes sont réalisées dans l'ordre.
- Page 32 Fitting Kit K823 Un système de galerie de toit chargé peut altérer les performances de votre véhicule. Soyez particulièrement conscients des effets de vents latéraux, le changement de direction, et du freinage. Évitez accélération et de décélération. Conduisez prudemment Noter que la hauteur totale du véhicule augmente lorsque les charges sont transportées en position verticale.
- Page 33 Fitting Kit K823 A6, 4dr Sedan 12-+ (NZ) -350mm 395mm 895mm 871mm -13 -3/4ths" 15 9/16ths" 35 1/4ths" 34 5/16ths" A6, 4dr Sedan 12-+ (AU) -350mm 395mm 895mm 871mm -13 -3/4ths" 15 9/16ths" 35 1/4ths" 34 5/16ths" A6, 4dr Sedan 12-+ (EU)
- Page 34 Fitting Kit K823 (US) LIMITED WARRANTY: Prorack Products (“Prorack”) will repair or replace merchandise which proves defective in materials and/or workmanship. The limited warranty is effective for three years from the date of purchase. The limited warranty is applicable only if the instructions are followed and the products are used properly. If a customer believes that a Prorack product is defective, the customer must return it to an authorized Prorack dealer with proof of purchase. Prorack will then issue authorization to the dealer for the return of these products. If an article is found to be defective upon inspection by Prorack, Prorack will repair or replace the defective article at its discretion without charge. The customer will pay freight to Prorack, and Prorack will pay any applicable return freight. Unauthorized returns will not be accepted. Normal wear and tear of Prorack products or damage resulting from misuse, accidents, or alterations are not covered by this Limited Warranty. The purchaser acknowledges that Prorack has no control over the attachment of its products to vehicles or the attachment of items to the Prorack products. Accordingly, Prorack cannot assume responsibility for any damage to any property arising out of the improper attachment or use of its products. In addition, this Limited Warranty is not transferable and applies only to Prorack products and not to other products used in conjunction with Prorack products. This Limited Warranty is in lieu of all other warranties, expressed or implied, and does not cover consequential damages of any kind that may arise from the use or misuse of any Prorack product. (AU/NZ) Yakima Australia Pty Ltd ABN 58 154 440 221 17 Hinkler Court, Brendale QLD 4500 Tel: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
- Page 35 Fitting Kit K823 (AU/NZ) Cont. THE SUPPLIER WARRANTS the product to be free from defects in materials and/or workmanship for a period of three (3) years from the date of original purchase (the warranty period). Proof of purchase is required. Subject to the limitations and exclusions set out below, the Supplier hereby agrees to remedy any defects in materials or workmanship becoming apparent during the warranty period, by replacing or repairing any defective product or component (at its option) free of charge to the purchaser in respect of replacement parts or labour. Any defective product or component must be notified and where practicable, returned at the purchaser’s expense to the Supplier immediately upon discovery of the alleged defect and no attempt made on the part of the purchaser to repair it. EXCEPTIONS, EXCLUSIONS AND LIMITATIONS TO WARRANTY. The product and/or its components must be fitted/ assembled and loaded in accordance with the Supplier’s written instructions and any requirements set out in the car’s owner manual. This warranty does not cover defects, loss or damage resulting from circumstances beyond the Supplier’s control including, but not limited to misuse, overloading, or failure to assemble and/or fit the product or component in accordance with the Supplier’s written instructions. Nor does the warranty cover defects, loss or damage resulting from accidents, unlawful use of the vehicle or defects/inconsistencies in the vehicle on which the product or component is fitted. Liability for direct, indirect, special, punitive, incidental, exemplary, contractual or consequential damage or loss arising from defects, faulty materials or design omissions or negligence or workmanship in the product or its components is hereby expressly excluded subject to the following. Certain Commonwealth legislation, including the Competition and Consumer Act 2010 (Cth), and other State and Territorial legislation confers upon purchasers rights which cannot be excluded from or be restricted or modified by contract. Any conditions, guarantees and/or warranties implied by law and incapable of exclusion are deemed to be expressly incorporated herein. Nothing herein contained is intended nor shall be permitted to be inconsistent with any such conditions, guarantees and/or warranties. To the extent permitted by legislation all conditions, guarantees and/or warranties such as implied warranties which are capable of exclusion are hereby expressly excluded and negatived. ...
- Page 36 Fitting Kit K823 (AU/NZ) Cont. ADDITIONAL INFORMATION ( AUSTRALIA ) This information should be read in conjunction with clauses (a) and (b). IMPORTANT LEGAL NOTICE Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty does not change or take away your rights under the Australian Consumer Law. Your right to claim under this policy for the benefits covered is in addition to other rights and remedies you have under the law in relation to the product. Where you become aware of defects in materials or of workmanship, and wish to make a claim under this warranty you must do the following for the warranty to be honoured by your Prorack dealer or Yakima Australia Pty Ltd ABN 58 154 440 221 (Yakima): Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to...
- Page 37 Fitting Kit K823 (ES) Garantía limitada: Prorack Products (“Prorack”) se compromete a reparar o remplazar la mercancía que presente defectos de materiales y/o de fabricación. Esta garantía limitada es válida por tres años contados desde la fecha de compra. La garantía limitada es aplicable solamente si se han seguido las instrucciones de instalación y si el producto se ha usado en la forma debida. Si un cliente cree que un producto Prorack está defectuoso, el cliente debe devolver dicho producto a un representante autorizado de Prorack, adjuntando la prueba de compra. Prorack dará entonces autorización a dicho representante para devolver el producto. Si al inspeccionar el producto Prorack encuentra que en realidad está defectuoso, Prorack reparará o reemplazará el artículo defectuoso a su discreción, sin cargo alguno para el cliente. El cliente se compromete a pagar por el flete para enviar el producto y Prorack pagará el flete que corresponda para devolver dicho producto al cliente. No se aceptarán devoluciones no autorizadas. Esta garantía limitada no cubre el desgaste normal de los productos Prorack, ni los daños resultantes de un uso inadecuado, accidentes o alteraciones. El comprador reconoce que Prorack no tiene ningún control sobre la forma en que sus productos han sido instalados en los vehículos o sobre la fijación de otros artículos a los productos Prorack. Por consiguiente, Prorack no asume responsabilidad alguna por daños a la propiedad resultantes de una fijación mal hecha o del uso inapropiado de sus productos. Además, esta garantía limitada es no transferible y se aplica únicamente a los productos Prorack y no a otros productos usados en conjunto con los productos Prorack. Esta garantía limitada reemplaza toda otra garantía, explícita o implícita y no cubre daños consecuentes de ninguna clase que puedan resultar del uso correcto o incorrecto de cualquier producto Prorack. ...
- Page 38 Fitting Kit K823 Garantie Limit ée: Prorack Products (“Prorack”) s’engage à réparer ou à remplacer les produits qui présenteraient des vices de matériau ou de abrication. Cette garantie limitée est d’une durée de trois ans à partir de la date d’achat. Cette garantie limitée ne s’applique que si les instructions ont été respectées et si les produits ont été utilisés normalement. Si le client estime qu’un produit Prorack est défectueux, le client doit le retourner à un dépositaire Prorack autorisé, accompagné de la preuve d’achat. Prorack autorisera alors le dépositaire à retourner le produit. Si, après inspection, Prorack juge le produit défectueux, Prorack réparera ou remplacera le produit, à sa discrétion et sans frais. Le client devra assumer les frais de transport jusqu’à Prorack et Prorack assumera les frais de retour au client. Les retours non autorisés ne seront pas acceptés. Cette garantie limitée ne couvre pas l’usure normale ou les dommages résultant d’un usage abusif, d’un accident ou de modifications aux produits Prorack. L’acheteur reconnaît que Prorack n’a aucun contrôle sur la façon dont ses produits sont fixés aux véhicules, ou dont les articles transportés sont fixés aux produits Prorack. Il s’ensuit que Prorack ne peut assumer de responsabilité pour des dommages matériels consécutifs au mauvais montage ou au mauvais emploi de ses produits. De plus, la présente garantie limitée n’est pas transférable et ne s’applique qu’aux produits Prorack et non à d’autres produits utilisés conjointement aux produits Prorack. Cette garantie limitée remplace toute autre garantie, expresse ou tacite, et ne couvre pas d’éventuels dommages indirects pouvant survenir par suite de l’emploi, correct ou non, des produits Prorack. ...
