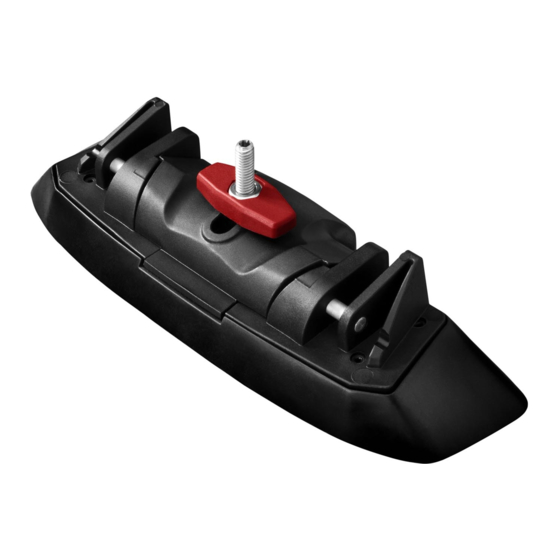

- Page 1 K807 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K807 MAX kgs (lbs) Citroen C3, 5dr Hatch 09-16 70 kgs (154 lbs) 70 kgs (154 lbs) C3, 5dr Hatch 10-+ 70 kgs (154 lbs) 70 kgs (154 lbs) C3, 5dr Hatch 10-+ 70 kgs (154 lbs) 70 kgs (154 lbs)
- Page 3 Fitting Kit K807 C3, 5dr Hatch 09-16 (EU) -305mm 370mm 790mm 705mm -12" 14 9/16ths" 31 1/8ths" 27 3/4ths" C3, 5dr Hatch 10-+ (NZ) -305mm 370mm 790mm 705mm -12" 14 9/16ths" 31 1/8ths" 27 3/4ths" C3, 5dr Hatch 10-+ (AU)
-
Page 4: First Time Installation

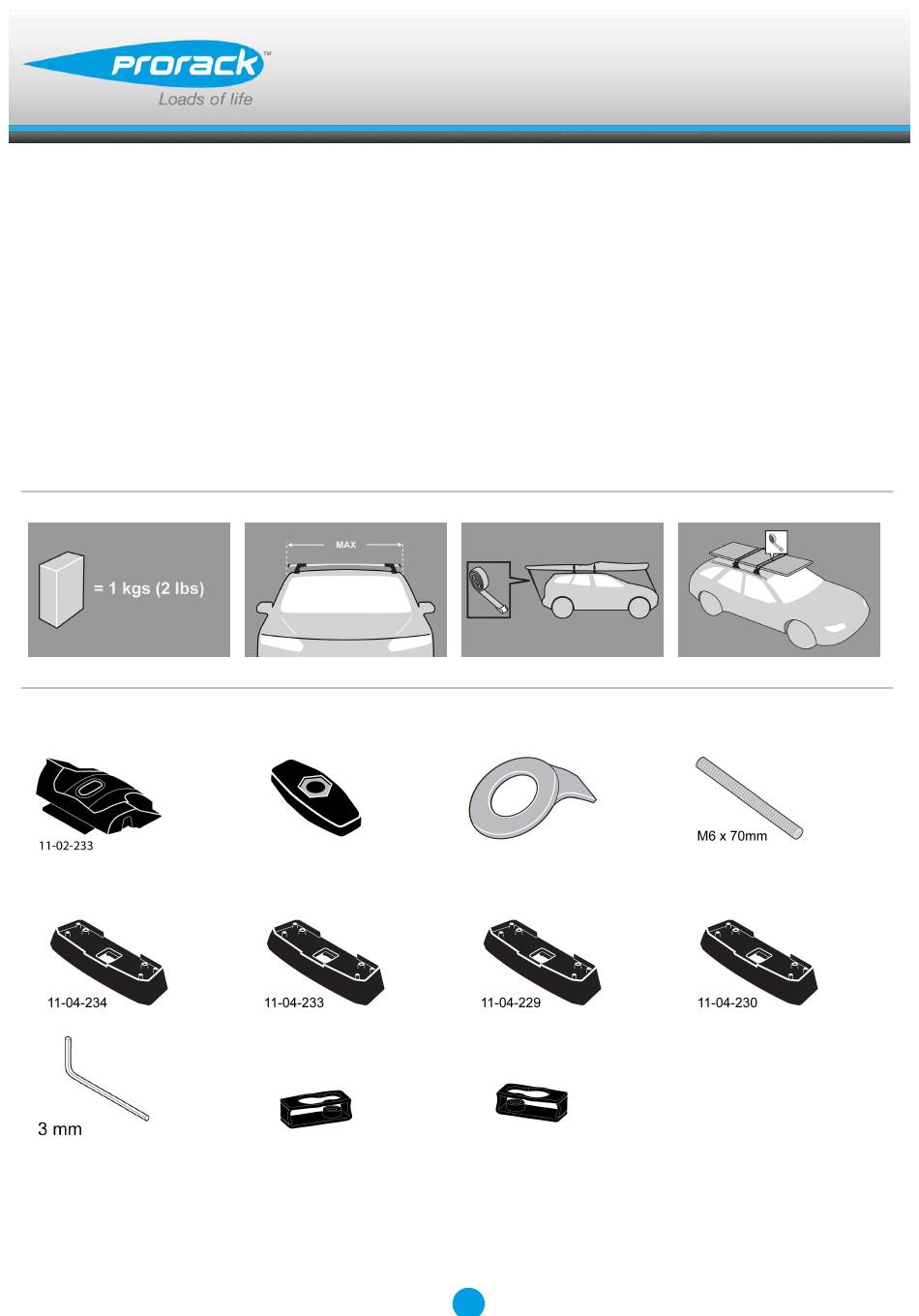

Fitting Kit K807 Important Only suitable for models with Trap Door option on roof strip First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. - Page 5 Fitting Kit K807 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K807 Adjust crossbar in or out to suit vehicle. Refer to the crossbar instructions for crossbar adjustment. Attaches to factory-fitted mounting points Please check the front of this manual for information relating specifically to your vehicle. Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight.
- Page 7 Fitting Kit K807 Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs. Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle.
- Page 8 Fitting Kit K807 Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Fitment Open or remove fixed-point covers. Place mounting block into position as shown.
- Page 9 Fitting Kit K807 Slide mounting block to front, so the thread is above mounting point. Insert grubscrew and tighten (make sure that the grubscrew is above the mounting point) . Place pad over grubscrew.
- Page 10 Fitting Kit K807 Mount crossbars over clamps. Ensure the pads are in the correct position and the clamp threads pass through the crossbar feet. Place washer over clamp thread as shown. Ensure that tab is inserted into clamp block. Ensure the plastic knob is in the position shown when fully tightened.
- Page 11 Fitting Kit K807 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K807 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K807 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
