Fresh Solutions, Fit For You

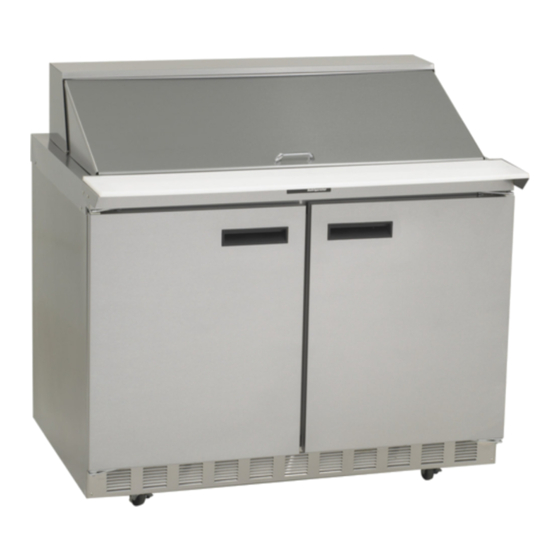

Compact Refrigerators
4400 Series
Specifications, Installation, Operation & Maintenance Manual
This manual is updated as new information and models are released.
Visit our website for the latest information.
Caution
,
Read this instruction before operating this equipment.
Original Document
Part Number: 9295093 07/20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Welbilt Delfield 4400 Series
Summary of Contents for Welbilt Delfield 4400 Series

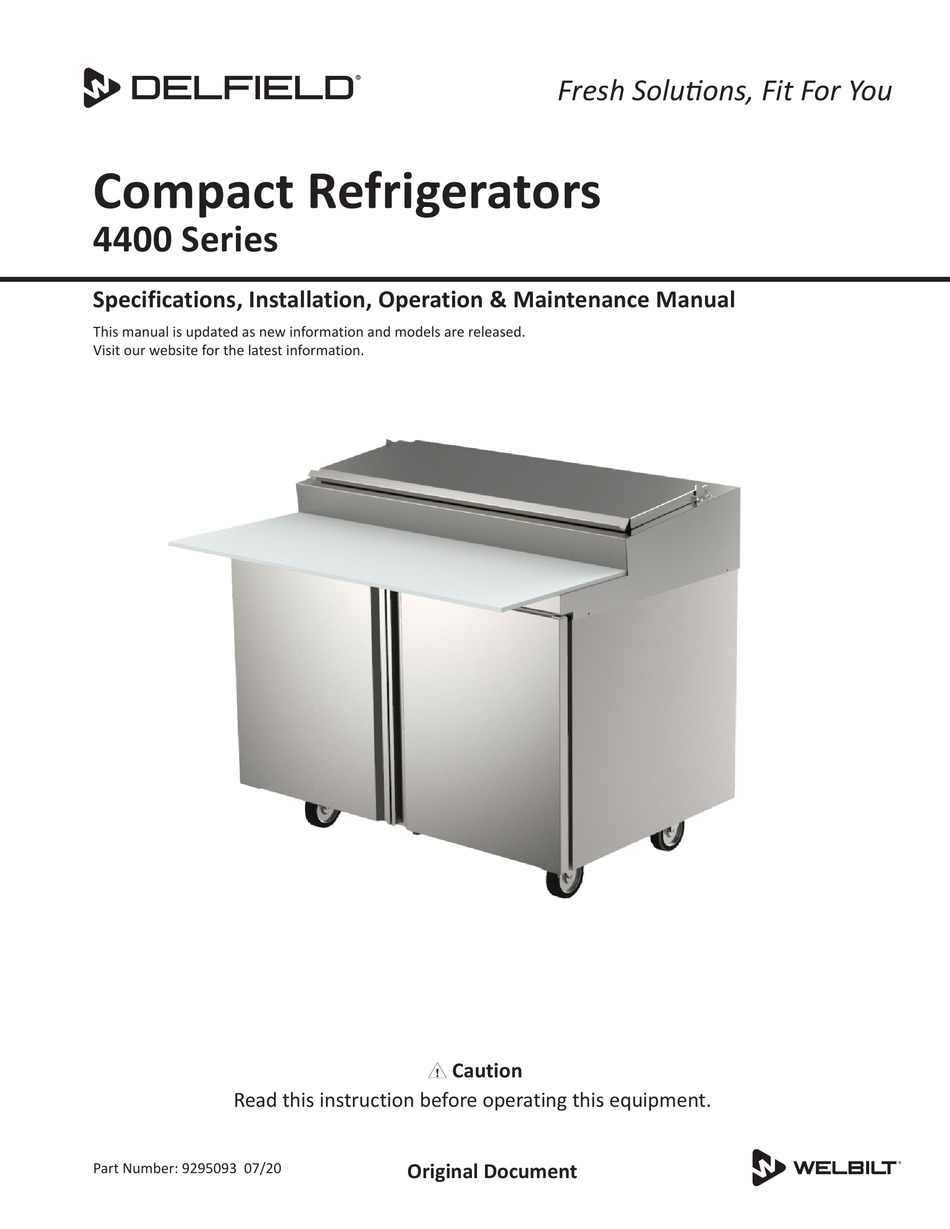

- Page 1 Fresh Solutions, Fit For You Compact Refrigerators 4400 Series Specifications, Installation, Operation & Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest information. Caution Read this instruction before operating this equipment. Original Document Part Number: 9295093 07/20...
- Page 2 Safety Notices Warning This product contains chemicals known to the State of Warning California to cause cancer and/or birth defects or other Read this manual thoroughly before operating, installing reproductive harm. Operation, installation, and servicing or performing maintenance on the equipment. Failure of this product could expose you to airborne particles to follow instructions in this manual can cause property of glasswool or ceramic fibers, crystalline silica, and/...
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Serial Number Information ....................4 Warranty Information......................4 Regulatory Certifications ....................4 Model Numbers ........................ 4 Section 2 Installation Location ..........................6 Weight of Equipment ......................7 Clearance Requirements ....................8 Dimensions ........................8 Capacity .......................... -
Page 4: General Information
Section 1 General Information Serial Number Information Model Numbers The serial number is on the identification plate that also This manual covers the following models: includes the model number. The identification plate is Model Description located near the top front corner of the left interior wall. Refrigerated Front Breathers With Doors 4427NP-6 Always have the serial number of your unit available... - Page 5 Section 1 General Information Model Description D4464NP-18M Four Drawer Mega Top D4464NP-24M D4472NP-12 Six Drawer Salad Top D4472NP-18 D4472NP-18M D4472NP-24M Six Drawer Mega Top D4472NP-30M Refrigerated Front Breathers With Doors & 4” S/S Backsplash ST4427NP-6 One Door Salad Top ST4427NP-8 ST4448NP-6 ST4448NP-8 Two Door Salad Top...
-
Page 6: Installation
Section 2 Installation The location selected for the equipment must meet the DANGER following criteria. If any of these criteria are not met, select Installation must comply with all applicable fire and another location. health codes in your jurisdiction. • Units are intended for indoor use only. •... -
Page 7: Weight Of Equipment
Section 2 Installation Weight of Equipment Model Ship Weight Refrigerated Front Breathers With Doors & 4” S/S Backsplash Model Ship Weight ST4427NP-6 240lbs (109kg) Refrigerated Front Breathers With Doors ST4427NP-8 4427NP-6 223lbs (101kg) ST4448NP-6 316lbs (143kg) 4427NP-8 240lbs (109kg) ST4448NP-8 4427NP-9M ST4460NP-8 223lbs (101kg) -
Page 8: Clearance Requirements
Installation Section 2 Clearance Requirements Model Length Depth Work Height D4460N-8 • Keep the vents clean and free of obstruction. D4460NP-12 D4460NP-12M 60” (152cm) 31.50” (80cm) 36.00” (91cm) • Casters or optional legs must be used and not removed. D4460NP-18M •... -
Page 9: Capacity
Section 2 Installation Refrigerated Front Breathers w/ Doors & Raised Rail Prep Table 1/6 Pan Model Shelf Area Base Volume 4448RP 48” (122cm) 31.50” (80cm) 36.00” (91cm) Capacity 4472RP 72” (182cm) 31.50” (80cm) 36.00” (91cm) D4472NP-12 4496RP 96” (244cm) 31.50” (80cm) 36.00” (91cm) D4472NP-18 Refrigerated Front Breathers w/ Drawers &... -
Page 10: Electrical Service
(opens it) when it D4427NP-6 senses an unexpected loss of power, presumably to ground. D4427NP-8 Welbilt does not recommend the use of GFCI/GFI circuit 115, 60, 1 5-15P D4427NP-9M protection to energize our equipment. If code requires the D4427NP-12M use of a GFCI/GFI then you must follow the local code. -
Page 11: Drain Connections
Section 2 Installation Drain Connections Voltage, Cycle, NEMA Model H.P. Phase Plug Warning D4472NP-12 D4472NP-18 Moisture collecting from improper drainage can create a D4472NP-18M 115, 60, 1 5-15P slippery surface on the floor and a hazard to employees. D4472NP-24M It is the owner’s responsibility to provide a container or D4472NP-30M outlet for drainage. -
Page 12: Refrigeration
Installation Section 2 Refrigeration Model BTU/Hour Heat of R290 Charge Capacity Rejection Model BTU/Hour Heat of Refrigerated Front Breathers With Doors & 4” S/S Backsplash R290 Charge Capacity Rejection ST4427NP-6 2038 Refrigerated Front Breathers With Doors ST4427NP-8 4427NP-6 ST4448NP-6 2038 1299 4427NP-8 ST4448NP-8... -
Page 13: Level & Stable
Section 2 Installation Level & Stable Changing Pan Height After the cabinet has been placed in the desired location, If additional pan temperature cooling ability is desired, cabinets with legs must be leveled. Level units from front to especially in higher ambient temperature conditions and/ back and from side to side. -
Page 14: Optional Overshelf Installation Instructions
Installation Section 2 If the overshelf was not ordered with the unit: 1. Set the overshelf in-place on the top of the cabinet. 2. Secure with three screws per side of the cabinet (total six screws). Optional Overshelf Installation Instructions If the unit is ordered to have the overshelf: 1. -
Page 15: Standard Cutting Board Bracket Mounting
Section 2 Installation Standard Heavy Duty Cutting Board Bracket Mounting Supplies Needed • #3 Phillips Screwdriver Parts Included For 27” & 32” Units Description Part No. Left Bracket Varies Right Bracket Varies Silicone 9291311 Screw, pan head 9321519 Screw, flat head 9324092 Fender Washer 9324043... -
Page 16: Heavy Duty Cutting Board Bracket Mounting
Installation Section 2 Heavy Duty Cutting Board Bracket Mounting Instructions 3. Install the cutting board onto the brackets. 1. Attach each bracket to the top of the unit with one flat • Make final bracket adjustments so the cutting board head screw (9324092). - Page 17 Section 2 Installation THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9295093 07/20...
-
Page 18: Operation
Section 3 Operation Warning DANGER The operator of this equipment is solely responsible The on-site supervisor is responsible for ensuring that for ensuring safe holding temperature levels for all operators are made aware of the inherent dangers of food items. Failure to do so could result in unsafe food operating this equipment. -
Page 19: Power To Cool
Section 3 Operation Power To Cool Efficient Operation • After the cabinet is connected to the power source it will • Cabinets with pans should be operated with pans in automatically begin operating. place. Operating the cabinet without all pans in place may damage the cabinet. -
Page 20: Maintenance
Section 4 Maintenance Warning DANGER When cleaning interior and exterior of unit, care should It is the responsibility of the equipment owner to perform be taken to avoid the front power switch and the rear a Personal Protective Equipment Hazard Assessment power cord. -
Page 21: Fluorescent Light Bulb Replacement
Section 4 Maintenance PREVENTING BLOWER COIL CORROSION tracks are dishwasher safe or can be cleaned in a sink with detergents and a soft bristle brush. Drawers and tracks To help prevent corrosion of the blower coil, store all acidic should be cleaned on a weekly basis. items, such as pickles and tomatoes, in seal-able containers. -
Page 22: Cleaning The Condenser Coil
Maintenance Section 4 Cleaning the Condenser Coil In order to maintain proper refrigeration performance, the condenser fins must be cleaned of dust, dirt and grease regularly. It is recommended that this be done monthly. If conditions are such that the condenser is totally blocked in a month, the frequency of cleaning should be increased. - Page 23 Section 4 Maintenance THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9295093 07/20...
- Page 24 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM ©2019 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Part Number: 9295093 07/20...
