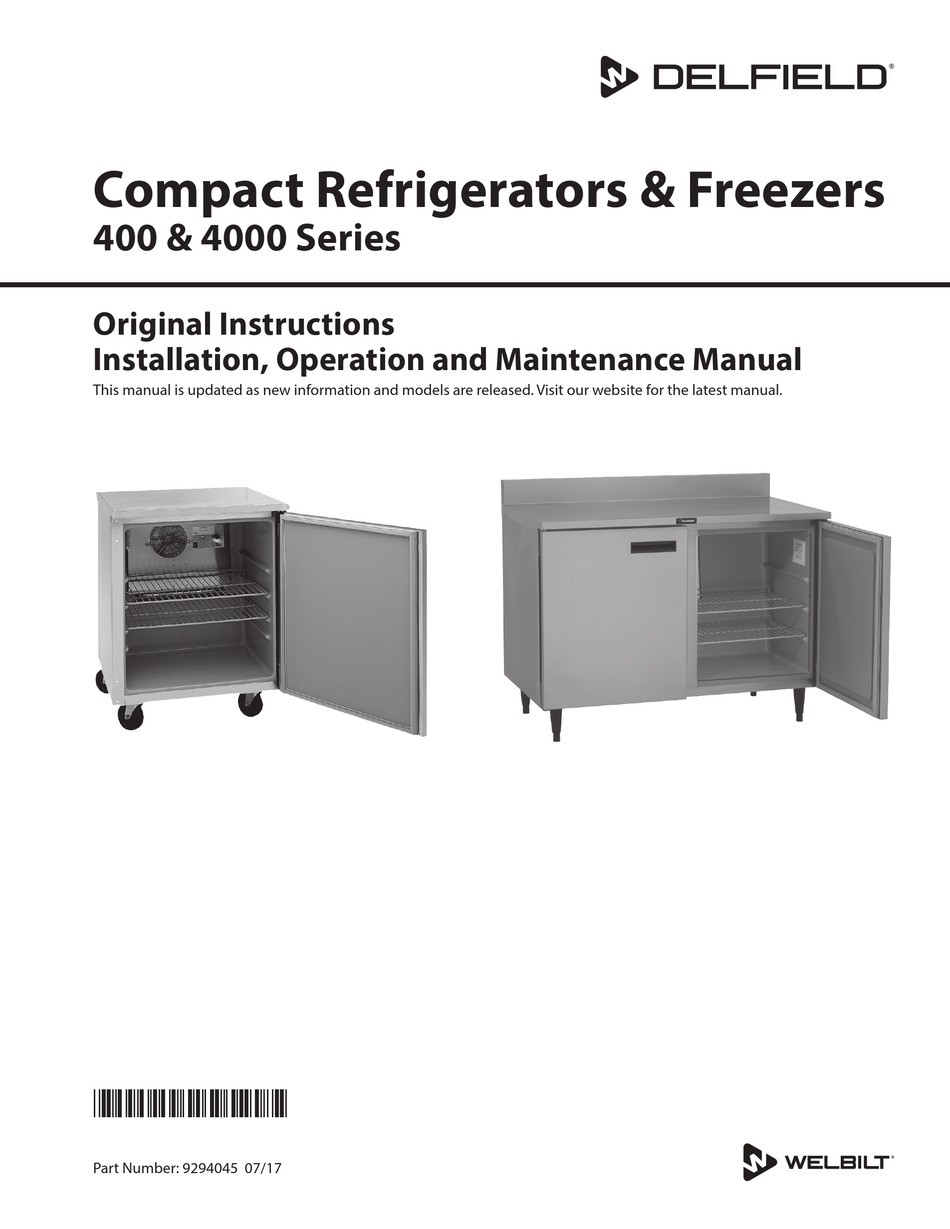

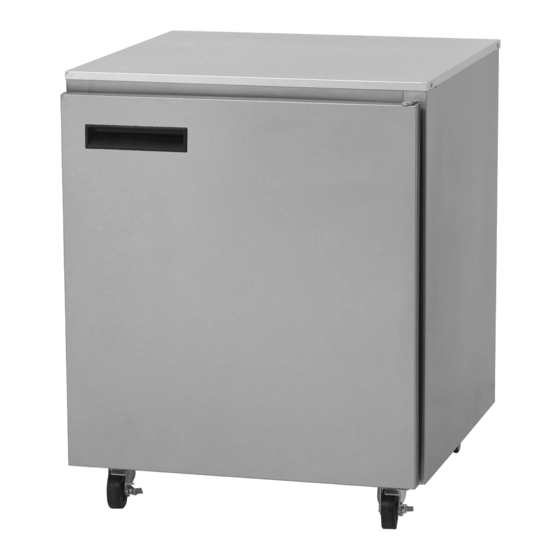

- Page 1 Compact Refrigerators & Freezers 400 & 4000 Series Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. *9294045* Part Number: 9294045 07/17...
- Page 2 Safety Notices Warning Do not use electrical appliances or accessories other Warning than those supplied by the manufacturer. Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure Warning to follow instructions in this manual can cause property Use caution when handling metal surface edges of all damage, injury or death.
- Page 3 Table of Contents Section 1 General Information Model Numbers ........................4 Serial Number Location ..................... 4 Warranty Information ......................4 Regulatory Certifications ....................4 Section 2 Installation Location ..........................5 Weight of Equipment ......................6 Clearance Requirements ....................6 Dimensions ......................... 6 Electrical Service ........................
-
Page 4: Model Numbers
Section 1 General Information Model Numbers Serial Number Location This manual covers standard units only. The serial number on 400 series compact refrigerators and freezers is printed on the right side of the interior back wall. NOTE: For custom units, consult Manitowoc KitchenCare at 1-844-724-CARE. -
Page 5: Location
Section 2 Installation Caution DANGER Do not position the air intake vent near steam or heat Installation must comply with all applicable fire and exhaust of another appliance. health codes in your jurisdiction. DANGER The location selected for the equipment must meet the following criteria. -
Page 6: Weight Of Equipment
Installation Section 2 Weight of Equipment Dimensions Model Length Depth Height Model Weight 402P 27” (69cm) 28.5” (72cm) 39.5” (100cm) 402P 176lbs (80kg) 406P 27” (69cm) 28.5” (72cm) 35.5” (90cm) 406P 176lbs (80kg) 406CAP 27” (69cm) 27.75” (70cm) 33.25” (84cm) 406CAP 168lbs (76kg) 27”... -
Page 7: Part Number: 9294045
Otherwise, water will collect on when it senses an unexpected loss of power, presumably the floor, causing a potentially hazardous situation. to ground. Welbilt does not recommend the use of GFCI/ GFI circuit protection to energize our equipment. If code Warning... -
Page 8: Caster Or Leg Installation
Installation Section 2 Caster Or Leg Installation Caution After installing casters, the unit must stand upright for DANGER twenty-four (24) hours before being powered up to Legs or casters must be installed and the legs or casters assure oil return to the compressor sump. must be screwed in completely to prevent bending. -
Page 9: Caster And Leg Mounting Detail
Section 2 Installation CASTER AND LEG MOUNTING DETAIL 0.94” A universal bolt hole pattern is provided on the bottom of (24mm) the cabinet. It will accommodate any leg or caster. Simply line up the plate holes with the corresponding cabinet holes. - Page 10 Section 3 Operation Warning DANGER The operator of this equipment is solely responsible The on-site supervisor is responsible for ensuring that for ensuring safe holding temperature levels for all operators are made aware of the inherent dangers of operating this equipment. food items.
-
Page 11: Controls/Programming/Settings
Section 3 Operation Controls/Programming/Settings R290 REFRIGERATORS At initial start-up or anytime power is disconnected, then R404A REFRIGERATORS reconnected to the unit, the control will delay all operations for a short time (up to 30 minutes.) While in this delay After the unit is connected to power it will automatically period the control will initialize. -
Page 12: Freezers
Operation Section 3 FREEZERS Freezer Automatic Defrost This unit does not have a power switch, plug the unit in The control also monitors compressor total running time to begin operation. At initial start-up or anytime power is and will enter a defrost cycle after total compressor running disconnected, then reconnected to the unit, the control time is greater than five hours since the last defrost cycle will delay all operations for a short time (up to 40 minutes). - Page 13 Section 4 Maintenance Warning DANGER When cleaning interior and exterior of unit, care should It is the responsibility of the equipment owner to be taken to avoid the front power switch and the rear perform a Personal Protective Equipment Hazard Assessment to ensure adequate protection during power cord.
-
Page 14: Interior Cleaning
Maintenance Section 4 Interior Cleaning Cleaning the Condenser Coil The interior can be cleaned using soap and warm water. If In order to maintain proper refrigeration performance, the this isn’t sufficient, try ammonia and water or a nonabrasive condenser fins must be cleaned of dust, dirt and grease liquid cleaner. -
Page 15: Problem -> Cause -> Correction Chart
Section 5 Troubleshooting Problem -> Cause -> Correction Chart Problem Cause Correction Cabinet not Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. running Power cord unplugged. Plug in power cord. Thermostat set too high. Set thermostat to lower temperature. Main power switch turned off. - Page 16 All of our products are backed by KitchenCare® – our aftermarket, repair, and parts service. CLEVELAND DELFIELD® FRYMASTER® KOLPAK® MANITOWOC® MERRYCHEF® CONVOTHERM® FITKITCHEN™ GARLAND LINCOLN MERCO® MULTIPLEX® ©2017 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Continuing product improvement may necessitate change of specifications without notice. Part Number: 9294045 07/17...
