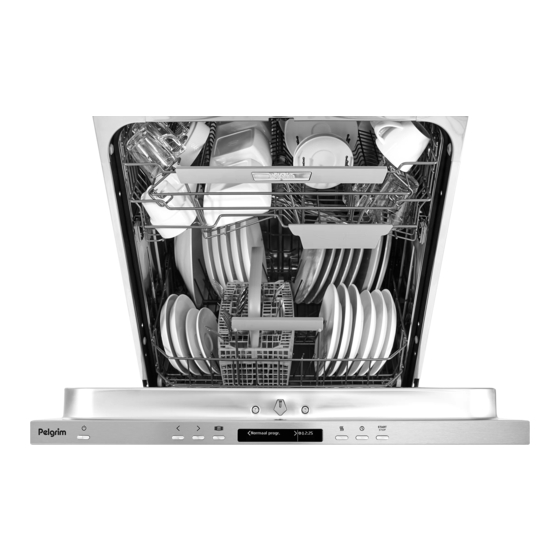

- Page 1 Operating Instructions GVW910L...
-
Page 2: Table Of Contents
Quick guide Care and cleaning Dear Pelgrim customer! We hope that you will have many years of use from your new machine. To get the most out of your new dishwasher, we recommend that you read the operating instructions before using the dishwasher. -
Page 3: Safety Instructions
Safety instructions may remain inside! After adding detergent, NOTE! always start the dishwasher immediately. Read the operating instructions and keep them in a safe place! WARNING! Number of standard place settings: 13 Children must be supervised – dishwasher Never use the dishwasher for any purpose detergent is corrosive! other than that specified in these operating instructions. -
Page 4: Before Washing For The First Time
Before washing for the first time 1. Checking water hardness 2. Basic settings In order to achieve good dishwashing results, the dishwasher needs Open the door and press the main power switch. soft water (water with low mineral content). Hard water leaves a white "This is a first time set up."... - Page 5 3. Top up with rinse aid 4. Top up with salt Drying is faster and a better result is achieved if you use rinse aid. You Before you begin using a dishwasher with a water softener, you must will also achieve a better dishwashing result with clear and spotless fill the salt compartment with salt for the water supply to be softened dishes.
-
Page 6: Loading The Dishwasher
Loading the dishwasher Greener dishwashing Fragile dishes Do not rinse under running water Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged Simply scrape off large food particles before loading the dishwasher. by dishwashing detergent. - Page 7 The dishwasher's baskets The dishwasher is equipped with an upper basket and a lower basket with a cutlery basket. The appearance of the baskets may differ depending on the dishwasher setup. Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket.
- Page 8 Cutlery basket with lid The cutlery basket lid can be removed and used, for example, as an extra cutlery basket in the upper basket (see below).
-
Page 9: Using The Dishwasher
Using the dishwasher Add detergent NOTE! Use only dishwasher detergent! Washing up liquid must not be used Press to open as the foam that forms prevents the dishwasher from operating effectively. Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly. - Page 10 Open the door and press the main power switch. Starting the dishwasher 2:00 Speed mode Select the programme Select a programme mode Select any options Crystal glass The main power switch A gentle dishwashing programme with a low temperature for washing fragile items made of crystal/glass.
- Page 11 Intensive mode How to get the best drying results Improves the dishwashing results, but the dishwasher uses more energy Fully load the dishwasher. and water. The programme time is extended. Angle dishes with hollows, such as cups, so that the rinse water will run off.
-
Page 13: Settings
Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button until Settings menu is shown on the display and confirm your selection with the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector Navigation buttons for choosing setting Mode selector to confirm current setting 1 Language... - Page 14 Settings Options Rinse aid 0/1/2/3/4/5/TAB Setting for rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage). Increase the rinse aid dosage: If the dishes have water marks. Decrease the rinse aid dosage: If the dishes have a sticky white/blue film.
-
Page 15: Care And Cleaning
Care and cleaning 2 Unscrew the spray arm bearings counterclockwise to remove the Coarse filter spray arm from the upper basket. The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter as necessary. Coarse filter Lower spray arm Pull the lower spray arm straight up to release it. - Page 16 Shut off the water. 1 Turn off the machine using the main power switch and unplug it from the wall socket. Remove the plug from the wall socket. 2 Turn off the water tap. Call the service department. 3 Unscrew the inlet hose. 4 Carefully remove the outer filter from the inlet hose and clean it.
-
Page 17: Troubleshooting
Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department. - Page 18 Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings blocked. Clean the spray arms. See the chapter Care and cleaning.
- Page 19 Problem Possible causes Action Water remains in the dishwasher. The filters are blocked. Clean the coarse and fine filters. The filters are not fitted correctly. Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
-
Page 20: Technical Information
Technical information Information on energy labelling Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 Pelgrim Model designation: GVW910L Number of standard place settings: Energy efficiency class: A+++ Annual energy consumption(AE 234 kWh per year Energy consumption of the standard cleaning cycle(E 0.82 kWh... -
Page 21: Installation
Installation [mm] 1198 30-94 *Remove locking nuts for an installed height of 820-821 mm. **Door length. Nominal dimensions. Actual measurements may vary. It is important that you read through and follow the instructions and Drainage connection directions below. Conduct installation and connection in accordance See the separate installation instructions for necessary information. -
Page 22: Service
Service Connection to hot water supply Read the chapter Troubleshooting before contacting the service department. If you have encountered a problem that you cannot resolve, Connect the dishwasher to the hot water supply (max. 70 °C) if the please contact your nearest dealer. building is heated using an energy-efficient means such as district heating, solar power or geothermal power. -
Page 23: Information For Test Institute
Information for test institute Request test institute information via e-mail dishwashers@appliance-development.com. The request should include the details on the serial number plate. Include the article number (1) and the serial number (2). ART. NO. SERIAL NO. -
Page 24: Quick Guide
Quick guide Load the baskets (See page 6.) Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off large food particles before loading the dishwasher. Check that the spray arms can rotate freely Check also that the water tap is on. Don't forget! Empty the course filter and clean the fine filter when necessary.
