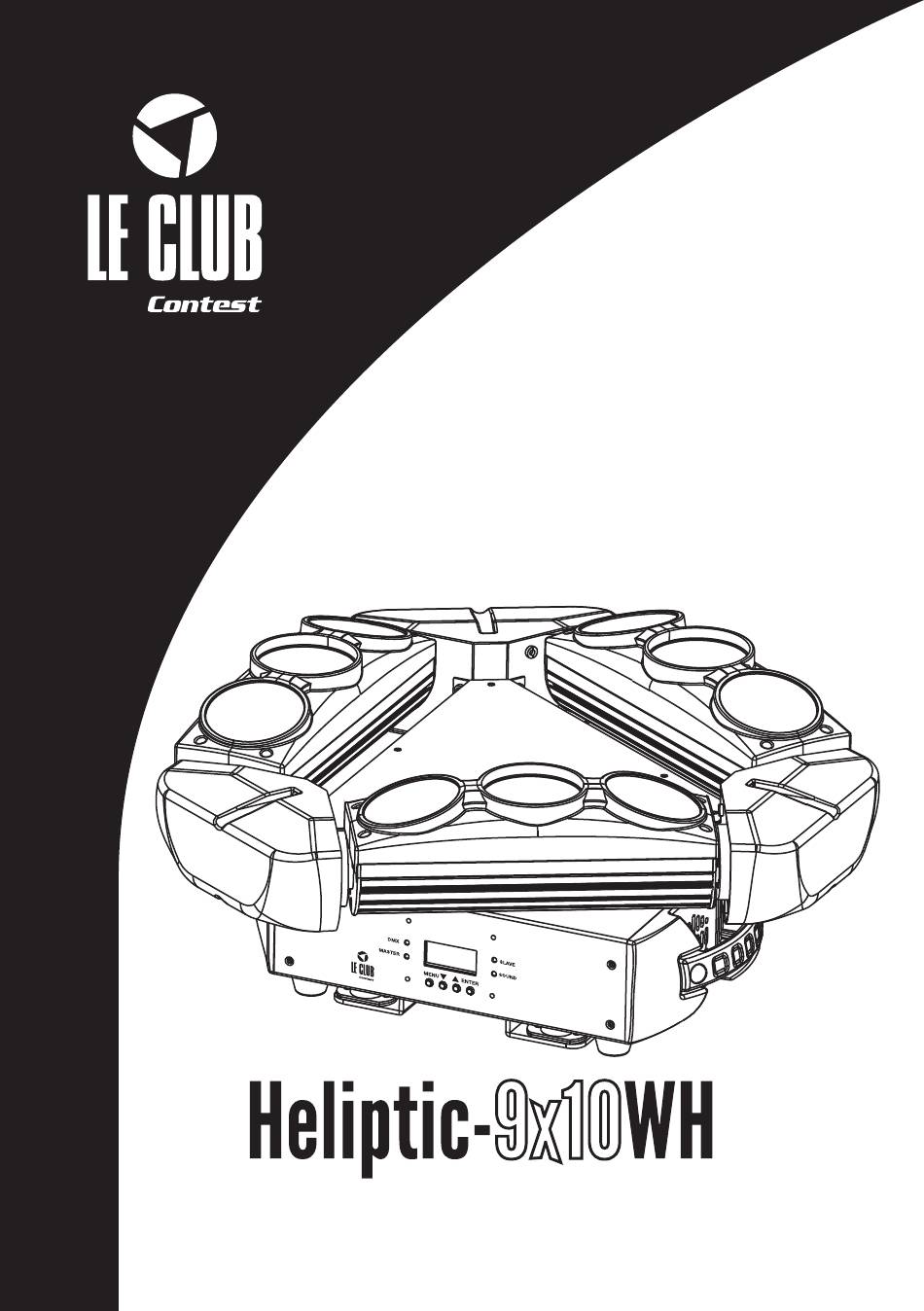

- Page 1 3 X 3 W H I T E B E A M S A N I M AT I O N P R O J E C T O R W I T H N O N - S T O P PA N R OTAT I O N USER QUIDE 10311 - 1 January 2015 version...
-
Page 2: Important Safety Information
In order to avoid any electrical malfunction, please do not use any Any maintenance procedure must be performed by a CONTEST authorised multi-socket, power cord extension or connecting system without technical service. -
Page 3: Technical Specifications
HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation English 2 - Technical specifications Light source Package contents : › 9x10W Dazzling white LEDs - 50 000 hours (expected) The package must include the following articles: › 6° aperture angle (individual lenses) ›... -
Page 4: Rear Panel Description
English HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation 3 - Rear panel description Indicator LEDs Stereo Jack 6.35 input These 4 LEDs indicate the device status. This input allows you to plug in the EASY-2 optional remote control. -
Page 5: Internal Menu
HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation English 4 - Internal menu Once turned on, the moving head will start a position initialisation for each motor. At this stage, the display indicates . Once the initilisation is over, the display will indicate , you will then be able to access the menu using the MENU or ENTER buttons. - Page 6 English HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation MENU UP and DOWN Action ENTER Activates the PAN movement reversion when the Slave and Show modes are activated, Saves or in DMX mode. changes Press ENTER and select Normal or Reverse with UP and DOWN. Activates the bar 1 TILT movement reversion when the Slave mode is activated, or in Saves DMX mode.
- Page 7 HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation English 5 - The various DMX modes Press the MENU button for more than 3 seconds to activate the DMX mode. 5.1 - 1-channel mode Channels Values Action 000 - 007 Black-out 008 - 015 Show 0 automatic...
- Page 8 English HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation 5.2 - 11-channel mode (continuation and end) Movement macros speed 000 - 247 Increasing speed 248 - 255 Music-sensitive mode Main dimmer 000 - 007 Black-Out 008 - 255 Dimmer: 0 - 100% Strobe 000 - 015...
- Page 9 HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation English 5.3 - 16-channel mode (continuation and end) Main dimmer 000 - 007 Black-Out 008 - 255 Dimmer: 0 - 100% Strobe 000 - 015 Black-out 016 - 131 Stroboscope at increasing speed 132 - 139 Open...
- Page 10 English HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation 5.4 - 18-channel mode (continuation and end) Main dimmer 000 - 007 Black-Out 008 - 255 Dimmer: 0 - 100% Strobe 000 - 015 Black-out 016 - 131 Stroboscope at increasing speed 132 - 139 Open...
- Page 11 HELIPTIC-9x10WH - 3x3 White beams animation projector with non-stop PAN rotation English 6 - DMX cabling and addressing for each mode Unit 1 Unit 2 Unit 3 Unit 4 DMX mode Unit 1 address Unit 2 address Unit 3 address Unit 4 address 1 channel 11 channels...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
