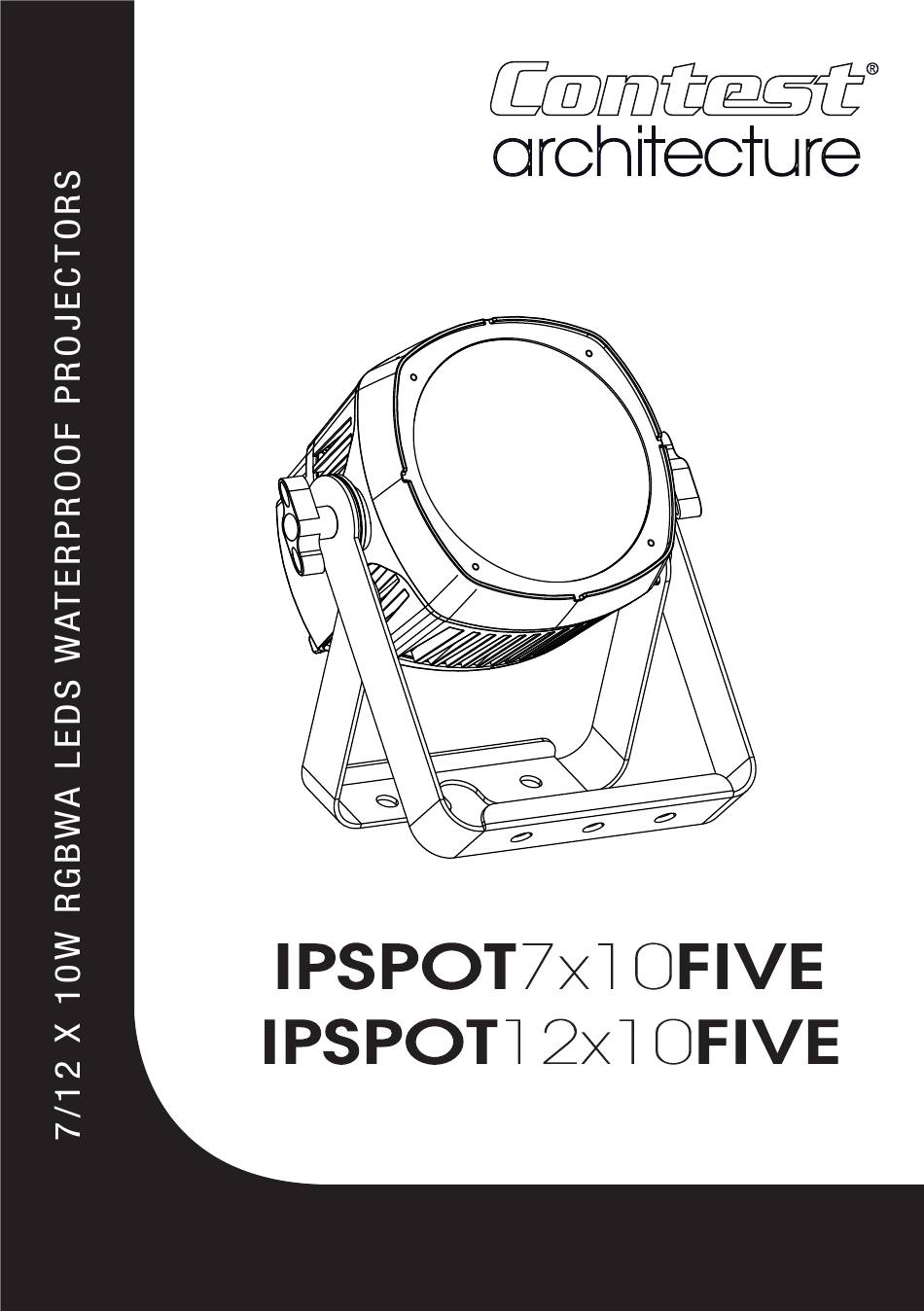

- Page 1 GUIDE DE L’UTILISATEUR USER GUIDE 10705/10706 - Version 1 / 02-2017 10792-10793- Version 1 / 01-2018...
-
Page 2: Important Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. -
Page 3: Technical Specifications
IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English 2 - Technical specifications Optical Additional information › LEDs : › Power supply: 100-240V/50-60Hz • 7 x 10W RGBWA LEDs (10792 - IPSPOT7x10FIVE) › Power consumption: • 12 x 10W RGBW LEDs (10793 - IPSPOT12x10FIVE) •... - Page 4 IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English 3 - Overview Power input DMX input / output © © Allows you to connect your projector to the mains viaSeetronic 5-pin XLR IP Seetronic XLR input hardwired as follows: Power IP/ 2 poles + earth cord. This power cord is supplied - Pin 1 : Mass with the projector.
- Page 5 IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English 4 - Internal menu 4.1 - Initialisation Upon initialisation, the display will indicate: Update Wait ... The projector will then check for available updates. It will then initialise, and the display will indicate: IPSPOT IPSPOT 7x10FIVE...
- Page 6 IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English Allows you to turn off the backlight when the screen has Backligh been inactive. From 1 to 60 seconds. Allows you to lock menu buttons. LCD.Set For Key Lock ON : Press the MODE button for 3 seconds Key Lock to unlock them again.
- Page 7 IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English PlayUser Time Sets the user programs duration. Time 00 - 99 PlayUser Fade Sets the fading time between each user program. Fade 00 - 99 PlayUser Flash PlayUser Configures the strobe intensity during user programs. Menu Flash 00 - 99...
-
Page 8: Dmx Modes
IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English 5 - DMX modes The projector enters DMX mode as soon as an incoming DMX signal has been detected. 5.1 - 2-channel mode Channel Values Action Colour and macros 000 - 007 LED off 008 - 015 016 - 023... - Page 9 IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English 5.2 - 5-channel mode Channel Values Action 000 - 255 000 : black out - 255 : 100% Green 000 - 255 000 : black out - 255 : 100% Blue 000 - 255 000 : black out - 255 : 100% White 000 - 255...
- Page 10 IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English 5.4 - 9-channel mode (next and last part) Channel Values Action Dimmer 000 - 255 Adjustable output from 0 to 100% Strobe 000 - 031 LED off 032 - 063 LED on 064 - 095 Strobe effect at increasing speed 096 - 127...
- Page 11 IPSPOT7/12x10FIVE -7/12 x 10W LEDs waterproof projectors English 6 - Macros composition Macros composition Macro 1 Sequence: Red, Orange, Yellow, Green, Cyan, Blue, Pink, Magenta, Cold White, Warm White: step-mode Macro 2 Sequence: Red, Vert, Blue, White + Pastel colours: step-mode Macro 3 Red to Yellow crossfade Macro 4...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
