Page 1: User Guide

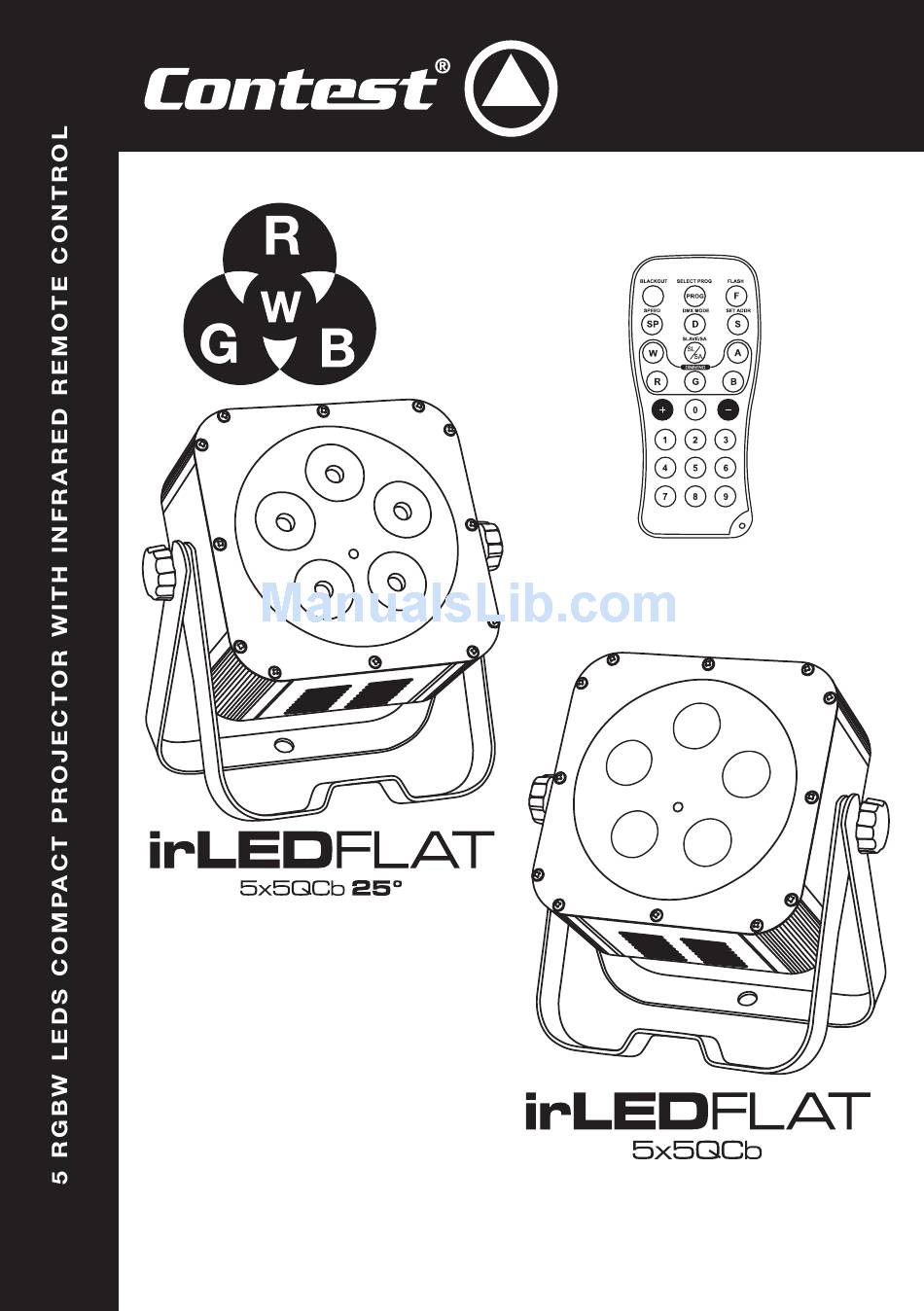

USER GUIDE 9917 / 9973 - Version 2.0 / 11-2012... - Page 2 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English Page 2...
-
Page 3: Important Safety Information
In order to avoid any electrical malfunction, please do not use any Any maintenance procedure must be performed by a CONTEST multi-socket, power cord extension or connecting system without authorised technical service. Basic cleaning operations must tho- making sure they are perfectly isolated and present no defect. -
Page 4: Technical Specifications

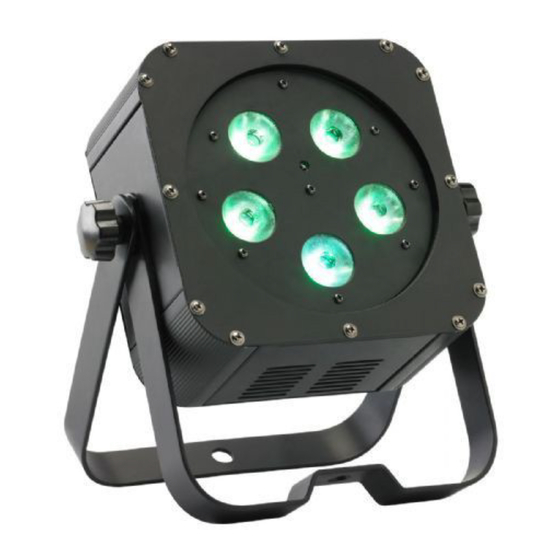

irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 2 - Introduction These projectors is equipped with 5 super-powerful RGBW LEDs with high-performance individual lenses. In addition to primary colours (such as blue, red, green...) the white shades and Amber create warm and brightful colours. -
Page 5: Dmx Input
irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 4 - Rear pannel description Power input/output socket Display Allows you to connect the projector to an This intuitive display allows you to configure your electrical outlet and to link several projectors projector. -
Page 6: Menus And Functions
irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 5 - Menus and functions Access the internal menu by pressing MODE. To access a submenu, press MODE again. Press SETUP to configure the selected function. Simultaneously press MODE and UP if you want the display to stay lit all the time. If you want the display to lit off when the menu remains inactive for more than 20 seconds, press simultaneously MODE and DOWN. - Page 7 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English RGB Mode RGB mode: 1-10 colour selection, colour programs, and 4 colour Colours programs with crossfade RGB Mode RGB mode: Strobe speed : FS.00 = No strobe ; FS.99 = Full Strobe speed RGB Mode...
- Page 8 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 6 - The various DMX modes 6.1 - 2-channel mode= Pure RGB (no white) = CHANNEL 1 CHANNEL 2 DMX values Effects DMX values Effects 000 - 015 016 - 030 031 - 045 Orange...
- Page 9 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 6.5 - 6-channel mode= Pure RGB (no white)= CH 6 CH 5 CH 4 CH 3 CH 2 CH 1 DMX values Function Blue Green (000 - 255) (000 - 255) (000 - 255) 000 - 015...
- Page 10 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 6.6 - 2-channel mode= RGB with white (Pure RGB compatible) = CHANNEL 1 CHANNEL 2 DMX values Effects DMX values Effects 000 - 007 008 - 015 016 - 023 Orange 024 - 030...
- Page 11 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 6.8 - 5-channel mode= RGBW with white (Pure RGB compatible) = DMX values Effects CHANNEL1 000 - 255 Red from 0 to 100% CHANNEL 2 000 - 255 Green from 0 to 100% CHANNEL 3 000 - 255...
- Page 12 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 6.10 - 7-channel mode = RGBW (Pure RGB compatible) = CH 7 CH 6 CH 5 CH 4 CH 3 CH 2 CH 1 DMX values Function Blue Green White...
- Page 13 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 6.11 - 5-channel mode = RGBW = Valeur DMX Effet CHANNEL1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255 Blue from 0 - 100%...
- Page 14 irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 6.13 - 7-channel mode = RGBW = CH 7 CH 6 CH 5 CH 4 CH 3 CH 2 CH 1 DMX values Function Blue Green White (000 - 255) (000 - 255) (000 - 255)
-
Page 15: Infrared Remote Control
irLEDFLAT QC - 5 RGBW LEDs compact projector with infrared remote control English 7 - Infrared remote control The infrared remote control supplied with the projectors allows you to remotely access all the functions of the projectors. The infrared sensor is located on the front of the projector. Note : The remote control can also be used when the projector is in DMX mode. - Page 16 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
