Intesis INMBSDAL0640200 Installation Sheet page 2

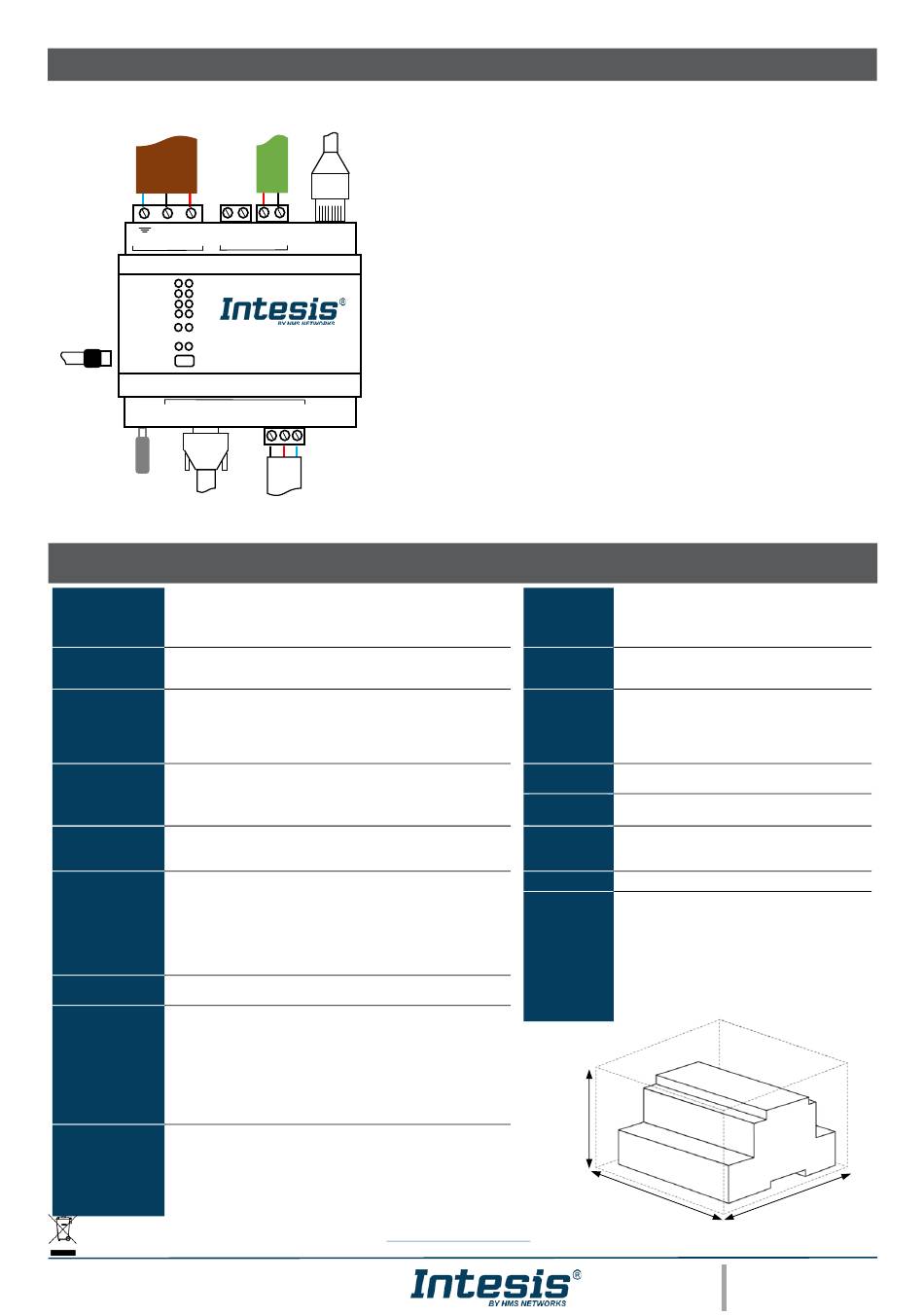

CONNECTIONS
Power Supply
zzzzz
- +
Power
Run / Error
Eth.
Link/Spd
PortA
TX/RX
PortB
TX/RX
Button A
Button B
Console
Console
Port
USB
EIA 232
USB
Modbus RTU
storage
EIA232
ELECTRICAL & MECHANICAL FEATURES
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with
ferrule)
Terminal Wiring
1 core: 0.5mm
(for power supply and
low-voltage signals) 2 cores: 0.5mm
3 cores: not permitted
1 x Plug-in screw terminal block (3 poles)
Power
Positive, Negative, Earth
24VDC +/-10%
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x DALI port (Plug-in screw terminal block orange 2 poles)
1500VDC isolation from other ports
DALI guaranteed power: 235mA
Port A DALI maximum power 250 mA
Voltage rating: 16VDC
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
1 x DIP-Switch for PORT A configuration:
Switch A
Reserved for future use
(SWA)
1 x Serial EIA232 (SUB-D9 male connector)
Modbus RTU
1500VDC isolation from other ports
(except PORT B: EIA485)
PORT B
1 x Serial EIA485 (Plug-in screw terminal block 3 poles)
A, B, SGND (Reference ground or shield)
1500VDC isolation from other ports
(except PORT B: EIA485)
1 x DIP-Switch for serial EIA485 configuration:
Position 1:
ON: 120 Ω termination active
Switch B
Off: 120 Ω termination inactive
(SWB)
Position 2-3:
ON: Polarization active
Off: Polarization inactive
This marking on the product, accessories, packaging or literature (manual) indicates that the product contains electronic
parts and they must be properly disposed of by following the instructions at
Rev.1.3
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
Power Supply
Ethernet
Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply. Respect polarity
DALI
applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (check table
Modbus TCP
below). The power supply can be connected to earth but only through the negative terminal, never
through the positive terminal.
Ethernet / Modbus TCP / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector ETH of the gateway. Use an Ethernet
CAT5 cable. If communicating through the LAN of the building, contact the network administrator and
make sure traffic on the port used is allowed through all the LAN path (check the gateway user manual
for more information). With factory settings, after powering up the gateway, DHCP will be enabled for 30
seconds. After that time, if no IP is provided by a DHCP server, the default IP 192.168.100.246 will be
A1 A2 A3 A4
set.
Port A
SW A Ethernet Port
PortA / DALI
Connect the DALI bus to connectors A3 (DA+) A4 (DA-), of gateway's PortA. The Intesis gateway
provides 16VDC (+/-2%) DALI voltage to the bus.
PortB / Modbus RTU
Connect the EIA485 bus to connectors B1 (B+), B2 (A-) and B3 (SNGD) of gateway's PortB. Respect
the polarity. Remember the characteristics of the standard EIA485 bus: maximum distance of 1200
meters, maximum 32 devices connected to the bus, and in each end of the bus it must be a termination
resistor of 120 Ω. The gateway has an internal bus biasing circuit that incorporates the termination
resistor. If you install the gateway in one of the ends of the bus, then do not install an additional
termination resistor in that end.
SW B
Port B
Connect the serial cable EIA232 coming from the external serial device to the EIA232 connector of
gateway's PortB. This is a DB9 male (DTE) connector in which only the lines TX, RX and GND are used.
B1 B2 B3
Details of the pinout can be seen in the user's manual. Respect the maximum distance of 15 meters.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between
the Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check
the user manual for more information.
Modbus RTU
USB
EIA485
Connect a USB storage device (not a HDD) if required. Check the user manual for more information.
w h): 90x88x56 mm
x x
w h): 130x100x100mm
x x
... 2.5mm
2 2
... 1.5mm
2 2
https://intesis.com/weee-regulation
Size: Coin 20mm x 3.2mm
Battery Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Console
Mini Type-B USB 2.0 compliant
Port 1500VDC isolation
Type-A USB 2.0 compliant
Only for USB flash storage device (USB pen
USB port drive)
Power consumption limited to 150mA (HDD
connection not allowed)
Button A: Check the user manual
Push Button
Button B: Check the user manual
Operation
0°C to +50°C
Temperature
Operational
5 to 95%, no condensation
Humidity
Protection IP20 (IEC60529)
10 x On board LED indicators
2 x Error (red) / Power LED
2 x Ethernet Link / Speed
LED
2 x Port A TX/RX
Indicators
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
100 mm (h)
100 mm (w)
URL
130 mm (d)
https://www.intesis.com
