Summary of Contents for Christie 38-MX3001-01

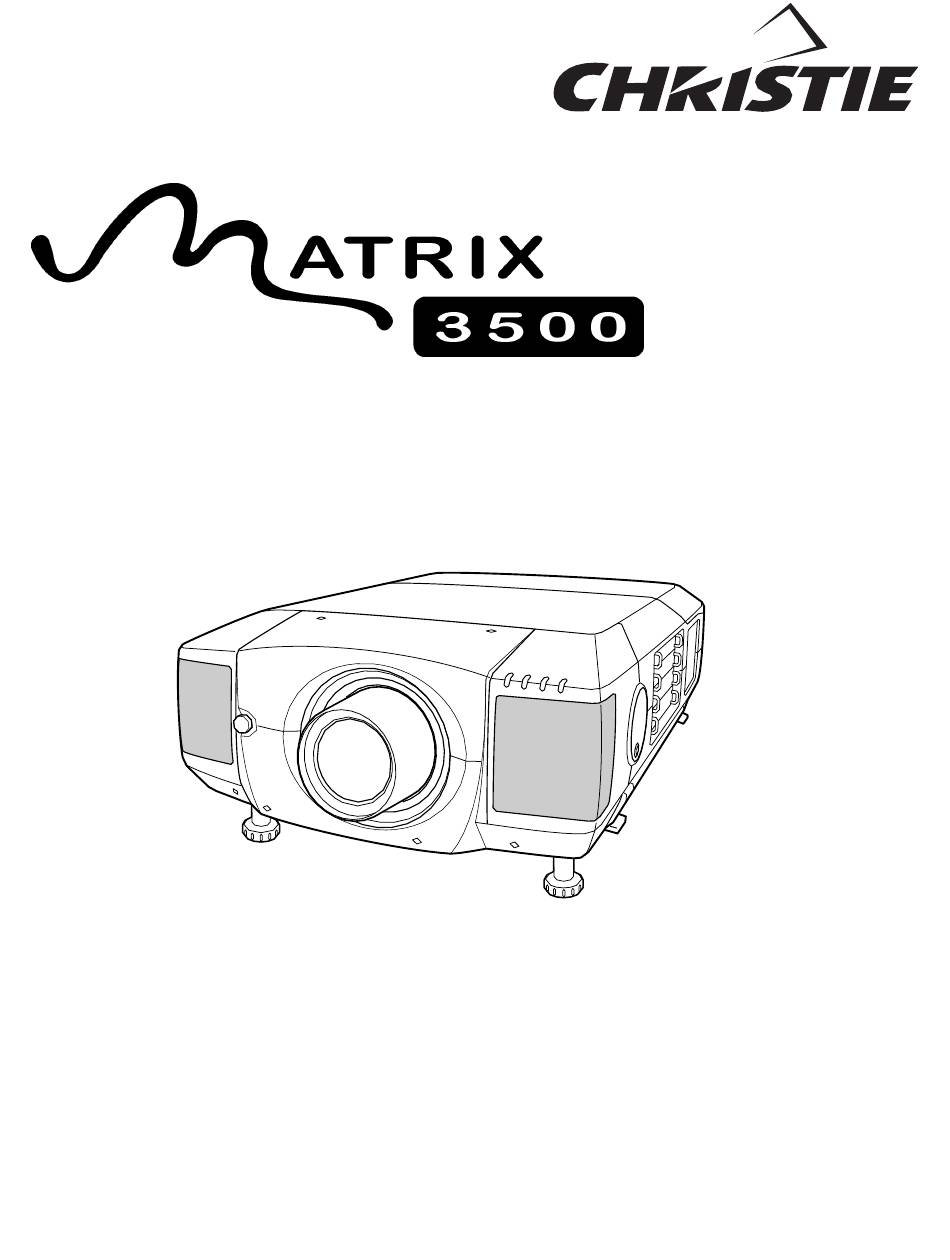

  • Page 1 38-MX3001-01 MODEL ✽ Projection lens is optional. User's Manual...
  • Page 2 TO THE OWNER Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.
  • Page 3 SAFETY INSTRUCTIONS All the safety and operating instructions should be read before This projector should be operated only from the type of power the product is operated. source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or Read all of the instructions given here and retain them for later local power company.
  • Page 4 COMPLIANCES Federal Communication Commission Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FEATURES AND DESIGN COMPUTER MODE SELECTING INPUT SOURCE SELECTING COMPUTER SYSTEM PREPARATION COMPATIBLE COMPUTER SPECIFICATIONS PC ADJUSTMENT NAME OF EACH PART OF PROJECTOR AUTO PC ADJUSTMENT MANUAL PC ADJUSTMENT SETTING-UP PROJECTOR PICTURE IMAGE ADJUSTMENT CONNECTING AC POWER CORD IMAGE LEVEL SELECT LENS INSTALLATION IMAGE LEVEL ADJUSTMENT...

  • Page 6: Features And Design

    FEATURES AND DESIGN This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Motor-driven Lens Shift Compatibility This projector widely accepts various video and Projection lens can be moved up, down left and right with...

  • Page 7: Preparation

    PREPARATION NAME OF EACH PART OF PROJECTOR FRONT OF CABINET SPEAKERS INFRARED POWER CORD REMOTE RECEIVER CONNECTOR PROJECTION LENS MAIN ON / OFF SWITCH LENS COVER CAUTION CARRYING HANDLE Do not turn on a projector with lens cover LEVEL AND TILT ADJUST HANDLE attached.

  • Page 8: Setting-Up Projector

    PREPARATION SETTING-UP PROJECTOR CONNECTING AC POWER CORD This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects correct input voltage. It is designed to work with single- phase power systems having a grounded neutral conductor.

  • Page 9: Lens Installation

    PREPARATION LENS INSTALLATION Before setting up a projector, install Projection Lens on a Projector. 1. Before installation, check where a projector is used and prepare suitable lens. For specifications of Projection Lens, refer to manual separately attached or contact sales dealer where you purchased a projector. 2.

  • Page 10: Picture Level And Tilt Adjustment

    PREPARATION PICTURE LEVEL AND TILT ADJUSTMENT REAR ADJUSTABLE Picture tilt and projection angle can be adjusted with FEET. (Refer to P7). handles on both sides of a projector. Projection angle can be adjusted to 5.7 degrees upper way. LEVEL AND TILT ADJUST HANDLE Press knob on handle.

  • Page 11: Connecting Projector

    CONNECTING PROJECTOR TERMINALS OF PROJECTOR This projector applies various input/output terminals and 4 terminal slots for expansion to tune to diversity of signals from computers and video equipment. 4-built-in Terminal Slots enable you to arrange desired combinations of input sources just by changing Terminal Boards.
  • Page 12 CONNECTING PROJECTOR INPUT/OUTPUT TERMINALS AND JACKS INPUT 2 INPUT 1 INPUT 1, 2, 3, 4 DVI INPUT TERMINAL 5 BNC INPUT JACKS AUDIO INPUT JACKS Connect component video output (Cr, Y, Connect computer output Connect audio output (Digital/Analog DVI-I type) from computer or video Cb or Pr, Y, Pb) from video equipment to R/Pr, G/Y and B/Pb jacks or connect...
  • Page 13 CONNECTING PROJECTOR USB PORT (Series B) SERIAL PORT IN TERMINAL This port is used to control a projector with computer. It is also used to If you control a projector by computer, control computer with Remote Control you must connect a cable (not provided) of this projector.

  • Page 14: Connecting To Computer

    CONNECTING PROJECTOR CONNECTING TO COMPUTER Cables used for connection ✽ = Cables are not supplied with this projector.) • VGA Cable (HDB 15 pin) NOTE : • Control Cable for PS/2 port, Serial port, or ADB port When connecting cable, power cords of both a •...

  • Page 15: Connecting To Video Equipment

    CONNECTING PROJECTOR CONNECTING TO VIDEO EQUIPMENT Cables used for connection NOTE : • Video Cable (BNC x 1, BNC x 2 or BNC x 3) ✽ When connecting cable, power cords of both a projector and external equipment should be •...

  • Page 16: Before Operation

    BEFORE OPERATION SIDE CONTROLS AND INDICATORS REAR INDICATORS SIDE CONTROLS FRONT INDICATORS SIDE CONTROLS FOCUS BUTTONS VOLUME BUTTONS POWER ON–OFF BUTTON ZOOM BUTTONS Used to adjust focus. (P23) Used to adjust volume. Used to turn a projector on Used to adjust zoom. (P25) or off.
  • Page 17 BEFORE OPERATION INDICATORS FRONT INDICATORS LAMP READY WARNING TEMP. LAMP REPLACE LAMP REPLACE INDICATOR LAMP INDICATOR WARNING TEMP. INDICATOR READY INDICATOR This indicator flashes red This indicator lights green This indicator is dim when a This LAMP REPLACE projector is turned on. And when internal projector when a projector is ready to indicator lights yellow when...

  • Page 18: Operation Of Remote Control

    BEFORE OPERATION OPERATION OF REMOTE CONTROL Left Side LASER POINTER INDICATOR POWER ON-OFF BUTTON Lights red while laser beam Used to turn projector on or is emitted from Laser Light off. (P22) ON-OFF Window. INPUT 1/2 BUTTON ZOOM FOCUS VOLUME Used to select input source either INPUT 1 or INPUT 2.

  • Page 19: Remote Control Batteries Installation

    BEFORE OPERATION Operating Range ON-OFF Point Remote Control Unit toward ZOOM BUTTON projector (Receiver Window) Used to adjust zoom. whenever pressing any button. (P23) ZOOM FOCUS VOLUME VOLUME BUTTON Maximum operating range for Used to adjust volume. Remote Control Unit is about 16.4’ (P25) (5m) and 60°...

  • Page 20: Operating On-Screen Menu

    BEFORE OPERATION OPERATING ON-SCREEN MENU HOW TO OPERATE ON-SCREEN MENU You can control and adjust this projector through ON-SCREEN WIRELESS REMOTE CONTROL MENU. Refer to following pages to operate each adjustment on POINT BUTTON ON-SCREEN MENU. Used to move Pointer UP/ DOWN/ RIGHT/ LEFT.

  • Page 21: Menu Bar

    BEFORE OPERATION MENU BAR FOR PC SOURCE Press MENU BUTTON while connecting to PC input source. IMAGE SELECT MENU SCREEN MENU SETTING MENU Used to select Used to adjust size Used to change GUIDE WINDOW PC SYSTEM MENU image level among of image.

  • Page 22: Basic Operation

    BASIC OPERATION TURNING ON / OFF PROJECTOR TURNING ON PROJECTOR Complete peripheral connections (with Computer, VCR, etc.) before turning on projector. (Refer to "CONNECTING TO LAMP STATUS PROJECTOR" on Pages 12~15 for connecting that equipment.) INPUT 1 Connect a projector's AC Power Cord into a wall outlet and turn MAIN ON / OFF SWITCH to ON.

  • Page 23: Adjusting Screen

    BASIC OPERATION ADJUSTING SCREEN ZOOM ADJUSTMENT Press ZOOM L/M button on Side Control or on Remote Control Unit. Message “Zoom” is displayed. Press ZOOM L button to make image larger, and press ZOOM Zoom M button to make image smaller. Message disappears after 4 seconds.

  • Page 24: Picture Freeze Function

    BASIC OPERATION PICTURE FREEZE FUNCTION Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button except POINT / SELECT / RIGHT CLICK / LASER button. NO SHOW FUNCTION Press NO SHOW button on Remote Control Unit to black out a image.

  • Page 25: Sound Adjustment

    BASIC OPERATION SOUND ADJUSTMENT Indicates roughly level of DIRECT OPERATION volume. Volume Press VOLUME (+/–) button(s) on Side Control or on Remote Control Unit to adjust volume. Volume dialog box appears on screen for a few seconds. (+) button to increase volume, and (–) button for decreasing. Mute Press MUTE button on Remote Control Unit to cut off sound.

  • Page 26: Computer Mode

    COMPUTER INPUT SELECTING INPUT SOURCE INPUT 1/2 button INPUT 3/4 button DIRECT OPERATION INPUT 1 INPUT 3 Select INPUT source by pressing INPUT 1/2 and INPUT 3/4 buttons on Side Control or on Remote Control Unit. INPUT 2 INPUT 4 MENU OPERATION Press MENU button and ON-SCREEN MENU will appear.
  • Page 27 COMPUTER INPUT AUTOMATIC MULTI-SCAN SYSTEM This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA, SXGA or UXGA (refer to “COMPATIBLE COMPUTER SPECIFICATIONS” on page 28). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting. (Some computers need setting manually.) Note : Projector may display one of following messages.

  • Page 28: Compatible Computer Specifications

    COMPUTER INPUT COMPATIBLE COMPUTER SPECIFICATIONS Basically this projector can accept a signal from all computers with V, H-Frequency mentioned below and less than 230 MHz of Dot Clock. ON-SCREEN H-Freq. V-Freq. ON-SCREEN H-Freq. V-Freq. RESOLUTION RESOLUTION DISPLAY (kHz) (Hz) DISPLAY (kHz) (Hz) VGA 1...

  • Page 29: Pc Adjustment

    COMPUTER INPUT PC ADJUSTMENT AUTO PC ADJUSTMENT Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows. Auto PC Adj. Press MENU button and ON-SCREEN MENU will appear.

  • Page 30: Manual Pc Adjustment

    COMPUTER INPUT MANUAL PC ADJUSTMENT This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system of this projector.
  • Page 31 COMPUTER INPUT Display area Selects area displayed with this projector. Select resolution at Display area dialog box. Press SELECT button at Display area icon and Display Display area H area dialog box appears. Adjustment of horizontal area displayed with this projector. Press Display area POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

  • Page 32: Picture Image Adjustment

    COMPUTER INPUT PICTURE IMAGE ADJUSTMENT IMAGE LEVEL SELECT (DIRECT) Select image level among Standard, Real, Image 1, Image 2, Image 3 IMAGE button and Image 4 by pressing IMAGE button on Side Control or on Remote Standard Control Unit. Real Standard Normal picture level preset on this projector.

  • Page 33: Image Level Adjustment

    COMPUTER INPUT IMAGE LEVEL ADJUSTMENT Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE ADJUST MENU IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button.

  • Page 34: Picture Screen Adjustment

    COMPUTER INPUT PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display desirable image size. Press MENU button and ON-SCREEN MENU will appear. Press SCREEN MENU POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon.

  • Page 35: Video Mode

    VIDEO INPUT SELECTING INPUT SOURCE WHEN SELECT INPUT 2 (5 BNC SLOT ) When connect component video output (Cr, Y, Cb or Pr, Y, Pb) from INPUT MENU video equipment to R/Pr, G/Y and B/Pb jacks. Press MENU button and ON-SCREEN MENU will appear. Press INPUT Menu icon POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

  • Page 36: Selecting Video System

    VIDEO INPUT SELECTING VIDEO SYSTEM Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to AV SYSTEM Menu icon. Press POINT DOWN button to move a red arrow pointer to system that you want to select and then press SELECT button. VIDEO JACK OR S-VIDEO JACK AV SYSTEM MENU (VIDEO OR S-VIDEO) Auto...

  • Page 37: Picture Image Adjustment

    VIDEO INPUT PICTURE IMAGE ADJUSTMENT IMAGE LEVEL SELECT (DIRECT) Select image level among Standard, Cinema, Image 1, Image 2, IMAGE button Image 3 and Image 4 by pressing IMAGE button on Side Control or on Standard Remote Control Unit. Cinema Standard Normal picture level preset on this projector.

  • Page 38: Image Level Adjustment

    VIDEO INPUT IMAGE LEVEL ADJUSTMENT Press MENU button and ON-SCREEN MENU will appear. Press IMAGE ADJUST MENU POINT LEFT/RIGHT button(s) to move a red frame pointer to IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button.

  • Page 39: Picture Screen Adjustment

    VIDEO INPUT Store To store adjustment data, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to Image Level 1 to 4 and then press SELECT button. Image Level Menu Other icons operates as follows.

  • Page 40: Setting

    SETTING SETTING MENU Press MENU button and ON-SCREEN MENU will appear. Press SETTING MENU POINT LEFT/RIGHT button(s) to move a red-frame pointer to SETTING icon. Press POINT DOWN button to move a red-frame pointer to item Set a red frame SETTING Menu icon pointer to item and that you want to set and then press SELECT button.
  • Page 41 SETTING Power management This function turns Projection Lamp off when this projector detects signal interruption and is not used for a certain period in order to reduce power consumption and maintain Lamp-life. (This projector is Time left until Lamp off. shipped with this function ON.) Power Management function operates to turn Projection Lamp off when input signal is interrupted and any button is not pressed over 5...
  • Page 42 SETTING This Projector is equipped with USB port for interactive operation between a projector and computer. Set mode following steps below. Press SELECT button at this icon to Wireless Mouse mode display previous items. Select " " when controlling a computer with Remote Control of this projector.

  • Page 43: Appendix

    APPENDIX OPERATING WIRELESS MOUSE Wireless Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most Personal Computers. POINT buttons and two CLICK buttons are used for wireless mouse operation. This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen. When ON- SCREEN MENU or any message / dialog box is displayed on screen instead of PC mouse pointer, this Wireless Mouse function can not be used.

  • Page 44: Air Filter Care And Cleaning

    APPENDIX AIR FILTER CARE AND CLEANING Air Filter prevents dust from accumulating on surface of Projection Lens and Projection Mirror. Should Air Filter become clogged with dust particles, it will reduce Cooling Fans' effectiveness and may result in internal heat build up and adversely affect life of a projector.

  • Page 45: Lamp Management

    APPENDIX LAMP MANAGEMENT This Projector is equipped with 4 Projection Lamps to ensure brighter image and those lamps are controlled by Lamp Management Function. Lamp Management Function detects status of all lamps and shows status on screen or on LAMP REPLACE indicator.

  • Page 46: Lamp Replacement

    APPENDIX LAMP REPLACEMENT When the life of the Projection Lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the projection lamp with a new one promptly. FRONT INDICATORS REAR INDICATORS LAMP READY WARNING...
  • Page 47 ORDER REPLACEMENT LAMP Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following information to the dealer. Model No. of your projector 38-MX3001-01 Replacement Lamp Type No. 03-000749-01P (Service Parts No. 610 307 1657) LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly.

  • Page 48: Troubleshooting

    APPENDIX TROUBLESHOOTING Before calling your dealer or service center for assistance, check matters below once again. 1. Make sure you have connected a projector to your computer or video equipment as described in section "CONNECTING PROJECTOR" on pages 12 ~ 15. 2.
  • Page 49 You can often correct operating problems yourself. If a projector fails to work properly, see "TROUBLESHOOT- ING" section on page 48, 49. To correct failure, try "Solutions". If after following all operating instructions, you find that service is necessary, contact Christie Service Station or store where you purchased unit.

  • Page 50: Technical Specifications

    APPENDIX TECHNICAL SPECIFICATIONS Projector Type Multi-media Projector Dimensions 22.9" x 10" x 30.9" (581 mm x 252 mm x 783 mm) (W x H x D) Net Weight 81.7 lbs (37 kg) LCD Panel System 1.8" TFT Active Matrix type, 3 panels Panel Resolution 1600 x 1200 dots Number of Pixels...
  • Page 51 APPENDIX CONFIGURATIONS OF TERMINALS DVI-I TERMINAL (DIGITAL/ANALOG) This terminal accepts only Digital (TMDS) or Analog (RGB) output signal. Connect display output terminal of computer to this terminal with DVI cable (supplied). Pin Configuration Analog Red Input C1 C2 Analog Green Input Analog Blue Input Analog Horiz.
  • Page 52 APPENDIX SERIAL PORT IN/OUT TERMINAL Pin Configuration Connect serial port output terminal of computer to this terminal with Serial Cable (not supplied). ----- ----- Ground ----- ----- ----- ----- USB PORT TERMINAL Pin Configuration Connect USB port output terminal of computer or peripheral equipment to this terminal with USB port Cable (not supplied).
  • Page 53 APPENDIX...
  • Page 54 APPENDIX...
  • Page 55 APPENDIX...
  • Page 56 CHRISTIE DIGITAL SYSTEMS, Inc. CHRISTIE DIGITAL SYSTEMS, Inc. CHRISTIE DIGITAL SYSTEMS, Inc. CHRISTIE DIGITAL SYSTEMS, Inc. CHRISTIE DIGITAL SYSTEMS, Inc. 627A Aljunied Road 809 Wellington Street North 10550 Camden Drive ViewPoint Willicher Damm 129 #05-02 Biz Tech Centre Kitchener, Ontario...
