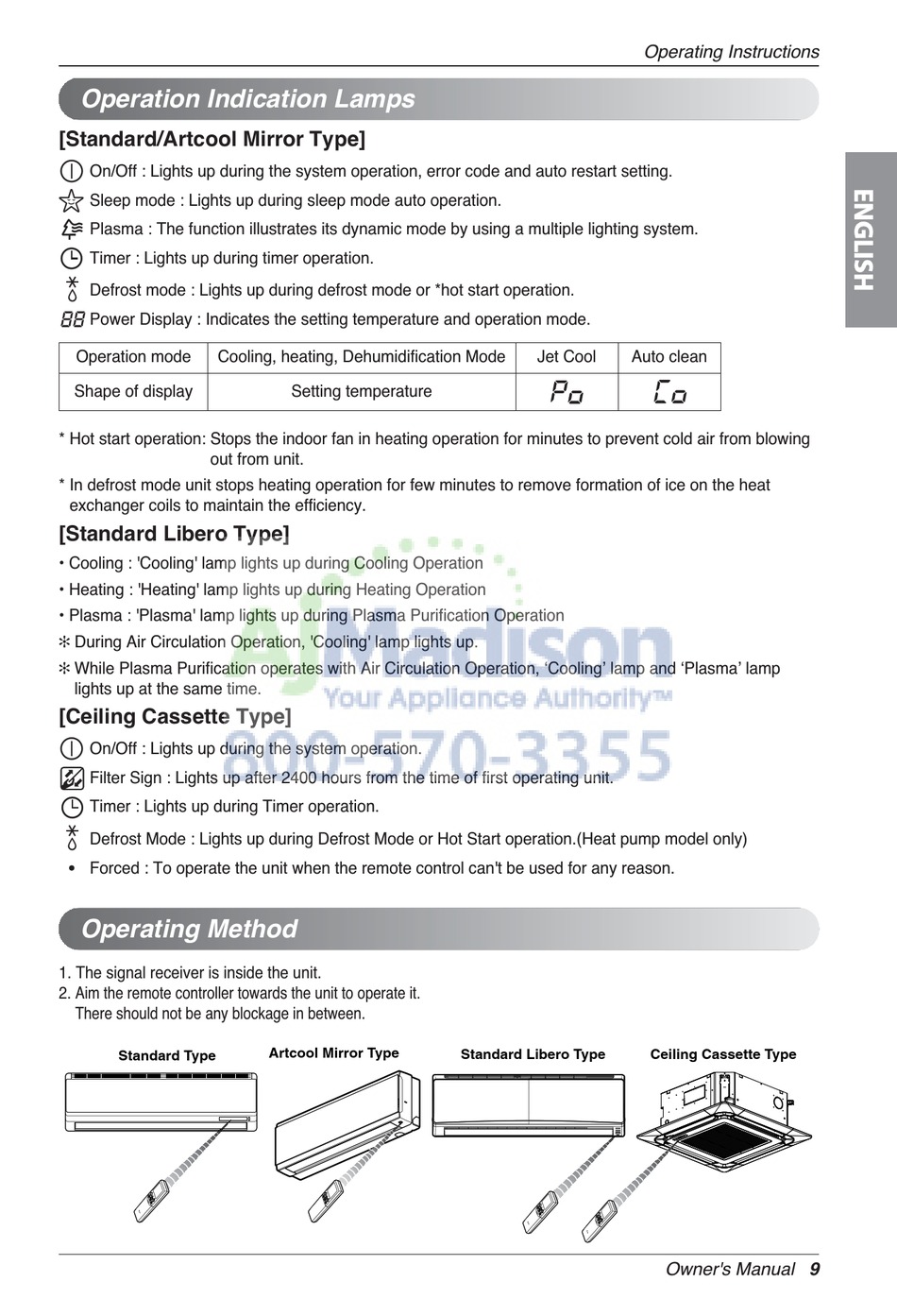

Operation Indication Lamps

[Standard/Artcool Mirror Type]
On/Off : Lights up during the system operation, error code and auto restart setting.
Sleep mode : Lights up during sleep mode auto operation.
Plasma : The function illustrates its dynamic mode by using a multiple lighting system.
Timer : Lights up during timer operation.
Defrost mode : Lights up during defrost mode or *hot start operation.
Power Display : Indicates the setting temperature and operation mode.
Operation mode Cooling, heating, Dehumidification Mode
Shape of display
* Hot start operation: Stops the indoor fan in heating operation for minutes to prevent cold air from blowing
out from unit.
* In defrost mode unit stops heating operation for few minutes to remove formation of ice on the heat
exchanger coils to maintain the efficiency.
[Standard Libero Type]
• Cooling : 'Cooling' lamp lights up during Cooling Operation
• Heating : 'Heating' lamp lights up during Heating Operation
• Plasma : 'Plasma' lamp lights up during Plasma Purification Operation
[ During Air Circulation Operation, 'Cooling' lamp lights up.
[ While Plasma Purification operates with Air Circulation Operation, ʻCoolingʼ lamp and ʻPlasmaʼ lamp
lights up at the same time.
[Ceiling Cassette Type]
On/Off : Lights up during the system operation.
Filter Sign : Lights up after 2400 hours from the time of first operating unit.
Timer : Lights up during Timer operation.
Defrost Mode : Lights up during Defrost Mode or Hot Start operation.(Heat pump model only)
Forced : To operate the unit when the remote control can't be used for any reason.

Operating Method

1. The signal receiver is inside the unit.
2. Aim the remote controller towards the unit to operate it.
There should not be any blockage in between.
Standard Type
Setting temperature
Artcool Mirror Type
Jet Cool
Standard Libero Type
Operating Instructions
Auto clean
Ceiling Cassette Type
Owner's Manual 9
