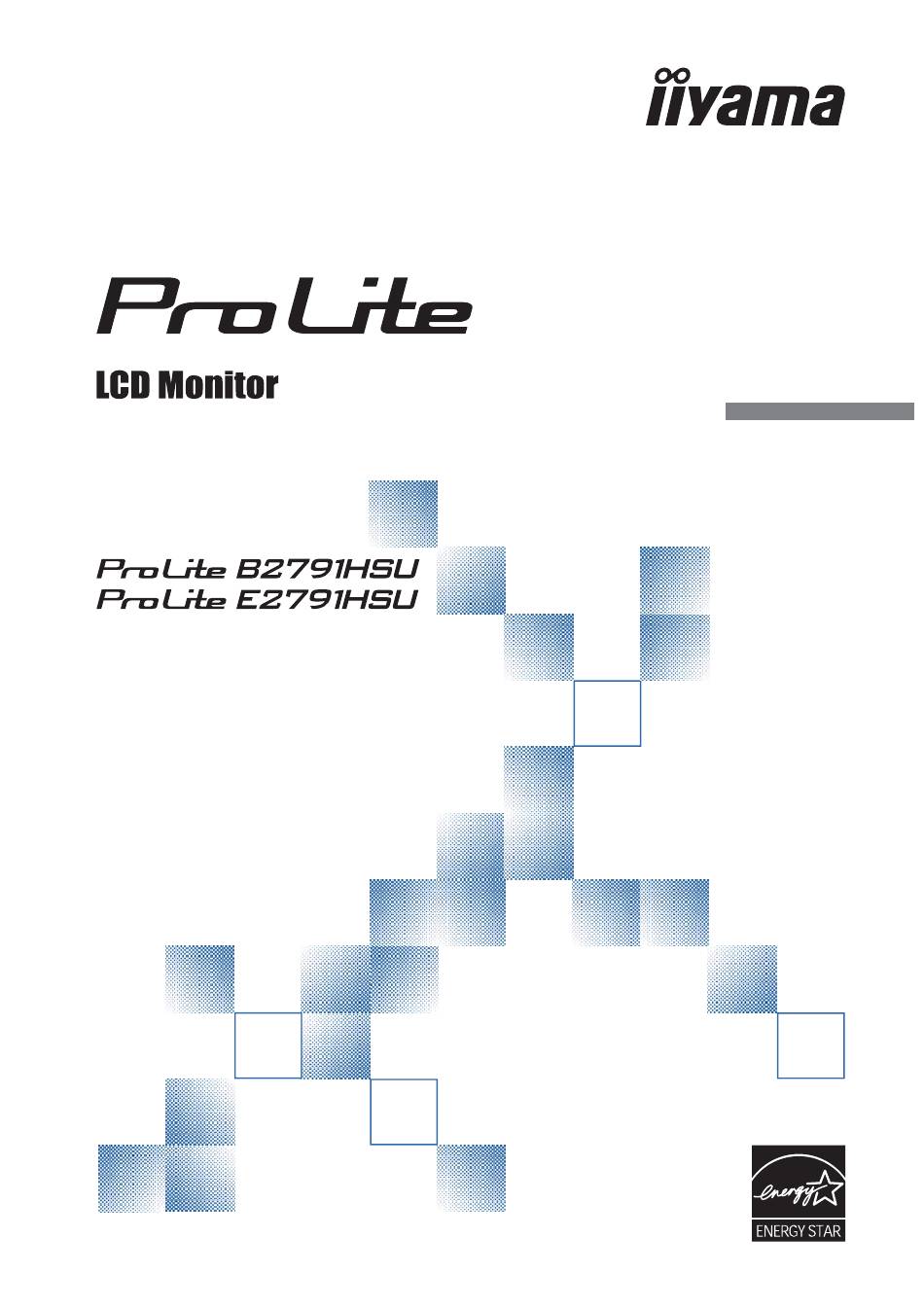

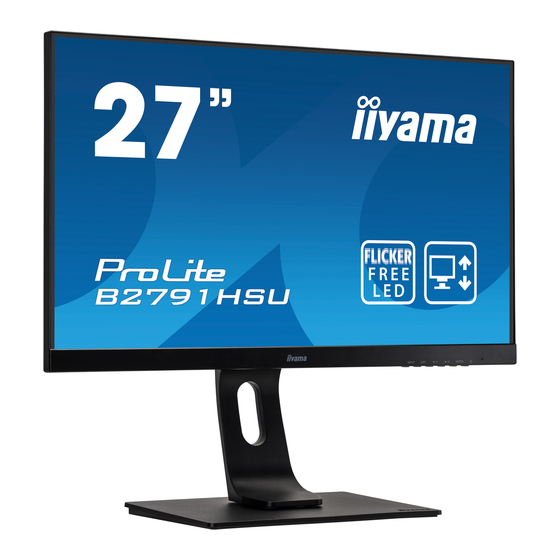

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2792H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE : ProLite B2791HSU ....6 FITTING AND REMOVAL OF BASE : ProLite E2791HSU ....7 CONTROLS AND CONNECTORS : ProLite B2791HSU ....8 CONTROLS AND CONNECTORS : ProLite E2791HSU ....9 CONNECTING YOUR MONITOR : ProLite B2791HSU ....10... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Fitting And Removal Of Base : Prolite B2791Hsu
FITTING AND REMOVAL OF BASE : ProLite B2791HSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. -
Page 11: Fitting And Removal Of Base : Prolite E2791Hsu
FITTING AND REMOVAL OF BASE : ProLite E2791HSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors : Prolite B2791Hsu
CONTROLS AND CONNECTORS : ProLite B2791HSU <Front> <Back> Power Indicator Blue: Normal operation NOTE Orange: Power Management Power Switch ( Menu / Select Button (ENTER) Scroll Down / Volume Button ( Scroll Up / ECO Mode Button ( Exit Button (EXIT) -
Page 13: Controls And Connectors : Prolite E2791Hsu
CONTROLS AND CONNECTORS : ProLite E2791HSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (ENTER) Scroll Down / Volume Button ( Scroll Up / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers USB Downstream Connector (... -
Page 14: Connecting Your Monitor : Prolite B2791Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 15: Connecting Your Monitor : Prolite E2791Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 16: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 31: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE : ProLite E2791HSU For optimal viewing it is recommended to look at the full face of the monitor. ... -
Page 17: Adjusting The Height And The Viewing Angle : Prolite B2791Hsu
45° avoid fi nger contact with the displays base when adjusting the height. Monitor Stand PANEL ROTATION : ProLite B2791HSU Adjust the mother’s height. Rotate the panel 90 degrees. Portrait: Turn clockwise. Landscape: Turn counter clockwise. Attempting to rotate without fully extending NOTE 90°... -
Page 18: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 22 for SCREEN ADJUSTMENTS. -
Page 19: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,3 Brightness * Too bright Off / -2 / -1 / 0 / +1 / +2 Overdrive It will improve the gray level response time of the LCD panel. A higher level results in a faster response time. - Page 20 Input Select Adjustment Item Problem / Option Button to Press Select the Analog input. HDMI Select the Digital (HDMI) input. Input Select Direct DisplayPort Select the Digital (DisplayPort) input. Search for an available input source and select Auto automatically. Input source is fi xed, not selected automatically when VGA, HDMI and DisplayPort which NOTE are selected.
- Page 21 Store User Setting Adjustment Item Problem / Option Button to Press User Mode 1 Save the settings of the screen adjustment. User Mode 2 Save the settings of the screen adjustment. Store User Setting User Mode 3 Save the settings of the screen adjustment. You can memorize your customized monitor settings.
- Page 22 Image Adjust Adjustment Item Problem / Option Button to Press Return to a state set by color adjustment except Off i-Style Color. For general windows environment and monitor Standard default setting. Sport Game For Sports game environment. FPS Game For FPS game environment. i-Style Color * Strategy Game For Strategy game environment.
- Page 23 OSD is too high You can set the OSD display duration time between OSD Time Out 5 and 30 seconds. iiyama Logo does not display when the monitor is Off turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
- Page 24 Display Information Displays information regarding the current input signal coming from the graphic card in your computer. Display Information 1 9 2 0 x 1 0 8 0 @ 6 0 H z See your graphic card user guide for more information about changing the NOTE resolution and refresh.
- Page 25 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front button ENTER for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.
-
Page 26: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 27 Pressing and holding of the INPUT Button for 2-3 seconds when the Menu is not displayed. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 28 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Pixel Clock may not be adjusted correctly. ...
-
Page 29: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 30: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 31: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 27... -
Page 32: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite B2791HSU Size Category 27" Panel technology Size Diagonal: 27" (68.6cm) Pixel pitch 0.311mm H × 0.311mm V Brightness 300cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available... -
Page 33: Specifications : Prolite E2791Hsu
SPECIFICATIONS : ProLite E2791HSU Size Category 27" Panel technology Size Diagonal: 27" (68.6cm) Pixel pitch 0.311mm H × 0.311mm V Brightness 300cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 1ms (Gray to Gray) Display Colors... -
Page 34: Dimensions : Prolite B2791Hsu
DIMENSIONS : ProLite B2791HSU 613.5mm/24.2” 54.0mm/2.1” 609.0mm/24.0” 300.0mm/11.8” ) : Maximum adjustment range DIMENSIONS : ProLite E2791HSU 613.5mm/24.2” 54.0mm/2.1” 609.0mm/24.0” 221.0mm/8.7” 30 APPENDIX... -
Page 35: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz VESA SXGA 1280 ×...
