Dometic RH440LGC Installation And Operating Manual

Dometic RH440LGC Installation And Operating Manual

Minibar

Advertisement

Quick Links

REFRIGERATION
MINI FRIDGES
RH440LDC, RH440LGC, CL440LDC, CL440LGC, CL460LDC, CL460LGC
Minibar
EN
Installation and Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH440LGC and is the answer not in the manual?

Questions and answers

Summary of Contents for Dometic RH440LGC

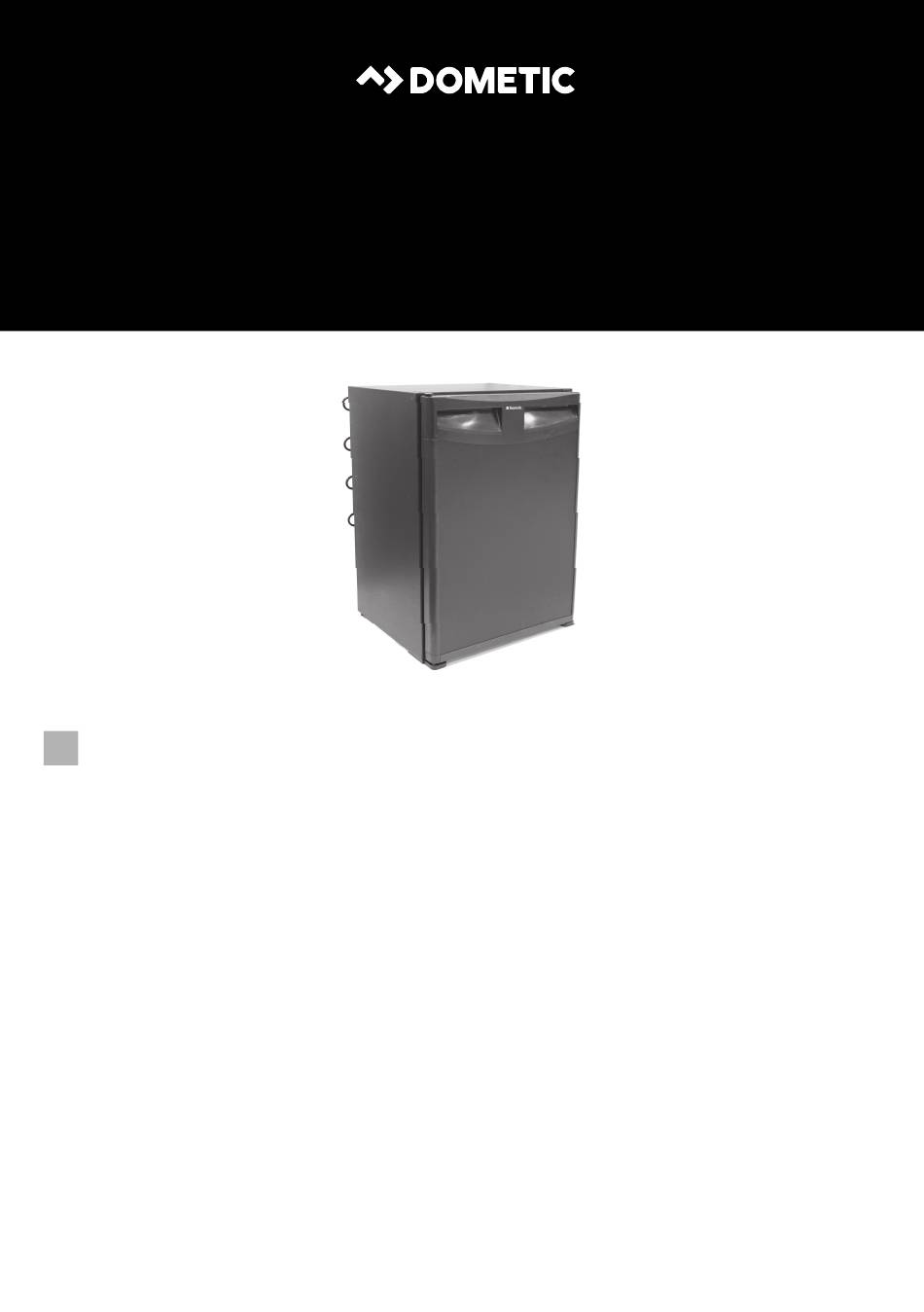

  • Page 1 REFRIGERATION MINI FRIDGES RH440LDC, RH440LGC, CL440LDC, CL440LGC, CL460LDC, CL460LGC Minibar Installation and Operating Manual...
  • Page 3 RH440, CL440, CL460...
  • Page 4 RH440, CL440, CL460 5 mm 5 mm...
  • Page 5 RH440, CL440, CL460 180°...
  • Page 6 RH440, CL440, CL460 180°...
  • Page 7 RH440, CL440, CL460 40 mm...
  • Page 8 RH440, CL440, CL460 90°...
  • Page 9 RH440, CL440, CL460...
  • Page 10 RH440, CL440, CL460...
  • Page 11: Table Of Contents

    RH440, CL440, CL460 Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it. The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.
  • Page 12: Explanation Of Symbols

    Explanation of symbols RH440, CL440, CL460 Explanation of symbols WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product.
  • Page 13 RH440, CL440, CL460 Safety instructions • Children must be supervised to ensure that they do not play with the cooling device. • Always keep and use the cooling device out of the reach of children under the age of 8 years. •...
  • Page 14: Intended Use

    Intended use RH440, CL440, CL460 • Danger of overheating! Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components. Do not place the cooling device in closed compartments or areas with none or minimal air flow.
  • Page 15: Installation

    RH440, CL440, CL460 Installation Installation The cooling device is designed for free-standing installation, but can be built-in if the following conditions are complied with to ensure satisfactory operation and maxi- mum cooling efficiency. • The cooling device must be levelled carefully to ensure proper function. •...
  • Page 16: Operation

    Operation RH440, CL440, CL460 Operation CAUTION! Health hazard! Food may only be stored in its original packaging or in suitable containers. NOTE • Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance”...
  • Page 17 RH440, CL440, CL460 Operation Using the cooling device NOTICE! Risk of damage • Ensure that the objects placed in the cooling device are suitable for cooling to the selected temperature. • Ensure that food or liquids in glass containers are not excessively refrigerated.
  • Page 18: Cleaning And Maintenance

    Cleaning and maintenance RH440, CL440, CL460 Cleaning and maintenance WARNING! Always disconnect the device from the power supply before you clean and service it. NOTICE! Risk of damage • Never clean the cooling device under running water or in dish water. •...
  • Page 19: Troubleshooting

    RH440, CL440, CL460 Troubleshooting Troubleshooting Problem Possible cause Suggested remedy No voltage present There is an interruption Establish a connection. in the battery – electronics connection. Main switch faulty (if Replace the main switch. installed) Additional supply line Replace the supply line fuse. fuse has blown (if installed).
  • Page 20: Technical Data

    Technical data RH440, CL440, CL460 Technical data The coolant circuit contains R134a. Contains fluorinated greenhouse gases Hermetically sealed equipment RH440LDC RH440LGC Gross capacity: 40 l Connection voltage: 100 – 240 Vw, 50/60 Hz Power consumption: 55 W 12.1 W (100 – 240 Vw, ECO mode) Temperature range: 4 °C …...
  • Page 21 RH440, CL440, CL460 Technical data CL440LDC CL440LGC Gross capacity: 38 l Connection voltage: 100 – 240 Vw, 50/60 Hz Power consumption: 55 W 12.1 W (100 – 240 Vw, ECO mode) Temperature range: 4 °C … 12 °C 4 °C … 12 °C Category: 1 (Fresh food storage 2 (Cellar)
  • Page 22 Technical data RH440, CL440, CL460 CL460LDC CL460LGC Gross capacity: 60 l Connection voltage: 100 – 240 Vw, 50/60 Hz Power consumption: 55 W 12.1 W (100 – 240 Vw, ECO mode) Temperature range: 4 °C … 12 °C 4 °C … 12 °C Category: 1 (Fresh food storage 2 (Cellar)
  • Page 24 AUSTRIA SOUTH AFRICA Dometic Austria GmbH MEXICO Dometic (Pty) Ltd. Neudorferstraße 108 Dometic Mx, S. de R. L. de C. V. Regional Office A-2353 Guntramsdorf Circuito Médicos No. 6 Local 1 South Africa & Sub-Saharan Africa  +43 2236 908070 Colonia Ciudad Satélite...
