Summary of Contents for Clarion CZ100

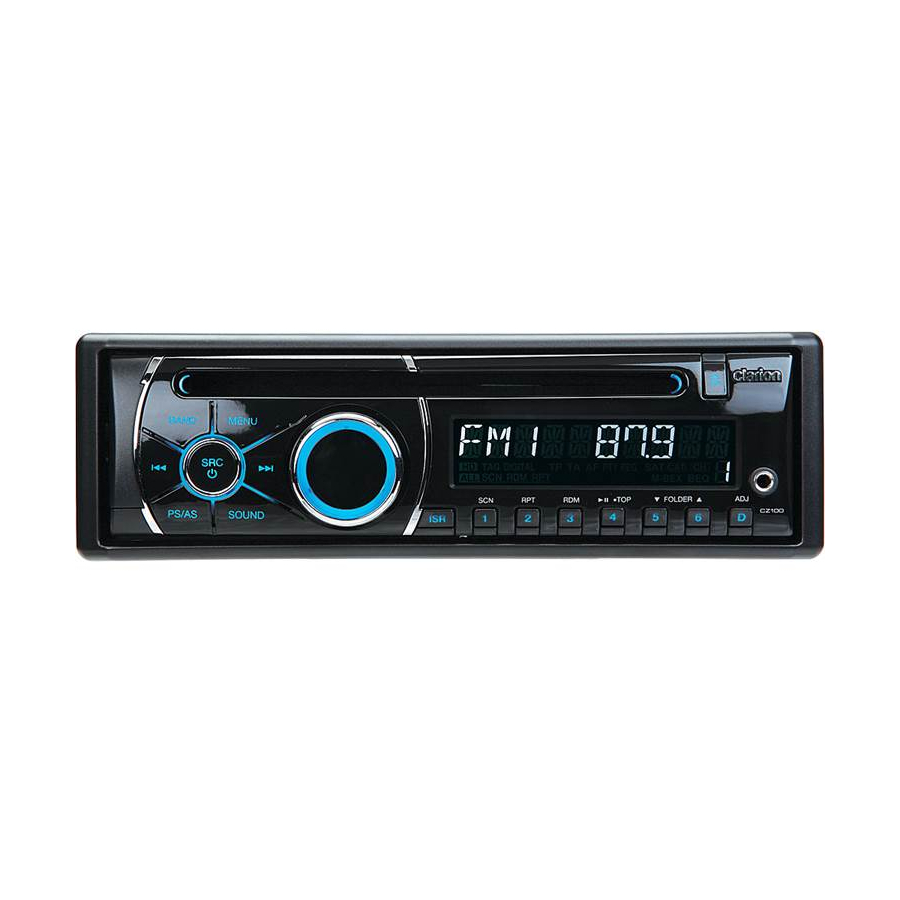

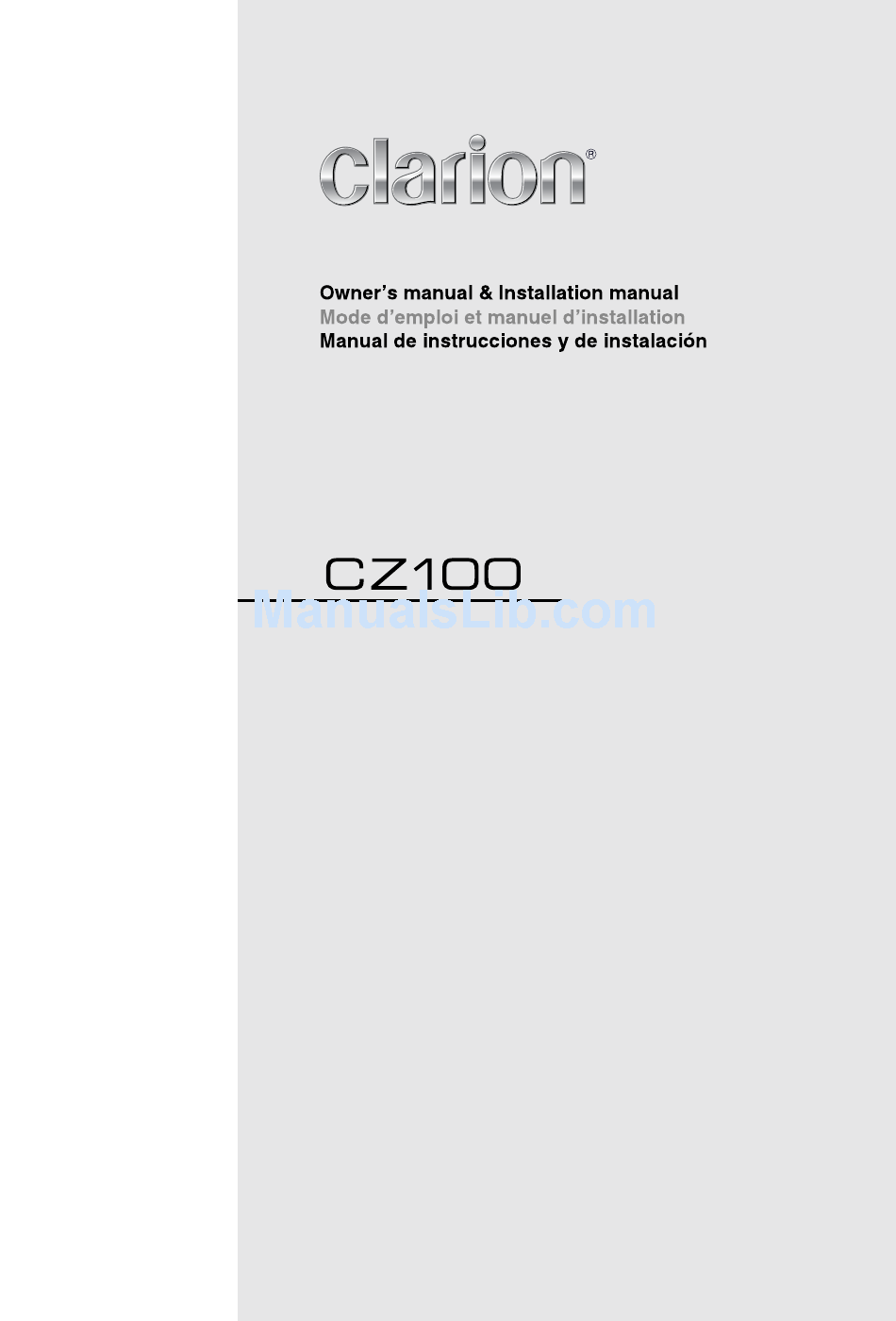

- Page 1 CD/MP3/WMA RECEIVER LECTEUR CD/MP3/WMA RECEPTOR CD/MP3/WMA...
-
Page 3: Table Of Contents
Contents Thank you for purchasing this Clarion product. • Please fully read this owner’s manual before operating this equipment. • Check the contents of the enclosed warranty card and store it in a safe place with this manual. 1. FEATURES ... 2 2. -
Page 4: Features
1. FEATURES MP3/WMA compatible with ID3-TAG display Detachable Front Panel with 3.5mm Auxiliary Input 4ch/2V RCA Output with Subwoofer Control and BEAT-EQ with 3 Band Parametric Equalizer Expanding Systems Note: The items listed outside of the frames are the commercial products generally sold. Expanding audio features 4 Channel Amplifier Portable Player... -
Page 5: Precautions
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS DEVICE COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE. CLARION CO.,LTD. 7-2,SHINTOSHIN,CHUO-KU,SAITAMA-SHI,SAITAMA-KEN,JAPAN MANUFACTURED: INFORMATION FOR USERS:. C H A N G E S O R M O D I F I C A T I O N S T O... -
Page 6: Front Panel / Generalities
Front Panel / Generalities For a longer service life, be sure to read the following cautions. • Do not allow any liquids on the set from drinks, umbrellas, etc. Doing so may damage the internal circuitry. • Do not disassemble or modify the set in any way. -
Page 7: Remove The Dcp
Remove the DCP The control panel can be detached to prevent theft. When detaching the control panel, keep it in the safety place and prevent scratches. We recommend taking the DCP with you when leaving the car. 1. Press the [ ] button (2 sec.) to turn off the power. -
Page 8: Controls
3. CONTROLS Operational Panel [BAND] [PS/AS] [OPEN] [POWER/SRC] Names of Buttons / SRC] Key • Power / Toggle the audio source [BAND] Key • Select tuner band [MENU] Key • System menu ] Key • Eject the disc in the unit. ] Key •... -
Page 9: Remote Control
Remote Control [SRC] Key • Toggle the audio source / Power on / Power off (long press) ] Key • Preset station up/down / Previous/ next track / Search(long press) [SCN/PS/AS] Key • Scan play / Preset scan / Auto memory store [BND/TOP] Key •... -
Page 10: Cautions On Handling
4. CAUTIONS ON HANDLING Handling Discs Handling • New discs may have some roughness around the edges. If such discs are used, the player may not work or the sound may skip. Use a ball-point pen or the like to remove any roughness from the edge of the disc. -
Page 11: Operations
5. OPERATIONS Basic Operations Note: • Be sure to read this chapter referring to the chapter “3. CONTROLS” CAUTION When the unit is turned on, starting and stopping the engine with its volume raised to the maximum level may harm your hearings. -
Page 12: Radio Operations
2. The unit has 4 bands, such as FM1, FM2, FM3 and AM. FM3 and AM can store by AS function. Each bands can store 6 stations, CZ100 can store 24 stations in total. Manual store When one expected radio station has been detected, press and hold number key 1~6 to store it in the memory. -
Page 13: Cd/Mp3/Wma Operations
CD/MP3/WMA Operations This unit can play back MP3/WMA files Notes: • If you play a file with DRM (Digital Rights Management) for WMA remaining ON, no audio is output (The WMA indicator blinks). To disable DRM (Digital Rights Management) When using Windows Media Player 9/10/11, click on TOOL ->... -
Page 14: Folder Select
CD/MP3/WMA Operations • Discs not bearing the and CD-ROMs cannot be played by this unit. • Some CDs recorded in CD-R/CD-RW mode may not be usable. Pausing play 1. Press the [ 4 / ] button to pause play. “PAUSE” appears in the display. 2. -
Page 15: Aux Operations
CD/MP3/WMA Operations 2. Press [RPT] button repeatedly until “RPT OFF” appears on the LCD to cancel repeat playback. MP3/WMA: 1. Press the [RPT] button once or more until “TRACK RPT” appears on the display to perform repeat play, and “RPT” segment lights on. -
Page 16: Audio Setup
Audio Setup Press the [SOUND] key to enter sound effect setting mode. First Press shows current EQ. Rotate the volume knob to changes BEAT EQ in this order: OFF -> B-BOOST -> IMPACT -> EXCITE -> CUSTOM Press the [SOUND] key, then press [ ] to select USER preset including: System Setup At radio mode, press and hold [ADJ] button... -
Page 17: Trouble Shooting
6. TROUBLE SHOOTING GENERAL Problem Unit fuse blown. Unit can not power on Car battery fuse blown. Unit can not power on Nothing happens when buttons are Illegal operation. pressed. Display is not accurate. Battery depleted. Remote control does not work Battery installed incorrectly. -
Page 18: Error Display
DISC Player Problem Another disc is already loaded. Disc cannot be loaded. There is a foreign matter already in place. Compact disc is dirty. Sound skips or is Compact disc is heavily scratched noisy. or warped. Sound is bad Water droplets may form on the directly after power internal lens when the car is is turned on. -
Page 19: Specifications
8. SPECIFICATIONS FM Tuner Frequency range: 87.9-107.9MHz Usable sensitivity: 8dBμ Frequency response: 30Hz-15kHz Stereo separation: 30dB(1kHz) Signal/noise ratio: >55dB AM Tuner Frequency range: 530-1710kHz Usable sensitivity (S/N=20dB): 30dBμ System: Disc digital audio system Frequency response: 20Hz-20kHz Signal/noise ratio: >75dB Total harmonic distortion: Less than 0.1% (1kHz) Channel separation: >60dB MP3/WMA mode MP3 sampling rate: 8 kHz to 48 kHz... -
Page 20: Installation / Wire Connection Guide
1. Do not open the case. There are no user- serviceable parts inside. If you drop anything into the unit during installation, consult your dealer or an authorized Clarion service center. L-key ... 2 Wire connector ... 1 Remote control unit (with battery)... 1 Owner’s manual... -
Page 21: Cautions On Installation
Notes: 1. Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. 2. Fasten the front stopper securely to prevent the source unit from coming loose. • Console opening dimensions 7-3/16"... -
Page 22: Unit Installation
Notes of installation 1. Before installation, please make sure proper connections are conducted and the unit operates normally. Improper connection may result in damage to the unit. 2. Use only accessories designed and manufactured for this unit and other unauthorized accessories may result in damage to the unit. -
Page 23: Removing The Source Unit
Method B 1. Insert this unit directly to the opening of the dashboard. 2. Place M5×6 cylindrical screw through the holes of the mounting frame located inside the opening to holes of the unit and fasten the screws to left & right. Trim Ring installation Attach the trim ring around the front panel. -
Page 24: Wiring And Connections
7) Wiring and Connections Black Steering wheel control terminal ANTENNA (Black) White Black Rear audio output (Left) Subwoofer output 1 Black Red Rear audio output (Right) Subwoofer output 2 White Left Right Gray Black 4 Channel Amplifier Refer to the right. Front audio output terminal... -
Page 25: Connecting The Accessories
+ Gray Front Right - Gray/Black + White Front Left - White/Black + Purple Rear Right - Purple/Black + Green Rear Left - Green/Black 4-Speaker system 2-Speaker system + Gray Front Right - Gray/Black + White Front Left - White/Black + Purple - Purple/Black + Green... - Page 26 Clarion Co., Ltd. Todos los Derechos Reservados. Copyright © 2009: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Impreso en China PN: 127075012416...
