Summary of Contents for NEFF R8580X3GB

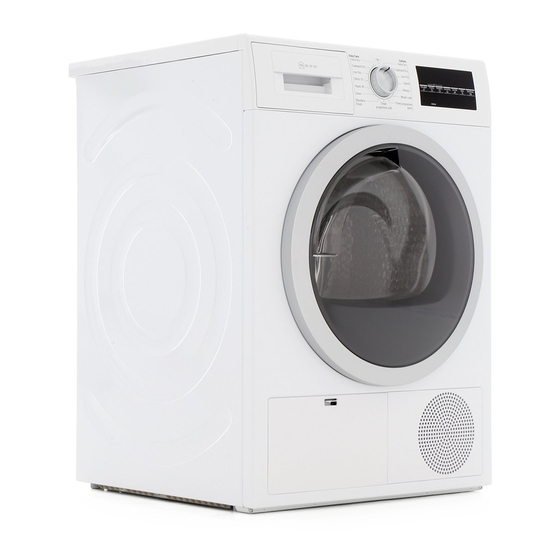

- Page 1 TUMBLE DRYER en Installation and operating instructions R8580X3GB...
- Page 2 Caution! To meet the high quality demands required by Neff, every tumble dryer that This signal word indicates a possibly leaves our factory is carefully checked to dangerous situation. Not heeding the ensure that it functions correctly and is in caution can cause property and/or perfect condition.
-
Page 3: Table Of Contents
Contents e n I n s t a l l a t i o n a n d o p e r a t i n g i n s t r u c t i o n s Changing the programme or adding Intended use. -
Page 4: Intended Use
Intended use Intended use Safety instructions The following safety information This appliance is intended for private ■ I n t e n d e d u s e S a f e t y i n s t r u c t i o n s and warnings are provided to domestic use only. - Page 5 Safety instructions Do not allow children to Warning ■ clean or maintain this Risk of suffocation! appliance unsupervised. If allowed to play with the Keep children under 3 years packaging/plastic film or ■ and pets away from this packing components, children appliance.
-
Page 6: Installation
Safety instructions The mains plug must be Installation ■ freely accessible at all times. Warning If this is not possible, in Risk of electric shock/fire/ order to comply with the material damage/damage to relevant safety regulations, a the appliance! switch (2-pole switch-off) If the appliance is not installed must be built into the properly, this may lead to a... - Page 7 Safety instructions Incorrectly placing (stacking) Warning ■ this appliance on top of a Risk of fire/material damage/ washing machine may result damage to the appliance! in injury, material damage The use of extension cords or and/or damage to the power strips may result in fire appliance.
-
Page 8: Operation
Safety instructions The appliance has sharp Warning ■ edges on which you could Risk of explosions/fire! cut your hands. If there is any residual ■ Do not take hold of the material left in the fluff filter, appliance by its sharp this may ignite when drying edges. - Page 9 Safety instructions Do not switch off the If you climb onto the ■ ■ appliance before the drying appliance, the worktop may cycle has finished unless you break, which may result in remove all items of laundry injury. from the drum immediately Do not climb onto the and spread them out (to appliance.
-
Page 10: Cleaning/Maintenance
Safety instructions If you operate the appliance If the appliance overheats, it ■ ■ without a fluff catcher (e.g. may not be able to operate fluff filter, fluff depot, properly, or this may result in depending on appliance material damage or damage specifications), or if the fluff to the appliance. - Page 11 Safety instructions Repairs and any other work Warning ■ on the appliance must only Risk of injury/material be conducted by our damage/damage to the customer service or by an appliance! electrician. The same applies The use of spare parts and for replacing the mains cable accessories supplied by other (when necessary).
-
Page 12: Environmental Protection
Environmental protection Energy-saving tips Environmental protection Spin the laundry before drying. ■ The drier the laundry, the shorter the drying time will be, thus Packaging/old appliance consuming less energy. E n v i r o n m e n t a l p r o t e c t i o n Load the dryer with the maximum Dispose of packaging in an ■... -
Page 13: Installation And Connection
Installation and connection You could cut your hands on the ■ Installation and sharp edges of the dryer. Do not hold the dryer by the sharp edges. connection Protruding parts on the dryer may ■ break off when it is lifted or pushed. Scope of delivery Do not move the dryer by holding on I n s t a l l a t i o n a n d c o n n e c t i o n... -
Page 14: Optional Accessories
Installation and connection Optional accessories Transport and frost protection Order optional accessories from the To empty the condensate container: after-sales service: Use the programme selector to select any programme. Washer-dryer stack connection set: ■ Press the Start button. To save space, the dryer can be Wait for 5 minutes. -
Page 15: ΠDraining The Condensation
Draining the condensation water Place the condensation hose in the ΠDraining the "parked" position. condensation water Condensation will form in the appliance D r a i n i n g t h e c o n d e n s a t i o n w a t e r as it dries the laundry. - Page 16 Draining the condensation water Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C). Caution! Accumulated water can be drawn back into the dryer and may cause material damage. Check that the water drains away from the wash basin quickly.
-
Page 17: The Main Points In Brief
The main points in brief The main points in brief T h e m a i n p o i n t s i n b r i e f Load the laundry and close Switch on the dryer. Select a programme and, the door. -
Page 18: Getting To Know Your Appliance
Getting to know your appliance Getting to know your appliance Dryer G e t t i n g t o k n o w y o u r a p p l i a n c e ( Condensate container 0 Control and display panel 8 Drum interior light (depending on the model) @ Dryer door... -
Page 19: Control Panel
Getting to know your appliance Control panel ( Use the programme selector to switch the dryer on and off and to select the programme. 0 Programmes ~ Page 22. 8 Start button for starting or interrupting the programme ~ Page 24. @ Buttons ~ Page 24. -
Page 20: Display Panel
Getting to know your appliance Display panel Display panel Buttons in the display panel "Anti-Crease" selected. ” Fine adjustment of the dryness – level. ( Select the degree of dryness. Time programme selected. 0 Select the drying time. "Ready in" time selected. 8 Select the Ready in time. -
Page 21: Laundry
Laundry Notes Laundry – When washing laundry to be tumble-dried, use the correct P reparing the laundry amount of detergent and care L a u n d r y products as specified in the Warning manufacturer's instructions. Risk of explosion/fire! –... -
Page 22: Programmes And Buttons
Programmes and buttons Programmes and buttons Programmes P r o g r a m m e s a n d b u t t o n s Programme and fabrics Maximum load and programme settings/info Name of the programme The maximum load is based on the dry weight of the fabrics Which fabrics is the programme suitable for? Possible programme settings... - Page 23 Programmes and buttons Timed programme warm 3 kg All types of fabric; time programme. You can adjust the programme length using the button for Suitable for pre-dried or slightly damp laundry and for drying off the drying time. multi-layered, thick laundry. Notes Only dry wool, sports shoes and soft toys with the basket for ■...
-
Page 24: Buttons
Programmes and buttons Buttons Buttons Explanations and notes Not all buttons and their functions can be selected in all programmes. Note: Fine adjust – If the laundry is too damp after drying, you can finely adjust the dryness level e.g. Cupboard Dry. -
Page 25: Operating The Appliance
Operating the appliance Default programme settings Note: Operating are standard settings that are already defined when a programme the appliance is selected. After selecting a programme, you can see the default Loading laundry and programme settings in the display O p e r a t i n g t h e a p p l i a n c e switching on the dryer panel. -
Page 26: Changing The Programme Or Adding Laundry
Operating the appliance Changing the programme or Removing laundry and adding laundry switching off the dryer You can remove or add laundry and Remove the laundry. change or alter the programme at any Turn the programme selector to the time during drying. "off"... -
Page 27: Emptying The Condensate Container
Operating the appliance Remove the fluff from the recess in Emptying the condensate the fluff filter. container Condensation will form in the appliance as it dries the laundry. If there is no drain hose connected to the appliance, the condensation water from the appliance will run into the condensation container. -
Page 28: Signal Setting
Signal setting Push in the condensate container The spin speed is shown in until you feel it lock back into place the display. in the dryer. Press the "Ready in" time button or the drying time button to change the spin speed. Turn the programme selector clockwise to position 3. -
Page 29: Cleaning
Cleaning Turn both locking levers towards Cleaning each other. C leaning the dryer and the C l e a n i n g control panel Warning Risk of death! There is a risk of electric shock as the dryer is operated with electricity. Remove the top cap from the heat Disconnect the dryer from the mains exchanger. -
Page 30: Cleaning The Moisture Sensor
Cleaning First insert the heat exchanger, and Cleaning the moisture sensor then fit the heat exchanger's top cap in place. The dryer is equipped with a Note: Turn both locking levers back and stainless-steel moisture sensor. The close the maintenance flap until it moisture sensor measures how damp locks into place. -
Page 31: Faults And What To Do About Them
Faults and what to do about them Faults and what to do about them F a u l t s a n d w h a t t o d o a b o u t t h e m Faults Cause/remedy ð... - Page 32 Faults and what to do about them Faults Cause/remedy Drying time too long? The fluff filter may be dirty and cause a longer drying time. Clean the fluff fil- ■ ter. If the air inlet on the dryer is blocked or not freely accessible, this may ■...
-
Page 33: After-Sales Service
After-sales service After-sales service After-sales service A f t e r - s a l e s s e r v i c e If you cannot rectify the fault yourself (faults, what to do?), please contact our after-sales service. We will always find an appropriate solution to avoid unnecessary visits by engineers. -
Page 34: Consumption Values
Consumption values Consumption values Consumption values table C o n s u m p t i o n v a l u e s Spin speed which is Programme used for spinning Duration** Energy consumption** the laundry Cottons 9 kg 4.5 kg 9 kg 4.5 kg... -
Page 35: Technical Data
Technical data Technical data Dimensions: T e c h n i c a l d a t a 85 x 60 x 60 cm Height x width x depth Weight: Approx. 45 kg Maximum load: 9 kg Condensate container: 4.6 l Connected voltage: 220 - 240 V Connected load:... - Page 36 Repair order and advice in the event of faults 0344 892 8989 Calls charged at local or mobile rate. 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute. You can find the contact information for all countries in the attached after-sales service directory: *9001278123*...
