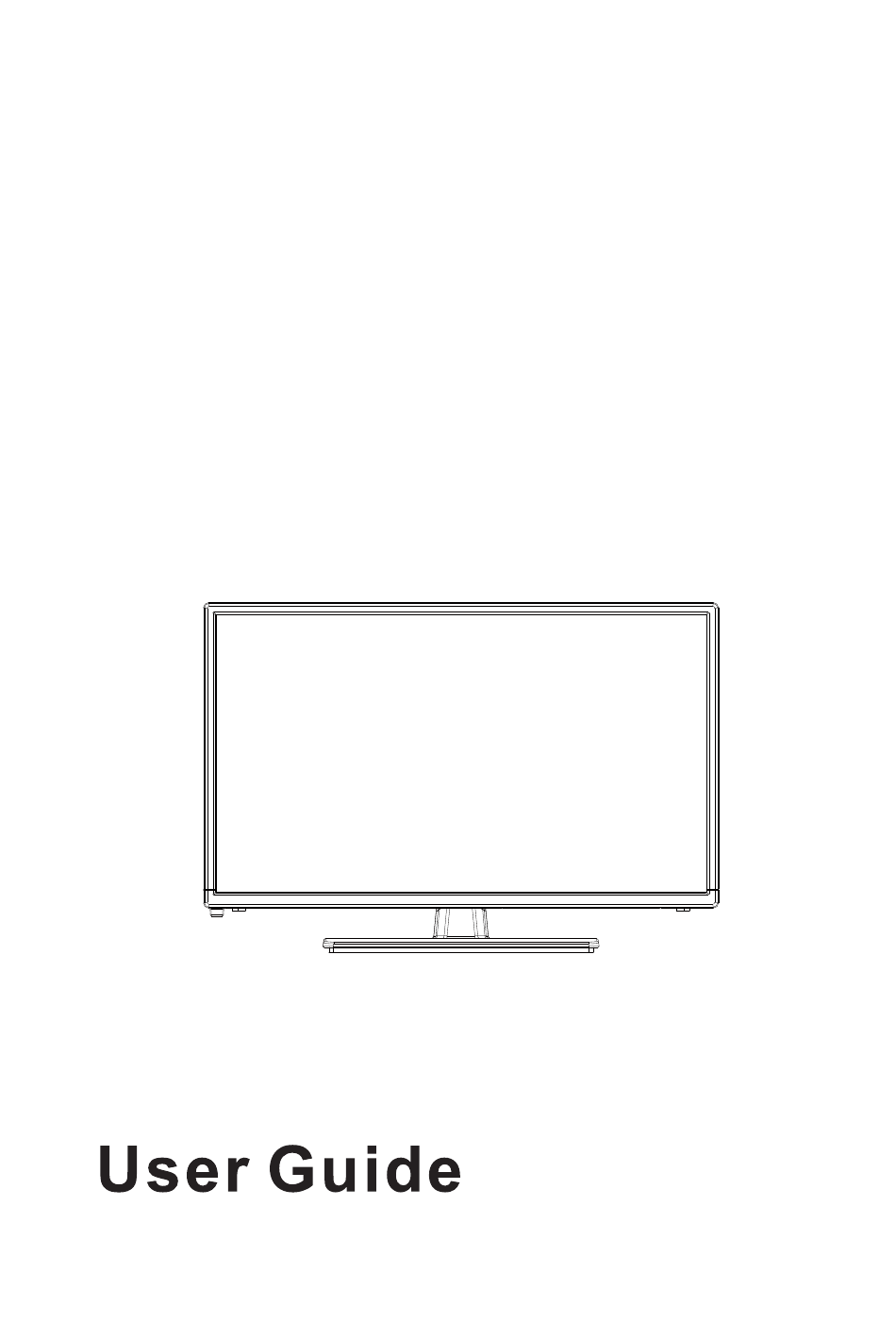

- Page 1 22” LED TV with DVD C22230FT2-LED...
- Page 2 Contents Unpacking the TV / Accessory’s Installing / Removing the Base Stand Front / Right Side View and Controls Rear View and Sockets Remote Control Installing Batteries in the Remote Control Remote Control Operation Range Making Video and Audio Connections Connecting an AV Device with an HDMI Cable Connecting a Computer with a VGA Cable Connecting an AV Device with a Component (YPbPr) cable...
- Page 3 your new 22" FHD LED TV. Neck / Screws ST4 x 12 2PCS TV set Adapter ST4 x 12 3PCS Batteries...
- Page 4 The parts Neck / Screws ST4 x 12 2PCS ST4 x 12 3PCS Installation Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV. 1.Place the neck in position as shown, 2.Put the stand to the neck of the TV set 3.Attach the stand with the supplied screws.
- Page 5 DTV, ATV, AV, YPBPR, VGA, HDMI, MEDIA, DVD...
- Page 6 Power VIDEO HDMI TV Aerial POWER Connect an external device to the composite VIDEO(Y) and AUDIO (L / R) out jacks found on most video equipment.
- Page 7 Remote Control...
- Page 8 Remote Control...
- Page 10 Power VIDEO HDMI TV Aerial...
- Page 11 Common Interface HDMI MINI YPbPr PC AUDIO Digital Common Interface Power VIDEO HDMI Audio out MINI YPbPr PC AUDIO...
- Page 12 Power VIDEO HDMI...
- Page 13 Mini YPbPr Mini AV...
- Page 14 5. If this is the first time you are turning on the TV and there are no programs in the TV memory, the Quick Start menu will appear on the screen. There are 4 setups as follow:...
- Page 15 Input Source Cable YPbPr DTV, ATV, AV, SCART, YPBPR, HDMI1, HDMI2, HDMI3, PC, Media. HDMI Radio LOCK Mut e Mute...
- Page 16 Picture Mode Standard Contrast Brightness Saturation PICTURE Tint Sharpness Color Temperature Normal Aspect Ratio Auto Noise Reduction Middle Enter Enter Select Exit Exit Saturation Press the buttons to increase or decreases the saturation. Auto...
- Page 17 Menu...
- Page 18 Sound Mode Standard 120Hz 500Hz 1.5KHz SOUND 5KHz 10KHz Balance Auto Volume Surround Sound SPDIF Mode Enter Enter Select Exit Exit Sports Menu Auto Volume This feature automatically adjusts the audio level when the TV is turned on.This function is activated by selecting”ON”. Surround Sound Turn on/off the surround sound function by selecting “On”...
- Page 19 Allows you to set up a variety of channel options. Auto Tuning DVB-T Manual Tuing 1. Press the Menu button and then press the buttons to select the ATV Manual Tuing CHANNEL menu. Programme Edit CHANNEL Signal Information CI Information Software Update(USB) and then press the to select...
- Page 20 DVB-T Mannual Tuning 1.Select DVB-T Mannual Tuning,press the OK button to confirm. ATV Mannual Tuning ATV Mannual Tuning Storage To 1 Press the buttons to change the numbered location of the found channel.
- Page 21 Programme Edit Use up/down keys to select program edit.Press OK or Right button to enter the menu.Use up/down buttons to navigate through the menu. Delete Press the RED button to delete the highlighted channel, a red circle will appear next to the cahnnel name. Press the RED button again to confirm delete.
- Page 22 Lock Setting Lock Lock System Set Password Block Program Parental Guidance LOCK Key Lock Hotel Mode Enter Enter Select Exit Exit Lock System Lock System Set Password: If you had already changed the password,enter the current password. Block Program: This feature is available only for digital TV and the tuned-in channel must support it. Key Lock:Press the buttons to select the “Key Lock”...
- Page 23 Lock Setting Hotel Mode Press the up/down buttons to select the “Hotel Mode” Hotel Mode option and then press right button to choose between Source Lock the options ON or OFF. Default Source DTV Channel Type HOTEL Default Prog Last Max Volume Source Lock Default Volume...
- Page 24 Time Setting Time Clock 01/Jan 01:08 Off Time On Time Sleep Timer TIME Auto Standby Time Zone London GMT OSD Timer 15 S Enter Enter Select Exit Exit Clock Press the OK button to set date and time. Off Time Press the OK button to set off time.
- Page 25 Option Setting Option OSD Language English Audio Languages English Subtitle Language English Hearing Impaired OPTION PVR File System Reset First Time Installation Home Mode Home Blue Screen Enter Enter Select Exit Exit OSD Language Allows you to select the on screen display menu language. Audio Languages Select the audio languages.The availability of this function depends on the tuned-in channel.(can only be selected in DTV mode)
- Page 26 Mini YPbPr Mini AV...
- Page 27 Multimedia Operation Basic Operation 1.Press the SOURCE button on tje remote control to display the input source menu,select the USB source with the up/down buttons and press the OK button to enter the Multimedia menu below. Input Source Cable YPbPr HDMI 2.Press left/right buttons to select the files on the USB device(PHOTO,MUSIC,MOVIE,TEXT)to view or play.
- Page 28 1.Photo Photo viewing Press left/right buttons to select the option on the menu,and press the OK button to activate. Play: Play the photo. Prev./Next: Go to on a picture/Go to the next picture. Stop: Stop auto turning pages. Repeat: Select the repeat mode from Repeat All, Repeat1,Repeat None.
- Page 29 3.Movie Watch a film Press left/right buttons to select the option on the menu,and press the OK button to activate. Play: Play the movie. Retreat quickly. Fast forward. Prev./Next: Go to a video/Turn to the next video. Stop: Stop playing. Repeat: Select the repeat mode from Repeat All, Repeat1,Repeat None.
- Page 37 1920 1080 180cd/m 600 : 1 504 x 87 x 306 mm 504 x 160 x 342 mm 2.55 kg...
