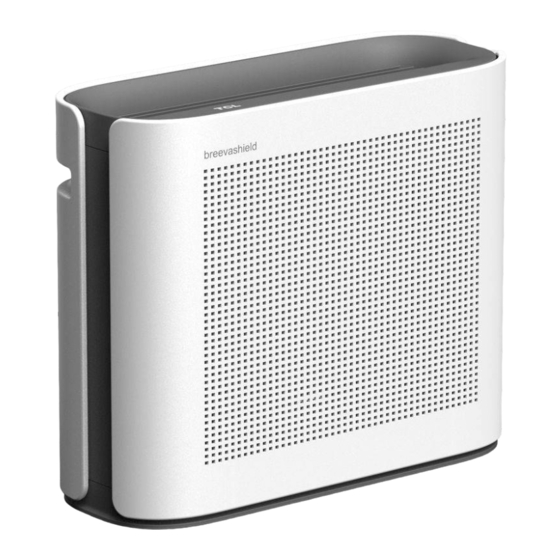

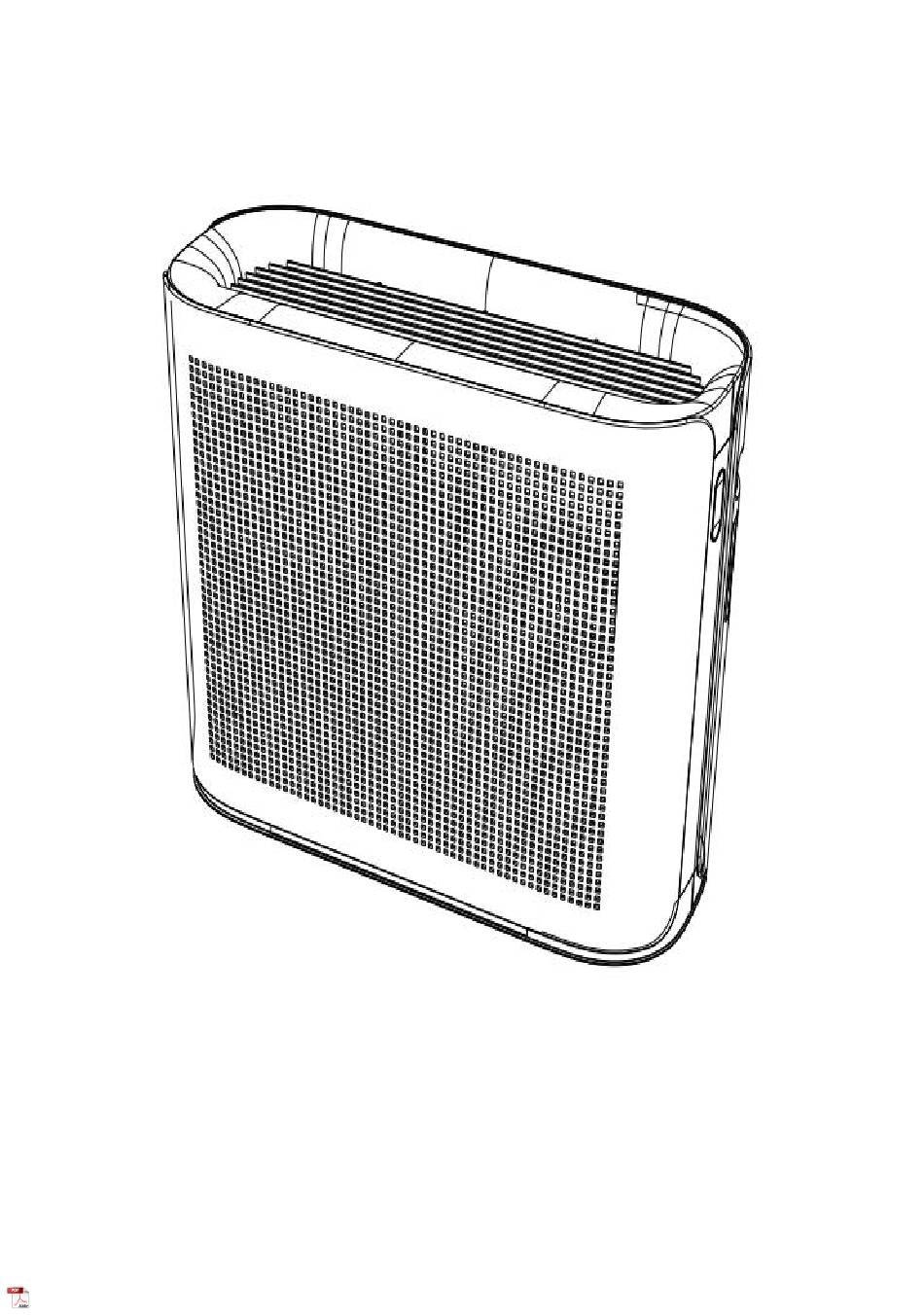

- Page 1 User Manual breeva Pro 400 Premium/breeva Pro 400 Please read the instructions carefully before using The appearance of the product is subject to the actual product...
-
Page 2: Table Of Contents
Table of content 1. Product description.............01 2. Packing list................01 3. Instructions for use.............02 4. UI operation menu..............05 5. How to clean air-purifier............07 6. How to clean the filter............08 7. Replace the filter..............10 8. APP Networking Instructions..........12 9. Types of malfunctions and solutions.........13 10. - Page 3 FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 • Use the device only within the living space and within the stated technical data. Improper use can put health and life at risk. • Children cannot recognize the dangers of using electronic devices. Therefore, be sure to supervise children when they are near a running device.
- Page 5 • This device contains a license-exempt transmitter/receiver that complies with the Innovation, Science and Economic Development Canada license-exempt RSS standard. The operation is subject to the following two conditions: • This device may not cause interference. • This device must accept any interference, including interference that may cause undesired operation of the device •...
- Page 6 you are electronics qualified. •Disconnect power before repairing. Do not place in such places: Unstable places. (Otherwise, it may fall over and cause injury) A place of high temperature, high humidity, or easy to get wet. (to prevent leakage accidents) ...
-
Page 7: Product Description
1. Product description This air purifier can strongly remove smoke and dust, and is suitable for places with more smoke, dust, pollen, particles and pollutants in the air, such as indoor smoking. This can reduces the chance of you and your family being harmed by second-hand smoke and haze, and can protect the health of them. -
Page 8: Instructions For Use
3. Instructions for use 3.1 Precautions for filter All filters are attached to the inside of the air purifier. Before using the product, be sure to remove the packaging of the filter. Please follow the procedure in following icons to take out all filters from host and remove their packaging, and then put filters back into the air purifier. - Page 9 3.2 Steps to attach the filter 1. Place the fingers on the each of left and right hand sides buttons of the machine, press the buttons and the front cover will be automatically opened Button Button 2. Open the front cover towards to your direction 3.
- Page 10 4. Remove all packaging from the filter. 5. Assemble the entire set of filters into the air-purifier in the right order Handle Attention： Make sure that the HEPA activated carbon composite filter with the handle is facing to you, and make sure the all hooks of the filter are properly fitted to the air purifier.
-
Page 11: Ui Operation Menu
Timer Timer Breeva Shield ™ Only for breeva Anion Pro 400 Breeva Shield ™ Anion Only forbreeva (Only for breeva Pro 400 premium) Pro 400 premium UV-C Filter replacement Filter reminder (Only for breeva Pro 400) and reset Air Quality... - Page 12 'ding' to indicate the timing is turned off 4.4.1 UV-C 1. Turn on UV-C or anions ( Only for breeva Pro 400 premium ): Press the " " button once, the " " button light will be on, you...
- Page 13 4.5Filter 1. filter life: When the light is in white, it means that the life of the filter is sufficient; when the light is in yellow, it means that the life of the filter is less than 5%; When the light is in red, it means that the filter life is exhausted, please replace the filter as soon as possible 2.
-
Page 14: How To Clean Air-Purifier
5. How to clean air-purifier Note: Always unplug the power plug before cleaning the purifier. Never place the purifier into water or any other liquid. Never use abrasive, caustic, or flammable cleaners (such as bleach or alcohol) to clean any part of the purifier. - Page 15 different. If TVOC readings are abnormal, place the device away from volatile substances for 24 hours and allow the TVOC to reset 1. Use a soft brush to clean the dust sensor air inlet/outlet 2. Remove the protective cover of the dust sensor 3.
-
Page 16: How To Clean The Filter
6. How to clean the filter Note: Only the pre-filter can be washed with water. It is recommended to clean the pre-filter every 30 days to ensure the air-purifier is running under the best performance 1. Please turn off the air-purifier and unplug the power 2. - Page 17 5. Dry the pre-filter with air 6. Put the pre-filter back inside the purifier. Then properly assemble all hooks to the purifier. 7. To install the front cover, firstly assemble the bottom hooks to the bottom of the air-purifier, and then push the front cover towards the air-purifier body.
-
Page 18: Replace The Filter
7 Replace the filter When it is necessary to replace the pre-filter and HEPA activated carbon composite filter, please follow the steps below to correctly replace the new filter. Attention: Activated carbon filter and HEPA filter is not washable or vacuumed by cleaner ... - Page 19 4. Remove all packaging from the filter. 5. The order of replacing new filters (inside to outside) is: HEPA Activated Carbon Composite filter, pre-filter Attention: Make sure the side with the two flanges is facing towards to you and all hooks of the pre-filter are properly fitted to the air-purifier 6.
-
Page 20: App Networking Instructions
Use the TCL HOME APP to operate the device. After that, you can observe whether the air quality in your home is within the target range in real time through the TCL HOME APP. TCL HOME APP can also help you to control the device to purify the air in your home. - Page 21 A. Press the function to start connecting to the voice assistant. B. TCL HOME APP configures both ALEXA and Google voice assistant, you can choose your favorite voice assistant C. The voice operation guidelines will be showing Tips: A.
-
Page 22: Types Of Malfunctions And Solutions
9 Types of malfunctions and solutions This chapter summarizes the most common problems you may encounter when using your air-purifier. If you are unable to resolve the issue based on the information below, please contact the store where you purchased it or customer service center . Problems Possible causes solutions... - Page 23 Dust sensor is dirty Please clean the dust sensor Color of the air quality Please open the windows to Inadequate indoor ventilation indicator improve indoor air circulation always the same Put the machine in a clean TVOC sensor is dirty environment for 24 hours The filter indicator keep Please refer to the description of...
-
Page 24: Product Specifications
10. Product Specifications Product model breevaPro400/400 Premium Voltage USA:120V~ EU:220-240V~ Frequency USA:50Hz EU:50/60Hz Power 40 W CARD Value ≥380m /h Effective area 26-45 ㎡ 13 Name for each parts 1. Front cover 2. Pre-filter 3. HEPA activated carbon composite filter 4.
