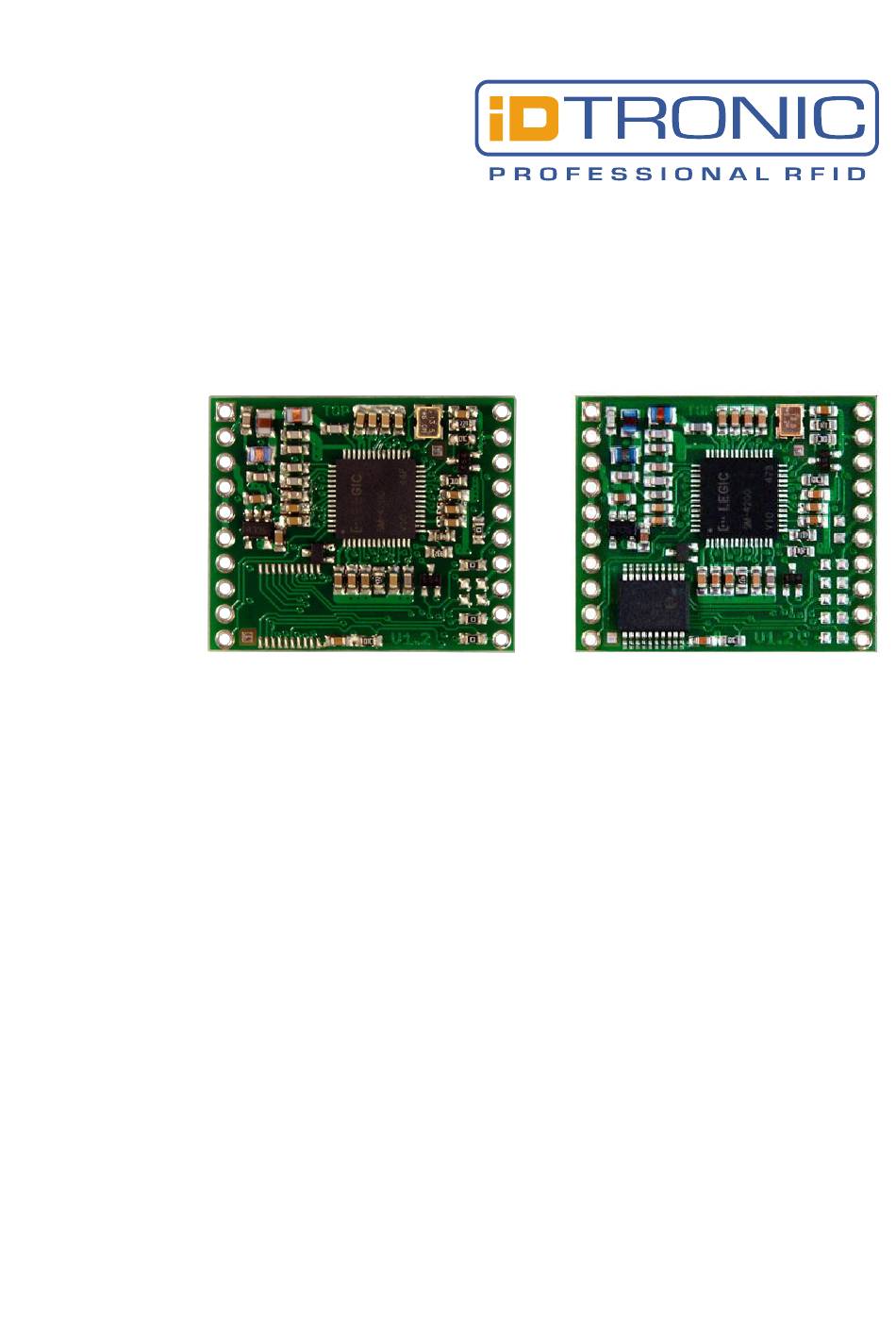

- Page 1 OEM-LEG-M800-TTL-APP & OEM-LEG-M800-TTL-FLEX Legic OEM RFID Module Installation...
- Page 2 Issue 0.6 Germany/Deutschland – 03. July 2020 – Phone: +49 621 6690094-0 Fax: +49 621 6690094-9 Subject to alteration without prior notice. E-Mail: info@idtronic.de © Copyright iDTRONIC GmbH 2020 Web: idtronic.de Printed in Germany Page 2 of 6 OEM RFID Modules...
-
Page 3: Table Of Contents
Supported Transponders ........................... 4 Technical Data..............................4 Identification ..............................4 Mounting ................................. 5 Dimensional Drawing ............................5 Pinout OEM-LEG-M800-TTL-APP ........................5 Pinout OEM-LEG-M800-TTL-FLEX ........................6 Standard Output Format of OEM-LEG-M800-TTL-FLEX ..................6 OEM RFID Modules iDTRONIC GmbH Page 3 of 6... -
Page 4: Description
• Read range: up to 80 mm ( depending on transponder type, ext. antenna and environment ) • Power supply: 3.3…5Vdc • Temperature range: -25 °C bis + 80 °C Identification OEM-LEG-M800-TTL-APP OEM-LEG-M800-TTL-FLEX Page 4 of 6 OEM RFID Modules... -
Page 5: Mounting
OEM-LEG-M800 Mounting Mounting Dimensional Drawing 31.5 mm 28 mm Pinout OEM-LEG-M800-TTL-APP Name Description Name Description n.c. n.c. RXD (5 V) Receive Data from PC, data input (RS232 TX pin 3 of DB) TX ANT Antenna TXD (5 V) Transmit Data to PC, data +3,3…5 Vdc... -
Page 6: Pinout Oem-Leg-M800-Ttl-Flex
Mounting Installationsunterlagen Pinout OEM-LEG-M800-TTL-FLEX Name Description Name Description n.c. n.c. RXD, DATA, D1 Receive Data from PC, data input (RS232 TX pin 3 of DB) TX ANT Antenna +3,3…5 Vdc TXD, CLOCK, D0 Transmit Data to PC, data output (RS232 RX pin 2 of DB) GND ANT Ground for Antenna Direction, Card...
