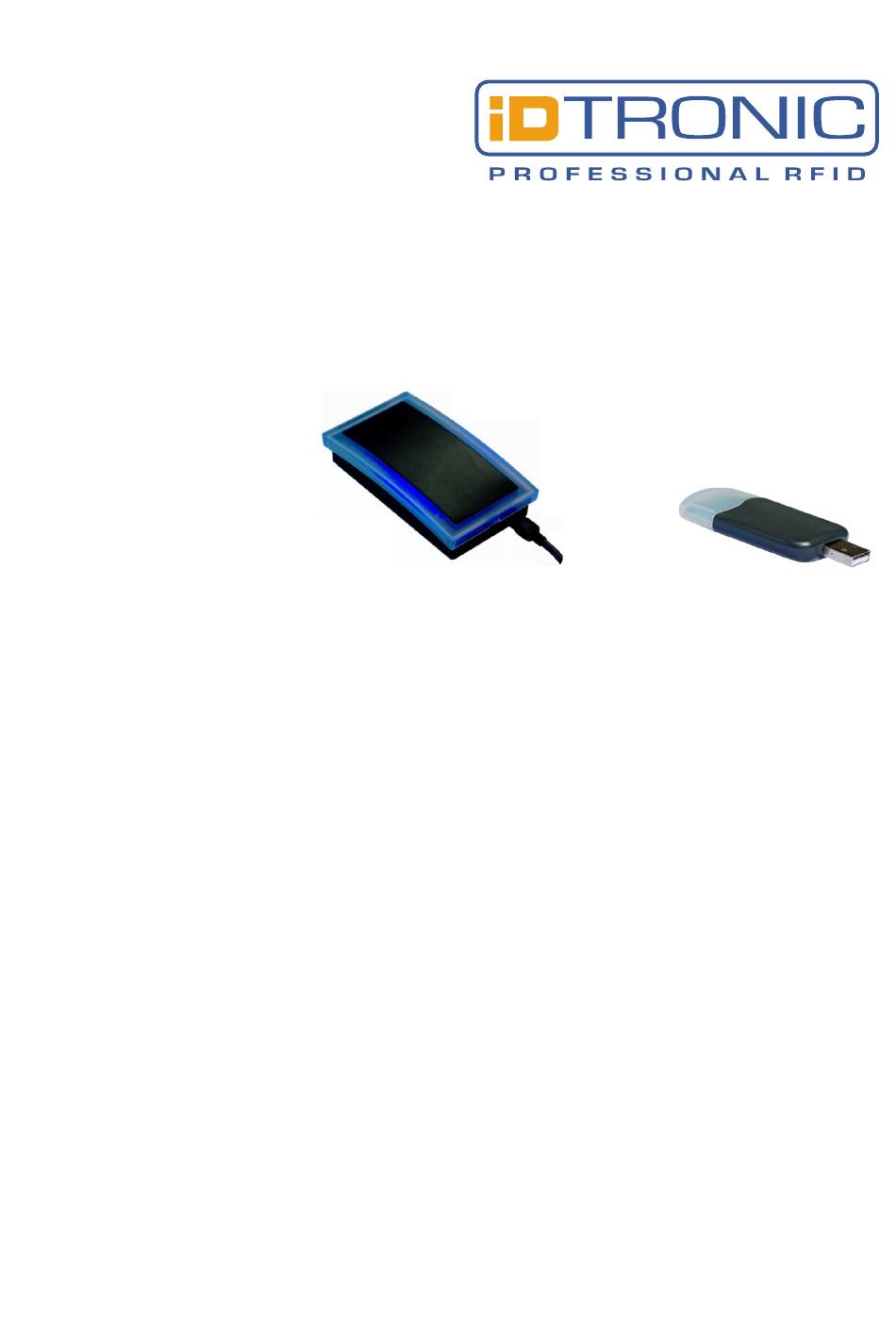

- Page 1 R-DT-EVO-TEMIC-USB, R-STICK-EVO-TEMIC 125 kHz RFID Devices for TEMIC LF RFID Tags...
- Page 2 Issue 0.1 Germany/Deutschland – 02. July 2012 – Phone: +49 621 6690094-0 Fax: +49 621 6690094-9 Subject to alteration without prior notice. E-Mail: info@idtronic.de © Copyright iDTRONIC GmbH 2012 Web: idtronic.de Printed in Germany Page 2 of 7 EVO Readers...
- Page 3 R-DT-EVO-TEMIC-USB, R-STICK-EVO-TEMIC Introduction Introduction Communication Settings Default baud rate: 9600 bps Address: Commands Available Controller: >Logical reset <Firmware Version Request Management of transponders: >Emulate the 5557 as EM 4x02 >Reading a single EM 4x02 >Write a Block >Write a Block with password >Send a wake-up command (AOR)
- Page 4 Selecting Commands Communication Protocol Selecting Commands Feedback to selecting and polling commands For each selecting received, the electronic board responds with the following syntax: STX ADDS1 ADDS2 < CommandType > <RESULT> ETX BCC where <CommandType> Command Type < RESULT> alphanumeric string of 1 character, command result values: “0”...
- Page 5 R-DT-EVO-TEMIC-USB, R-STICK-EVO-TEMIC Selecting Commands <ADDR> string of 1 character - block to write, valid values from “0” to “7”. The page is always “0” , the “1” page cannot be written. The default expiry timeout is 100 milliseconds Block Write Protected This command allows you to write a single block of page “0”...
- Page 6 Polling Communication Protocol Polling Software Version Request STX ADDP1 ADDP2 “2” ETX BCC where “2” polling of request version. If the polling message is correctly received, the electronic board answers as follow: STX ADDP1 ADDP2 “2” <VVVVVVVVVVVVVVVV> ETX BCC <VV..VV> alphanumeric text of 16 characters (at the moment “A& T5557 V.1.00”). “V.1.00” is the firmware version. The default expiry timeout is 100 milliseconds Reading Single EM4x02 Single UID reading of an EM4x02.
- Page 7 R-DT-EVO-TEMIC-USB, R-STICK-EVO-TEMIC Polling Block Read Protected This command allows you to read a single block when the PWD tag is set to “1”. STX ADDP1 ADDP2 “5” <PSW> <PAGE> <ADDR> ETX BCC “5” command type 'Block Read Protected’. <PSW> string of 8 characters, hexadecimal, password valid values “0123456789ABCDEF”...
