Related Manuals for Funke ZATR833S
Summary of Contents for Funke ZATR833S

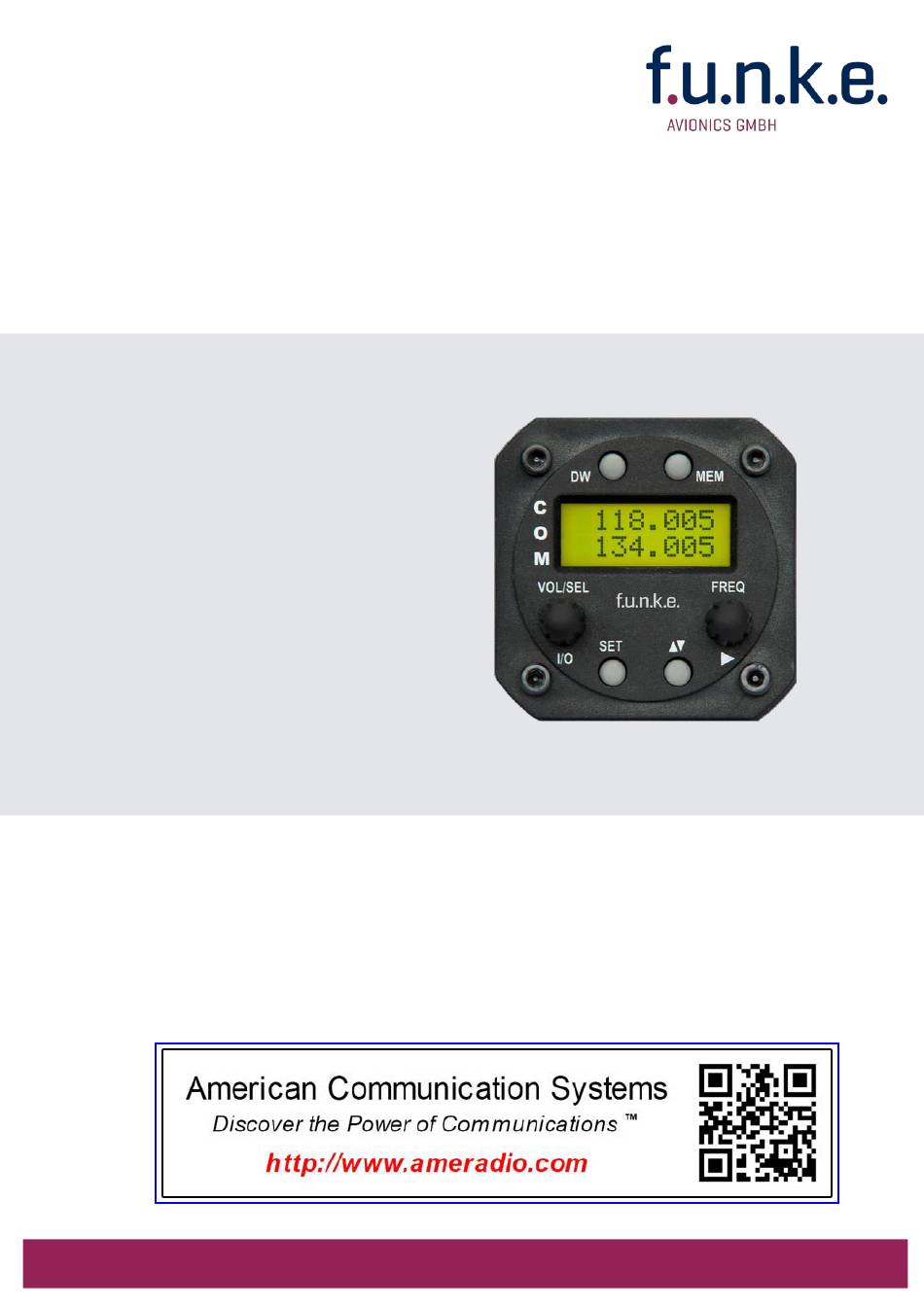

- Page 1 ATR833S VHF Communication Transceiver P/N 833S-(Cxxx)-(Cxxx) Operation and Installation (Document-Nr. 01.142.010.71e) f.u.n.k.e. means – fabrication · utilities · network · know-how · engineering k.e.
- Page 2 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Change History Revision Date Change Description First release for 2-DS / 2x8 LCD HMI 1.00 27.01.2017 Firmware Rev1.0 Head Software Rev1.0 Chap. 2.4.6 Note on ATR frequency tool inserted / chap. 4.7.3.2 Note Garmin protocol 1.01 14.02.2017 inserted / chap.
-
Page 3: Table Of Contents
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Content GENERAL ............................... 5 ..............................5 YMBOLS ............................5 BBREVIATIONS ............................. 6 USTOMER ERVICE ..............................6 EATURES OPERATION ............................7 ..........................7 VERVIEW OF ONTROLS ON/OFF – C ........................8 OMMISSIONING ..............................9 ISPLAY .......................... - Page 4 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4.6.2 Headset-Connection ........................37 4.6.3 Audio-Input ..........................37 4.6.4 Operation with Cable Adapter ....................38 ..............................38 IRING 4.7.1 Cable Cross Section ........................38 4.7.2 Connector – Pin Allocation ......................38 4.7.3 Wiring with Cable Harness BSKS833D-S ..................41 ..............................
-
Page 5: General
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 1 GENERAL This manual contains information about the physical, mechanical and electrical characteristics, as well as information about installation and operation of the aeronautical VHF voice radio ATR833S. 1.1 Symbols Advice, non-observance of which could cause radiation damage to the human body or ignition of combustible materials. -
Page 6: Customer Service
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 1.3 Customer Service In order to facilitate a rapid return of shipments in case of repairs, please follow the instructions of the input guide “Reshipment RMA” provided at the Service-Area within the f.u.n.k.e. AVIONICS GmbH web portal www.funkeavionics.com. -
Page 7: Operation

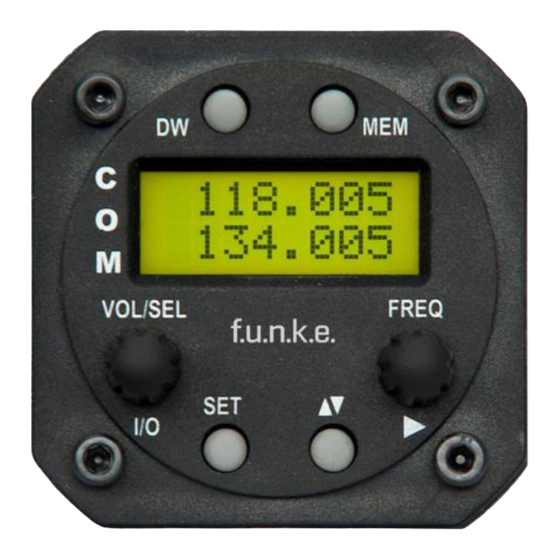

ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 2 OPERATION 2.1 Overview of Controls Position and naming of control elements: The control elements have following functionality: Switch On press button for appr. 0,5 s ON/OFF Switch Off press button for appr. 2 s Activates/deactivates the mode for mutual DUAL reception of standby frequency (display shows... -
Page 8: On/Off - Commissioning
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 1. Marking (underline) of value for adjustment; value changeable with FRQ or VOL/SEL Enter and continue with Cursor Button ► CURSOR short press 2. Activates the entry of names in MEM menu ... -
Page 9: Display
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation The radio starts with the same frequencies and settings from before being switched off. 2.3 Display The ATR833S display shows the frequencies and the operating condition on a 2 line LCD each with 8 digits. The active frequency is shown in the upper line, the stand-by frequency in the lower line. - Page 10 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation shows the successful storage > Memory stored of a frequency Transmission only with Very low supply voltage reduced power possible BATT (decreased radio range!) standard display when turning VOL 06 Volume level for receiving VOL/SEL knob Radio signal...
-
Page 11: Frequency Setting
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 2.4 Frequency Setting Frequency setting is always done by in two steps, as follows: 1. entering a new standby frequency to the desired value, and then 2. interchanging the new standby frequency and the previous active frequency by using the swap button . -
Page 12: Recall A Frequency From The User Memory
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation In order to speed up the entering of new frequencies, it is possible to configure the radio to allow entering only those frequencies that are used with 25 kHz channel width. Please refer to chapter 3.1 for information on this configuration. -
Page 13: Recall A Frequency From The List Of The 10 Last Used
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Respectively A push on the swap button interchanges the newly set standby frequency and the former active frequency and leaves the memory list menu. If no input is done for 10 seconds the device returns to the standard view. -
Page 14: Editing Of The User-Defined Frequency List
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation List entry „1“ contains the last standby frequency from the MEM menu If no input is done for 10 seconds, the device returns to the standard view. 2.4.5 Editing of the user-defined frequency list The standby frequency can be stored into any entry of the user memory. -
Page 15: Atr Frequency-Tool
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Every memory position can also store an identifier with up to 8 digits next to the frequency. To add a name go to the selected memory entry. To add the name, follow the next steps as for step 3 or step 4, above 5. -
Page 16: Vol - Volume
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 3. VOX Voice Activated Intercom (speech level required to activate the intercom) 4. INT Volume Intercom 5. STL Volume Sidetone left 6. STR Volume Sidetone right 7. EXT Volume of external audio signals 8. -
Page 17: Vox - Voice Activated Intercom
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Range 0 - 9 The setting for the squelch depends on different factors. For motor aircraft an initial higher setting is typically appropriate, gliders may use a lower value. A lower number means higher input sensitivity. This allows reception of weaker signals (radio stations at greater distance), but can also result in pickup of own-aircraft radio interference sources (engine, strobe lights etc.). -
Page 18: Int - Intercom Volume
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation In the case of very noisy backgrounds, or use of uncompensated microphones, the automatic VOX functionality may not work adequately. In these cases, it is possible to deactivate the VOX automatics with VOX: 0 = off, and to use an external intercom-switch instead. -
Page 19: Str - Volume Sidetone Right
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Range 0 – 20 2.5.6 STR – Volume Sidetone Right By briefly pressing the SET button five times you get access to the STR menu. Here the volume of the sidetone for the right seat can be adjusted. Range 0 –... -
Page 20: Brt - Brightness
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 2.5.8 BRT – Brightness By pressing the SET seven times the brightness of the backlight of the LCD display can be switched on and off (or adjusted) with the VOL/SEL turn knob. Range 0 - 9 2.5.9 CON –... -
Page 21: Reception
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation In order to re-enable transmission in this case, release PTT and push it again. When having more than one PTT button and microphones connected, the system can be configured (chapter 0) to use only one PTT button for transmissions. -
Page 22: Dual Watch Modus
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 2.8 Dual Watch Modus ATR833S comprises receiver; therefore DUAL-Watch (simultaneously monitoring two frequencies) is implemented by alternating automatically between the active and the standby frequency. With dual watch mode active, the standby frequency is tuned in, very briefly interrupted in regular intervals by the set auto-tuning to the active frequency for a fraction of a second. - Page 23 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Quick approach: Select or enter a standby frequency which is to be additionally monitored. Set SQL with the SET button and the rotary knob to a value of at least 01. ...
-
Page 24: Configuration
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 3 CONFIGURATION A very long press of SET (5 seconds) gives access to the configuration menu (Setup). The configuration menu is used for fundamental settings. To choose between the following settings, use the SET button: 1. -
Page 25: Display - Energy Saving Mode (Automatic Display Darkening)
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 8.33 kHz: allows input of both 8.33 kHz and 25 kHz channels 25 kHz: allows input of 25 kHz channels only. A short press of SET switches to the next configuration item. Please remember to enable 8.33 kHz channel selection before flying into areas where 8.33 kHz channels are used. -
Page 26: Ptt Slct - Ptt Button Selection
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation off xxx s: automatic display darkening after xxx seconds after last user interaction (xxx= 10s, 20s, 30s, 60s, 120s) Reactivation of the darkened display is done by pressing any key or turning any knob (the action of the key pressed is performed when pressing the key again after the display turned on) or when transmitting. - Page 27 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation all mics: both PTT buttons and all microphones are used for transmissions, no matter what PTT button is pressed. one mic: according to the PTT button pressed, the associated microphone is activated left: only the left PTT button and the left microphone(s) are used for transmissions right: only the right PTT button and the right microphone(s) are used for transmissions...
-
Page 28: Duowatch - Dual-Watch Volume Reduction
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation When deactivating one PTT button and microphone for transmissions, e.g. in order to keep passengers from interfering with ATC communication, don’t forget to reactivate the co-pilot’s PTT at the end of the flight. 3.4 DUOWATCH –... - Page 29 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation ever on: The external audio input is always on, even when in radio reception and transmit mode. Use this setting only for very high priority acoustic warnings, e.g. collision warning beep tones. auto off: The external audio input is automatically deactivated during transmit mode, or when no external audio activity is sensed.
-
Page 30: Mic L/R - Microphone Input Sensitivity
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 3.6 MIC L/R – Microphone Input Sensitivity Under the menu point “Microphone Input Sensitivity” you can adjust the gain of the microphone input and thus its sensitivity. The sensitivity can be adjusted with the VOL/SEL turn knob. The sensitivity can be adjusted separately for the left and right microphone. -
Page 31: Auto On - Power-On Behaviour
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation A short press of SET switches to the next configuration item. 3.8 AUTO ON – Power-On Behaviour The last menu point AUTO ON configures the power-on behaviour of the radio With setting "on" the radio is switched on as soon as power is supplied to the unit. -
Page 32: Fw / Sw - Firmware / Software Version
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 3.9 FW / SW – Firmware / Software Version The firmware and software versions are shown under these menu items. The user cannot change these. Display Firmware-NF (Example) Display Software-Kopf (Example) Here a short press of SET terminates the configuration menu and the unit returns to the standard view. -
Page 33: Master Reset - Reset To Factory Settings
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 3.10 Master Reset - Reset to Factory Settings With the following procedure all configurations are reset to the factory settings. Switch off the device. Press MEM and DW button simultaneously and switch the unit on with these buttons pressed. After the start display the following display appears Select Reset –... -
Page 34: Overview Configuration Menu (Setup)
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 3.11 Overview Configuration Menu (Setup) Document-Nr.: 01.142.010.71e / Revision:1.03... -
Page 35: Installation
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4 INSTALLATION 4.1 Advice and Tips The following suggestions should be considered before installing the unit. The assigned installation company shall be able to perform the wiring. For diagrams refer to section 0 Wiring. -
Page 36: Unpacking And Inspection Of The Equipment
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4.4 Unpacking and Inspection of the Equipment Carefully unpack the equipment. Damage due to transportation must be reported to the shipping company immediately. Save the shipping container and all packing materials to substantiate your claim. Please use the original packing material for storage and shipping. -
Page 37: Equipment Connections
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4.6 Equipment Connections One 25 pin D-SUB miniature connector includes all electrical connections, except for the antenna. The (+UB)-wire (PWR – Pin 11/12) has to be protected by a circuit breaker (4 Amp. slow-blow)! 4.6.1 Microphone Connection The ATR833S automatically detects which type of microphone, dynamic or standard is connected to the unit. -
Page 38: Operation With Cable Adapter
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Cable sets available from f.u.n.k.e. AVIONICS already have the external audio-input short-circuited with a blind plug. This blind plug can be easily removed in order to use the external audio input. If the external input is not used it needs to be short-circuited with GND, in order to avoid the pickup of electrical noise. - Page 39 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation D-SUB Connector 25 Pin Female seen from solder side Names Functionality LSP(+) Output external Loudspeaker Positive HEAD-0 (+) Output Headset-Speaker Positive GND (HEAD-0) Output Headset-Speaker Negative EXT-NF Input external Audio-Signal Pin 5 is connected with Pin 18 for compatibility reason with ATR500 und ATR833S cable harnesses.
- Page 40 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation do not connect Pin 10 is used by adapters for device identification +14 / +28V-PWR Input Power Supply +12V +14 / +28V-PWR Input Power Supply +12V BATT (-) Ground Side of Power Supply GND (MIC-1) Ground Microphone 1 PTT-0...
-
Page 41: Wiring With Cable Harness Bsks833D-S
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4.7.3 Wiring with Cable Harness BSKS833D-S 4.7.3.1 Overview BU 1 D-SUB DB-25 female 20 cm PTT 1 (right) yellow AMP Connector Male blue PTT 0 (left) orange AMP Connector Male blue 280 cm PIN 5 MIC 1 (right) PIN 18... - Page 42 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4.7.3.2 Connector D-SUB DE-9 Female for Remote Control This connector contains the serial interface and the power supplies for a remote control unit or Bluetooth adapter. Connector for the Remote 1: not connected Control cable 2: Remote RX...
-
Page 43: Antenna
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4.7.3.3 Connector EXT-NF for Monaural Audio Input This connector is used for the input of monaural audio signals. It can be used e.g. for acoustic traffic warnings, for radio navigation receiver’s acoustic identifiers, or for input of music into the headsets. The priority of radio reception in relation to this input can be configured as described in section 3.5. -
Page 44: Microphone / Intercom Settings
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation The HF antenna wire must not be included in any other cable sets, for example power supply or microphone. It must also not be placed together with other antenna wires, for example NAV or Transponder. 4.9 Microphone / Intercom settings The settings of MIC and VOX values are essential for Intercom. -
Page 45: Drawings
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4.11 Drawings 4.11.1 Dimensions Document-Nr.: 01.142.010.71e / Revision:1.03... -
Page 46: Mounting Advice
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 4.11.2 Mounting Advice For mounting in panels with a thickness of up to 5 mm use the fastening screw M4x8 (ZUB3). Dimensions in Dimensions of connector area panel cut-out No screws may be turned in more than max. 10 mm into the device –... -
Page 47: Appendix
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 5 APPENDIX 5.1 Frequency/Channel-Plan In the following table examples for operating and displayed frequencies in the range between 118.000 ... 118.100 MHz are given. This table can be continued to 136.975 MHz following the same scheme. Operating Channel Displayed... -
Page 48: Technical Data
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation 5.2 Technical Data GENERAL COMPLIANCE ETSO-2C169a, ED23C Transceiver Class 4, 6 Receiver Class C, E, H1 & H2 ETSO 2C128 DIMENSIONS Height: 65 mm (2,56 in) Width: 65 mm (2,56 in) Depth: 163 mm (6,42 in) WEIGHT 0,38 kg (0,84 lbs) MOUNTING... - Page 49 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation FREQUENCY RANGE 118,000 MHz .. 136,975 MHz FREQUENCY STABILITY ±5 ppm at -20 °C .. + 55 °C COMPASS-SAFE DISTANCE 30 cm INTERCOM-INPUT Microphone inputs are connected to the intercom input. 100 mVRMS at the microphone input produce 0,5W output power at the headphone (300Ω).
-
Page 50: Environmental Conditions
ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation SELECTIVITY -40 dB- bandwidth < ±17.0 kHz (channel spacing 25 kHz) -60 dB- bandwidth < ±25.0 kHz SELECTIVITY -60 dB-bandwidth < ±7.37 kHz (channel spacing 8.33 kHz) ≥4 W an 4 Ω (Loudspeaker) NF-OUTPUT AF output deviation <... - Page 51 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Characteristic DO–160F Section Cat Condition ALTITUDE 4.6.1 C1 35 000 ft TEMPERATURE 2°C change rate minimum VARIATION per minute HUMIDITY 6 G operational shocks (11ms) SHOCK 20 G Crash Safety Test Type R in all 6 directions (11ms) VIBRATION Vibration Curve M...
- Page 52 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Characteristic DO–160F Section Cat Condition ENERGY LIGHTNING INDUCED No ED23 test, TRANSIENT 22.0 not required SUSCEPTIBILITY LIGHTNING DIRECT 23.0 No test required EFFECTS ICING 24.0 No test required ELECTROSTATIC 25.0 DISCHARGE (ESD) FIRE, FLAMMABILITY 26.0 Document-Nr.: 01.142.010.71e / Revision:1.03...
- Page 53 ATR833S / P/N 833S-(Cxxx)-(Cxxx) Operation and Installation Notices: Document-Nr.: 01.142.010.71e / Revision:1.03...
- Page 54 f.u.n.k.e. AVIONICS GmbH Heinz-Strachowitz-Str. 4 DE-86807 Buchloe Germany phone.: +49-8241 80066 0 fax.: +49-8241 80066 99 E-mail: service@funkeavionics.de www.funkeavionics.de f.u.n.k.e. means – fabrication · utilities · network · know-how · engineering k.e.
