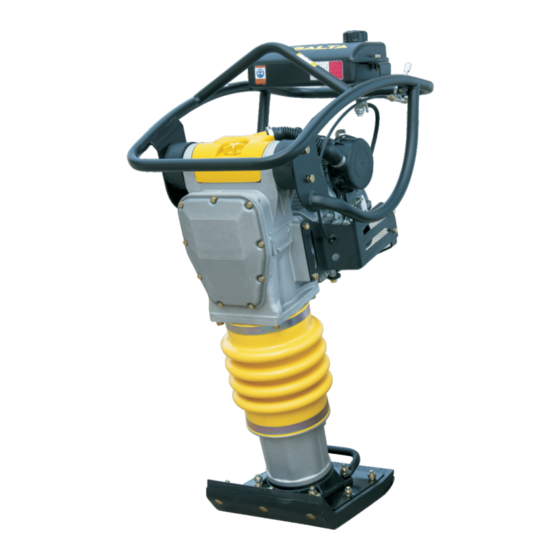

- Page 1 MR70R WARNING...
-
Page 2: Table Of Contents
Contents Introduction…………………………………………………..……………………………………………1 Application ………………………………………………………………………………………..……….2 Operating safety……………………………………………………………………………………..… 2-4 Label locations…………………………………………………………………………………………….4 Safety and Operating Labels …………………………………………………………………….5-6 Prior to Starting the Operation ………………………………………………………………………..6-7 Operation ………………………………………………………………………………………………… 7-8 Service and Maintenance ………………………………..…………………………………………… 8-9 Specification ………………………………………………..………………………………………………9 Transportation ………………………………………………….………………………………………….10 Trouble shooting ……………………………………………….……………………..……………….10-11 Warranty and Maintenance Record ………………………………………….……………………….. 12 EC Declaration ……………………………………………………………………………………………. -
Page 3: Application
NEVER touch hot muffler, engine cylinders, or cooling fins. Burns will result. NEVER use accessories or attachments which are not recommended by MASALTA for rammer. Damage to rammer and/or injury to user may result. NEVER leave a running machine unattended. - Page 4 NEVER run machine indoors or in an enclosed area such as a deep trench unless adequate ventilation is provided. Exhaust gas from the engine contains poisonous carbon monoxide gas; exposure to carbon monoxide can cause loss of consciousness and may lead to death. NEVER tamper with or disable the function of operating controls.
-
Page 5: Label Locations
ALWAYS replace worn or damaged components operating rammer. with spare parts designed and recommended by DO NOT alter engine speeds. Run engine MASALTA for servicing this rammer. only at speeds specified in Technical Data Section. Label Location... -
Page 6: Safety And Operating Labels
Safety and Operating Labels MASALTA machines use international pictorial labels where needed. These labels are described below: Label Meaning DANGER! Engines emit carbon monoxide; operate only in well-ventilate area. Read the Operator’s Manual for machine information. No sparks, flames, or burning objects near the machine. -
Page 7: Prior To Starting The Operation
Label Meaning CAUTION! For optimal control, performance, and minimal hand/arm vibration, grasp handle as shown. WARNING! Serious injury if struck by compressed spring or cover. If the spring system cover is removed improperly, the springs can eject. Guaranteed sound power level in dB(A). NOTICE! Throttle control lever: Turtle = Idle or Slow... -
Page 8: Operation
Check every bolt, nut or screwed area for tightness. Loosened due to vibration may result in unexpectedly serious trouble. Be sure to tighten any screwed area. Remove dirt and dust. Particularly clean the vicinity of recoil starter and foot. Operation Starting up for Petrol engine 1. -
Page 9: Service And Maintenance
To Stop Normal shutdown 1. With the throttle lever closed from ON to OFF, run the engine for 3-5 minutes at low speed, and after temperature is lowered, turn the switch to the “OFF” position. 2. Close the fuel shut-off valve by moving the fuel cock lever to the CLOSED position. Emergency shutdown Move the throttle lever quickly to the IDLE position, and turn the engine ON/OFF switch to the OFF position. -
Page 10: Specification
Measured sound power level 103dB Guaranteed sound power level 104dB Sound Power Level Limit 108dB Working Size (L x W x H): MR70R: 760 x 430 x 1020 mm Hand-Arm vibration Specification (According to ISO 5394, EN 1033 and EN500-4): 7.0m/s... -
Page 11: Transportation
Transportation 1. Shutdown engine for transportation. 2. For transportation, tighten fuel tank cap securely and close fuel cock to prevent fuel from spilling. 3. Drain fuel for transportation over long distance or bad road. 4. Secure machine firmly to prevent it from moving or tipping. 5. - Page 12 B. Engine Troubleshooting Guide SYMPTOM POSSIBLE CAUSE SOLUTION Difficult to start Ignition plug being bridging? Check ignition system. Fuel is available but spark Carbon deposit at ignition? Clean or replace ignition. plug will not ignite.(Power available at high tension Short circuit due to deficient insulator? Replace insulators.
-
Page 13: Warranty And Maintenance Record
WARRANTY WARRANTY WARRANTY WARRANTY These products are covered by warranty for a period of six (6) months from the date of purchase against defects in material or workmanship provided that: · The product concerned has been operated and maintained in accordance with the operating instructions. ·... -
Page 14: Ec Declaration
CE-KONFORMITÄTSERKLÄUNG DECLARACIÓN DE CONFORMIDAD DE LA CE DÉCLARATION DE CONFORMITÉ C.E. MASALTA ENGINEERING CO., LTD 20 Dalian Road, Baohe Industrial Estate, HeFei 230051, China hereby certifies that the construction equipment specified hereunder / bescheinigt, da. das Bauger.t / certifica que la máquina de construcción / atteste que le matériel : Category / Art / Categoría / Catégorie:... - Page 15 Distributed By MASALTA ENGINEERING CO., LTD Add: 20 Dalian Road, Baohe Industrial Estate, Hefei 230051, China Tel: 86-551-64846601, 64846580 Fax: 86-551-64846616, 64846626 E-mail: sales@masalta.com.cn, masalta@mail.hf.ah.cn Http://www.masalta.com.cn Version: 01/14/01...
