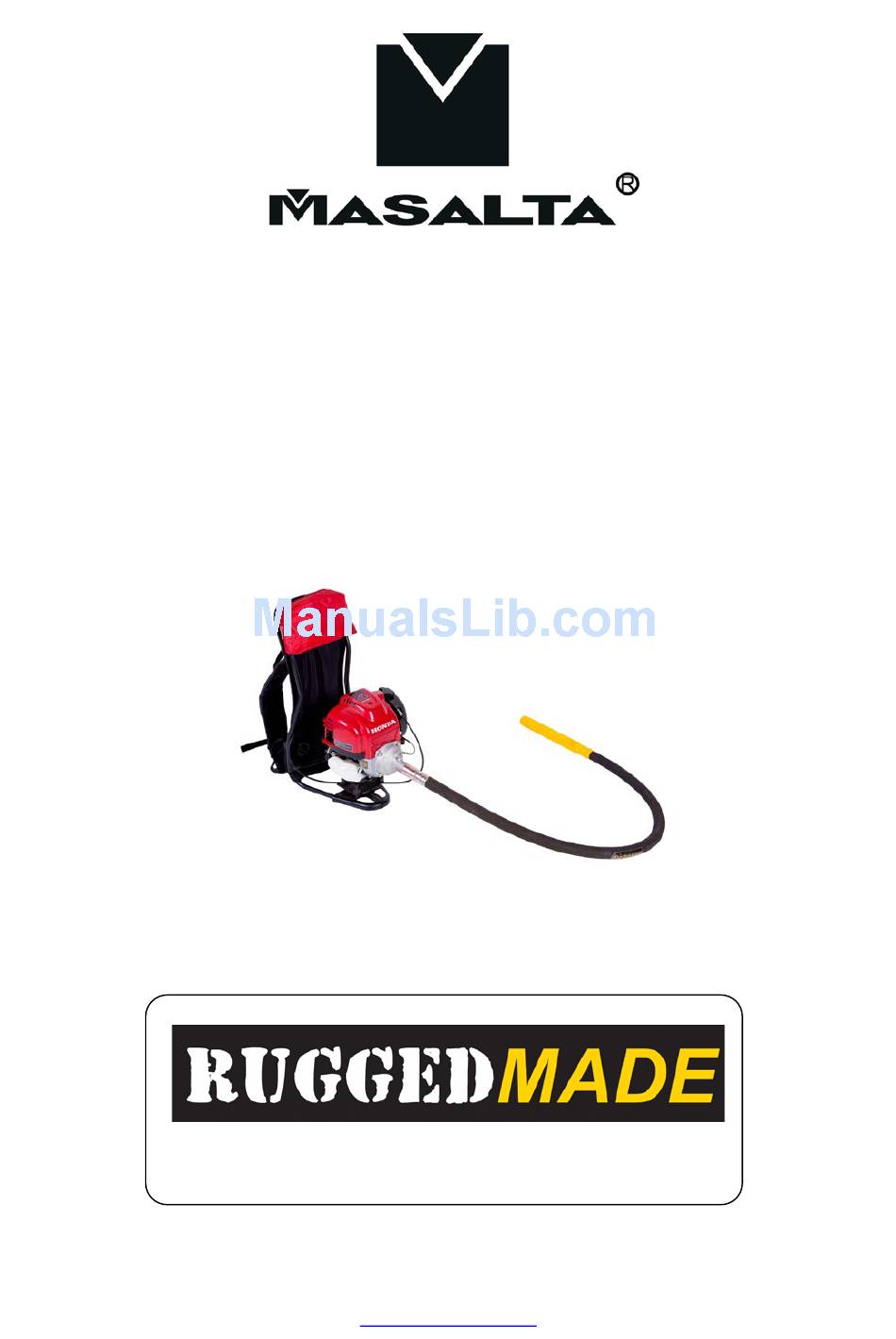

- Page 1 MPG PORTABLE VIBRATING POKER DRIVE OWNER’S MANUAL AND PARTS LIST Distributed By www.ruggedmade.com MASALTA ENGINEERING CO., LTD www.masalta.com.cn...
-
Page 2: Table Of Contents
Table of Contents 1. SAFETY INFORMATION 1.1 Safety Precautions …………………..…………………………………………………… . 2 1.2 Operating Safety…………………………………………………………………………..3 1.3 Operator Safety while using Internal Combustion Engines……………………………..4 2. OPERATION 2.1 Operating Principle…………………………………………………………………………… ….. 5 2.2 Delivery Checks ……………………………………………………………………….………… . 5 2.3 Before Starting……………………………………………………..………………….…………..5 2.4 To Start ……………………………………………………………………………………………..5 2.5 To Stop ……………………………………………………………….………………………….. -
Page 3: Safety Information
SAFETY INFORMATON 1.1 Safety Precautions Before operating the machine, read both the manual and the engine manual carefully to become familiar with the location and proper use of all controls. Do not allow untrained or unauthorized personnel, especially children, to operate this machine. -
Page 4: Operating Safety
SAFETY INFORMATON 1.2 Operating Safety DO NOT modify the machine without the prior consent of the manufacturer. We do not assume responsibility for any accident due to equipment modification. NEVER operate the machine in purpose for which it is not intended. NEVER allow anyone to operate the machine without proper training. -
Page 5: Operator Safety While Using Internal Combustion Engines
SAFETY INFORMATION 1.3 Operator Safety while using Internal Combustion Engines DO NOT smoke when refueling the engine or operating the machine. DO NOT refuel a hot or running engine. ALWAYS keep away from all hot or spark-generating objects when refuel the engine. -
Page 6: Operation
OPERATION 2.1 Operating Principle The following instructions were compiled to provide you information on how to obtain long and trouble free use of the machine. Periodic maintenance of the machine is essential. Read the manual carefully and thoroughly familiarize yourself with the machine and all it’s functions. -
Page 7: To Stop
OPERATION 2.5 To Stop 1．Move the throttle lever to the MIN position. 2．Turn the engine switch on the equipment to the OFF position. 2.6 Operation 1．Keep the bending radius of the flexible hose to a minimum during use. 2．DO NOT start the machine with the vibrator head immersed in the concrete mix. After the engine machine has started, immerse the vibrator head quickly into the concrete mix. -
Page 8: Periodic Maintenance Schedule
MAINTENANCE 3 MAINTENANCE 3.1 Periodic Maintenance Schedule To get long use and free of trouble, it is essential to perform periodic maintenance on the engine and machine. A copy of the engine Operation Manual was supplied with the machine. Every Every Every After first... -
Page 9: Spark Plug
MAINTENANCE 3.3 Spark Plug Check and clean spark plugs regularly. A fouled, dirty spark plug may cause hard starting and poor engine performance. Set spark plug gap to recommended clearance. Refer to engine manual. The muffler and engine cylinder become very hot during operation and remain hot for a while after stopping the engine. -
Page 10: Troubleshooting
MAINTENANCE 3.7 Troubleshooting SYMPTOM POSSIBLE CAUSES SOLUTION Flexible shaft is too No lubrication? Grease inner core. hot to hold. Vibrator does not Engine? Deposits built up in engine. develop full speed. Check engine air filter. Throttle is defective or out of adjustment. -
Page 11: Technical Data
TECHNICAL DATA 4. TECHNICAL DATA Drive Unit Model No. Power kw (hp) MPG3215 1.2 (1.6) MPG3225 1.2 (1.6) MPG3815 1.2 (1.6) MPG3825 1.2 (1.6) Vibrator Head Dia x Length Vibrator Amplitude Frequency Revolution of Flexible Shaft (mm x m) 32 x 1.5 3000-3600 32 x 2.5... -
Page 12: Warranty
WARRANTY 5. WARRANTY MASTERPAC products are covered by warranty for a period of twelve (12) months from the date of purchase against defects in material or workmanship provided that: The product concerned has been operated and maintained in accordance with the operating instructions. -
Page 13: Maintenance Record
MAINTENANCE RECORD PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN The machine has been assembled with care and will provide years of service. Preventative maintenance and routine service are essential to the long life of your machine. After reading through this manual thoroughly, you will find that you can do some of the regular maintenance by yourself. - Page 14 MPG PORTABLE CONCRETE VIBRATOR POKER DRIVE PARTS LIST...
- Page 15 PARTS LIST MPG SERIES...
- Page 16 BEARING 6202-2RZ/P6 GB/T893.1 STOP RING 35 BG-328.8.1 CLUTCH DRUM COMP. BG430.2.1-1 CLUTCH CASE GB/T9074.13 SCREW M6X20 PBP.01.02-1 HOSE JOINT (32MM) FOR MPG3215、MPG3225 PBP.01.02-2 HOSE JOINT (38MM) FOR MPG3815、MPG3825 PBP.01.01-1 HOSE COUPLING (32MM) FOR MPG3215、MPG3225 PBP.01.01-2 HOSE COUPLING (38MM) FOR MPG3815、MPG3825 MPG.01.05-1 CONNECTOR(32MM) FOR MPG3215、MPG3225...
