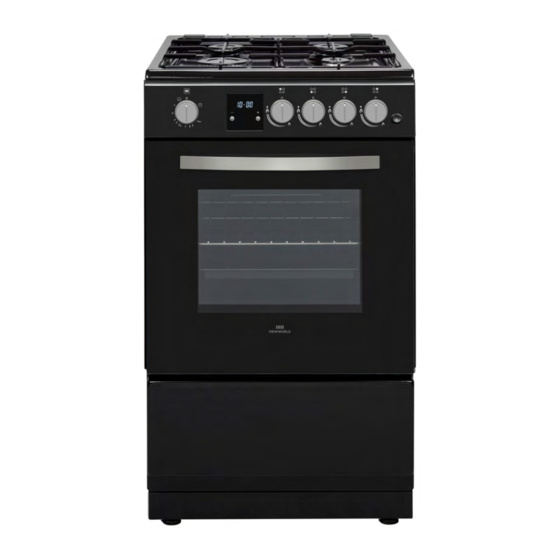

Newworld NWLS50SGW Instruction Manual
  1. Manuals
  2. Brands
  3. Newworld Manuals
  4. Cookers
  5. NWLS50SGW
  6. Instruction manual

Newworld NWLS50SGW Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction manual
Gas Cooker
NWLS50SGW
NWLS50SGB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NWLS50SGW and is the answer not in the manual?

Questions and answers

Related Manuals for Newworld NWLS50SGW

Summary of Contents for Newworld NWLS50SGW

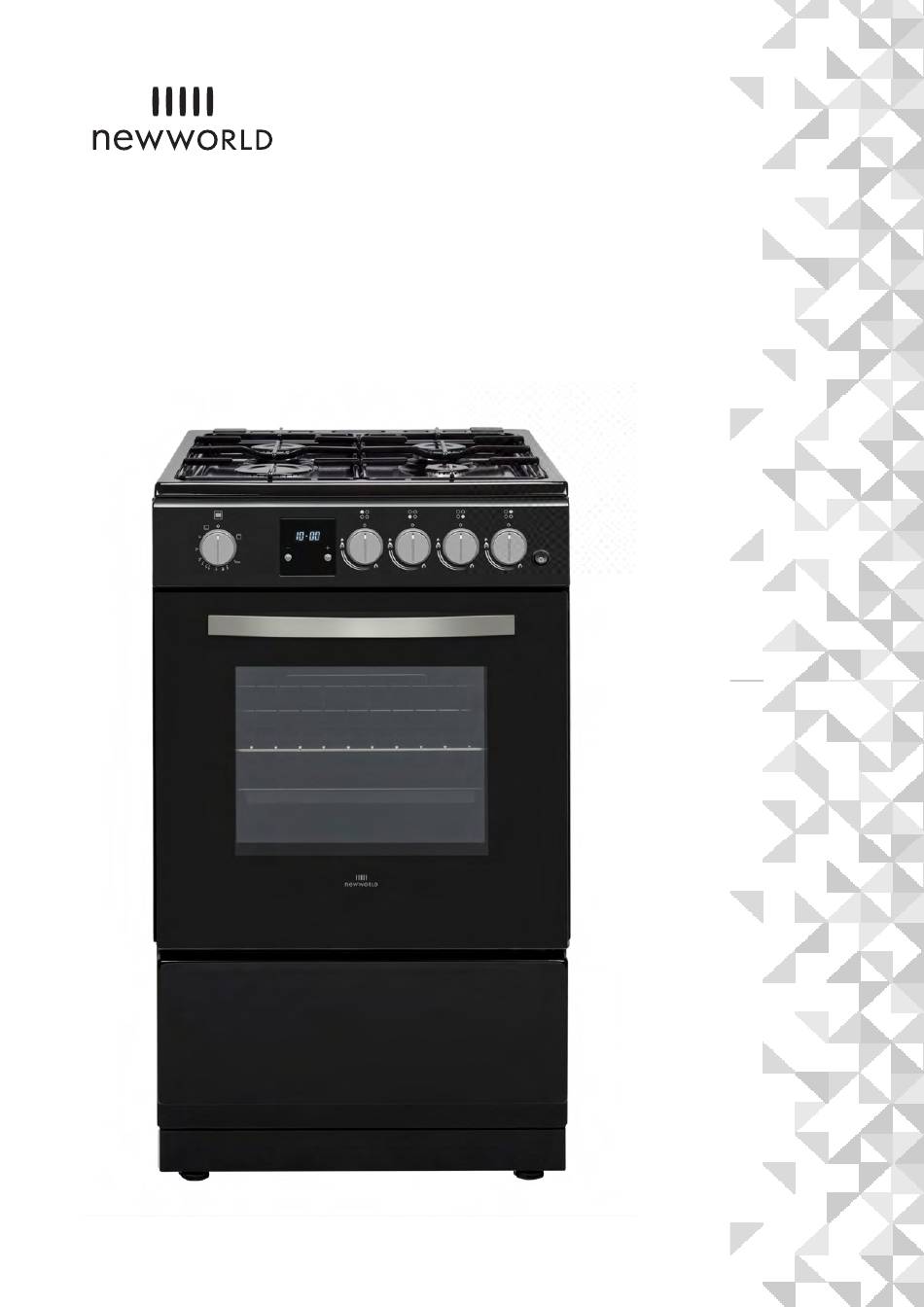

  • Page 1 Instruction manual Gas Cooker NWLS50SGW NWLS50SGB...
  • Page 2 You’ll soon be enjoying your new Gas Cooker. It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. Help and Guidance We’re here to help you get the most from your Gas Cooker.

  • Page 3: Table Of Contents

    Contents Safety information Care and maintenance Cleaning Safety information Maintenance Getting to know your gas Product support cooker Troubleshooting Transport Ready? Let’s begin Help and assistance Product features Declaration of conformance to product Control panel standards Installing your gas cooker Disposal Guarantee Installatıon and preparatıon for use...

  • Page 4: Safety Information

    Safety information Important - Please read these instructions fully before installing or operating • Carefully read all instructions before using your the oven. appliance and keep them in a convenient place for • Handles may become hot after a short period reference when necessary.
  • Page 5 Safety information Important - Please read these instructions fully before installing or operating should be installed and connected in accordance In the case of a defect do not use the appliance with current installation regulations. Particular and contact a qualified service agent immediately. attention shall be given to the relevant requirements The materials used for packaging (nylon, staplers, regarding ventilation.
  • Page 6 Safety information Important - Please read these instructions fully before installing or operating in use. control panel. • The trays incline when pulled out. Take care not to • To maintain the efficiency and safety of your spill or drop hot food when removing it from the appliance, we recommend you always use original oven.
  • Page 7 Safety information Important - Please read these instructions fully before installing or operating or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263. Safety information...

  • Page 8: Getting To Know Your Gas Cooker

    Getting to know your gas cooker You’ll be up and running in no time Ready? Let’s begin... Please read these instructions carefully. They contain important information which will help you get the best from your Gas Cooker and ensure safe and correct installation and operation.

  • Page 9: Product Features

    Getting to know your gas cooker You’ll be up and running in no time Product features List of Components Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. Accessories The Wire Grid for Deep Trays The Deep Tray...

  • Page 10: Installing Your Gas Cooker

    Installing your gas cooker...

  • Page 11: Installatıon And Preparatıon For Use

    Installatıon and preparatıon for use WARNING : This appliance must be installed by an authorised service person or qualified technician, Air inlet section min. according to the instructions in this guide and in 100 cm compliance with the current local regulations. •...

  • Page 12: Gas Connection

    Installing your gas cooker Bringing it all together WARNING: This appliance must be installed Installation of the cooker by an authorised service person or qualified technician. • If the kitchen furniture is higher than the cooktop, the kitchen furniture must be at least 10 cm away from the sides of appliance for air circulation.
  • Page 13 WARNING: This appliance must be installed by an authorised service person or qualified Points that must be checked during technician. fixed gas connection assembly The method used to assemble a fixed gas connection (gas connection made by threads, e.g. a nut varies table, to be able to get the most efficient use and to according to the country you are in.

  • Page 14: Gas Conversion (If Available)

    Installing your gas cooker Bringing it all together Burner cap Gas pipe Adapter Seal Mechanical gas hose Mechaniccal Spanner gas hose Adapter Mechanical gas hose Oven/Grill (if available) Injectors WARNING: The Cooker must be installed and maintained by a suitably qualified gas registered The oven and grill injectors are held in position by a technician in accordance with current safety legislation.

  • Page 15: Electrical Connection And Safety

    Installing your gas cooker Bringing it all together For the oven burner, operate the oven burner at the WARNING: This appliance must be installed by an authorised service person or qualified minimum position for 5 minutes, then open and close technician.

  • Page 16: Anti-Tilting Kit

    Installing your gas cooker Bringing it all together Anti-tilting kit WARNING: This appliance must be installed by an authorised service person or qualified technician. Screw (x1) • During installation, please ensure that isolated Anti-tilting Bracket cables are used. An incorrect connection could (x1) (will be damage your appliance.

  • Page 17: Adjusting The Feet

    Adjusting the feet Your product stands on four adjustable feet. For safe operation, it is important that your appliance is correctly balanced. Make sure the appliance is level prior to cooking. To increase the height of the appliance, turn the feet anti-clockwise. To decrease the height of the appliance, turn the feet clockwise.
  • Page 18 Installing your gas cooker Bringing it all together or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263. Installing your gas cooker...

  • Page 19: Functions

    Functions...

  • Page 20: Use Of Gas Burners

    Functions Simple everyday use Use of gas burners the knob until you see a stable flame on the burner. Flame safety device Ignition of the burners Hob burners The position symbol above each control knob indicates Hobs equipped with a flame failure device provide the burner that the knob controls.

  • Page 21: Oven Controls

    Functions Simple everyday use After ignition, visually check the flames. If you see • The temperature of accessible parts may become a yellow tip, lifted or unstable flame, switch the gas high while the appliance is operating. It is imperative flow off, then check the assembly of burner caps and that children and animals are kept well away from crowns once they have cooled.
  • Page 22 Functions Simple everyday use oven off, turn the knob in the clockwise direction to the during cooking or remove the top tray when the “0” position. food on it is cooked and move the lower tray to the higher shelf to finish cooking. Preheating When you need to preheat the oven, we recommend •...
  • Page 23 Functions Simple everyday use Assembling the grill heat shield moist during cooking. • Food should be placed in the centre of the grid to allow for maximum circulation of air. • Never cover the grill pan or grid with foil as this can lead to grill fires.
  • Page 24 Functions Simple everyday use 2. Select the desired time period using the “+” and “-” keys while is flashing. 3. The symbol will remain illuminated, the time will be saved and the warning will be set. When the timer reaches zero, an audible warning will sound and the symbol will flash on the display.
  • Page 25 Functions Simple everyday use or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263. Functions...

  • Page 26: Using Your Gas Cooker

    Using your gas cooker...

  • Page 27: Accessories

    Using your gas cooker Getting the most from your appliance Accessories The Wire Grid for Deep Trays The Grill Heat Shield Make sure the wire grid is correctly placed within a deep tray. It is recommended to use this accessory for WARNING grilling steaks, meatballs and similar food.
  • Page 28 Using your gas cooker Getting the most from your appliance The EasyFix Wire Rack Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. • Insert the accessory to the correct position inside the oven.
  • Page 29 Using your gas cooker Getting the most from your appliance Injector table G30 28-30mbar 10,3 kW 749 g/h G30/G31 II2H3+ Class: 1 G20 20 mbar 28-30/37 mbar LARGE BURNER DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) CONSUMPTION 276 l/h 218,1 g/h MEDIUM BURNER DIA.
  • Page 30 Using your gas cooker Getting the most from your appliance Brand NWLS50SGW Model NWLS50SGB Type of Oven Mass 35,0 Energy Efficiency Index - conventional 94,5 Energy Efficiency Index - fan forced Energy Class 5,58 Energy consumption (gas) - conventional MJ/cycle - kWh/cycle...
  • Page 31 Using your gas cooker Getting the most from your appliance Brand NWLS50SGW Model NWLS50SGB Type of Hob Number of Cooking Zones Heating Technology-1 Size-1 Auxiliary Energy Efficiency-1 Heating Technology-2 Size-2 Semi-Rapid Energy Efficiency-2 59,0 Heating Technology-3 Size-3 Semi-Rapid Energy Efficiency-3...
  • Page 32 Care and maintenance or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263.
  • Page 33 Care and maintenance Looking after your appliance soapy water. Then, wipe the hob surface over again Cleaning with a wet cloth and dry it. WARNING: Switch off the appliance and allow it to • Wash and rinse the hob-burner caps. Do not leave cool before cleaning is to be carried out.
  • Page 34 Care and maintenance Looking after your appliance Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time. Removal of the oven door Before cleaning the oven door glass, you must remove the oven door, as shown below.
  • Page 35 Care and maintenance Looking after your appliance defect is found, contact an authorised service provider to have it changed. • If a defect is found while operating the control knobs of the appliance, contact an authorised service provider. or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263. Care and maintenance...
  • Page 36 Product support...
  • Page 37 Product support Help is always at hand Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the position of the control knob. The oven and/or grill may be in the ´off` position.
  • Page 38 Help and assistance If you require any technical guidance or find that your Gas oven is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263. To help give us give you a fast and efficient service please have the following information ready: You can find these on Model Ref.
  • Page 39 Product support Help is always at hand Declaration of conformance to Disposal product standards • The symbol on the product or on its packaging indicates that this product may We declare that our products meet the applicable not be treated as household waste. Instead European Directives, Decisions and Regulations and it shall be handed over to the applicable the requirements listed in the standards referenced.
  • Page 40 0333 3052263 Your NewWorld Guarantee This product is guaranteed for twenty-four months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will be repaired free of charge (or if applicable the product will be replaced or the purchase price refunded) where possible during this period by the dealer from who your purchased the unit.
  • Page 41 Contact: www.newworldassist.co.uk 52253857 Helpline: 0333 3052263...
