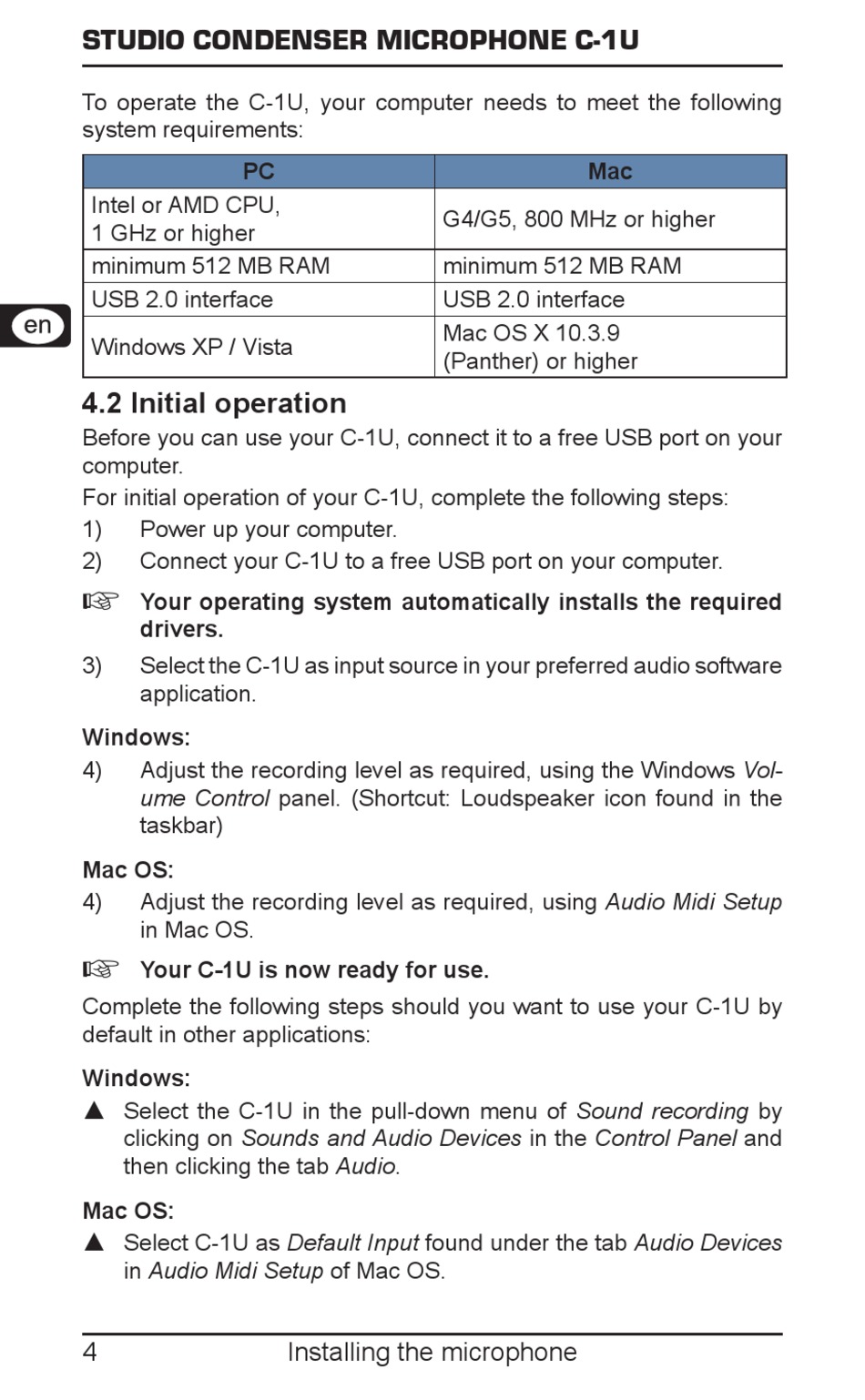

STUDIO CONDENSER MICROPHONE C‑1U
To operate the C-1U, your computer needs to meet the following
system requirements:
PC
Intel or AMD CPU,
1 GHz or higher
minimum 512 MB RAM
USB 2.0 interface
Windows XP / Vista
4.2

Initial operation

Before you can use your C-1U, connect it to a free USB port on your
computer.
For initial operation of your C-1U, complete the following steps:
1) Power up your computer.
2) Connect your C-1U to a free USB port on your computer.
Your operating system automatically installs the required
+
drivers.
3) Select the C-1U as input source in your preferred audio software
application.
Windows:
4) Adjust the recording level as required, using the Windows Vol-
ume Control panel. (Shortcut: Loudspeaker icon found in the
taskbar)
Mac OS:
4) Adjust the recording level as required, using Audio Midi Setup
in Mac OS.
Your C‑1U is now ready for use.
+
Complete the following steps should you want to use your C-1U by
default in other applications:
Windows:
Select the C-1U in the pull-down menu of
=
clicking on Sounds and Audio Devices in the Control Panel and
then clicking the tab Audio.
Mac OS:
Select C-1U as
=
in Audio Midi Setup of Mac OS.
4
G4/G5, 800 MHz or higher
minimum 512 MB RAM
USB 2.0 interface
Mac OS X 10.3.9
(Panther) or higher
Default Input found under the tab Audio Devices

Installing the microphone

Mac
Sound recording by
