Stoveman 16 Installation And Operating Manual

SAUNA HEATER INSTALLATION AND OPERATING MANUAL
Type
Models
Heating output in the sauna room
Sauna room cubage
Fuel
Refuelling loads
Minimum required draft
Required temperature class of chimney
Inner diameter of a chimney pipe to be connected to the
heater
Safety distance to combustible materials:
sides
ceiling
back
front (from the furnace door)
Carbon dioxide emissions at 13% O
Total efficiency
Flue gas temperature
Weight without sauna stones
Weight of sauna stones
Diameter of sauna stones
Minimum cross-section of ventilation openings
Minimum cross-section of smoke flue
Thickness of furnace walls and ceiling
Opening of the ash drawer after igniting the stove
Mass of generated flue gas
Table 1. Heater specifications
1. GENERAL
Stoveman product range includes various modifications of sauna heaters. You can choose between round and angular shaped
stoves. The heater may have a door panel made of heat-resistant glass or metal (M). The heater can be heated directly from
the hot room or have an extended fire chamber (LS) to be heated
from another room.
Declaration of performance for the purchased
sauna heater type is annexed to the manual.
Choose the heater with suitable heating output for your sauna
room. Sauna room's suitable cubage for this heater is given in the
specifications.
When choosing a suitable heater it is important to know that
uninsulated wall and ceiling surfaces (such as brick, glass, stone
and concrete surfaces) increase the required output of the heater.
Our sales assistant or a representative of our factory can assist you
at choosing a suitable heater or you can use a special application
for choosing the heater on our website
http://www.stoveman.ee/kerise-valimine/
1.1. Heater components
(See Fig. 1)
1- Heater stones (not included in the supply)
2- Steel mesh
3- Cleaning hatch
4- Flue gas outlet to be connected with chimney pipe
5- Heater casing
6- Fire chamber door
7- Glass panel door (optional metal door)
8- Ash drawer
9- Fire chamber extension for wall penetration (LS models)
10- Fire grate
Stoveman 16
16R; 16R-M; 16; 16-M; 16R-LS; 16R-M-LS;
16-M-LS; 16-LS
17 kW
8-16 m³
Wood logs up to 40 cm in length
11,2 kg in three parts
12 Pa
T600
115 mm
500 mm
1200 mm
500 mm
1000 mm
content 0.61%
2
66%
443 °C
70 kg / LS 82 kg; Heavy 92 kg / LS 107 kg
140 kg
10–15 cm
7850 mm²
10200 mm²
5 mm; Heavy-8mm
up to 10 mm
14,7 g/s
www.stoveman.ee

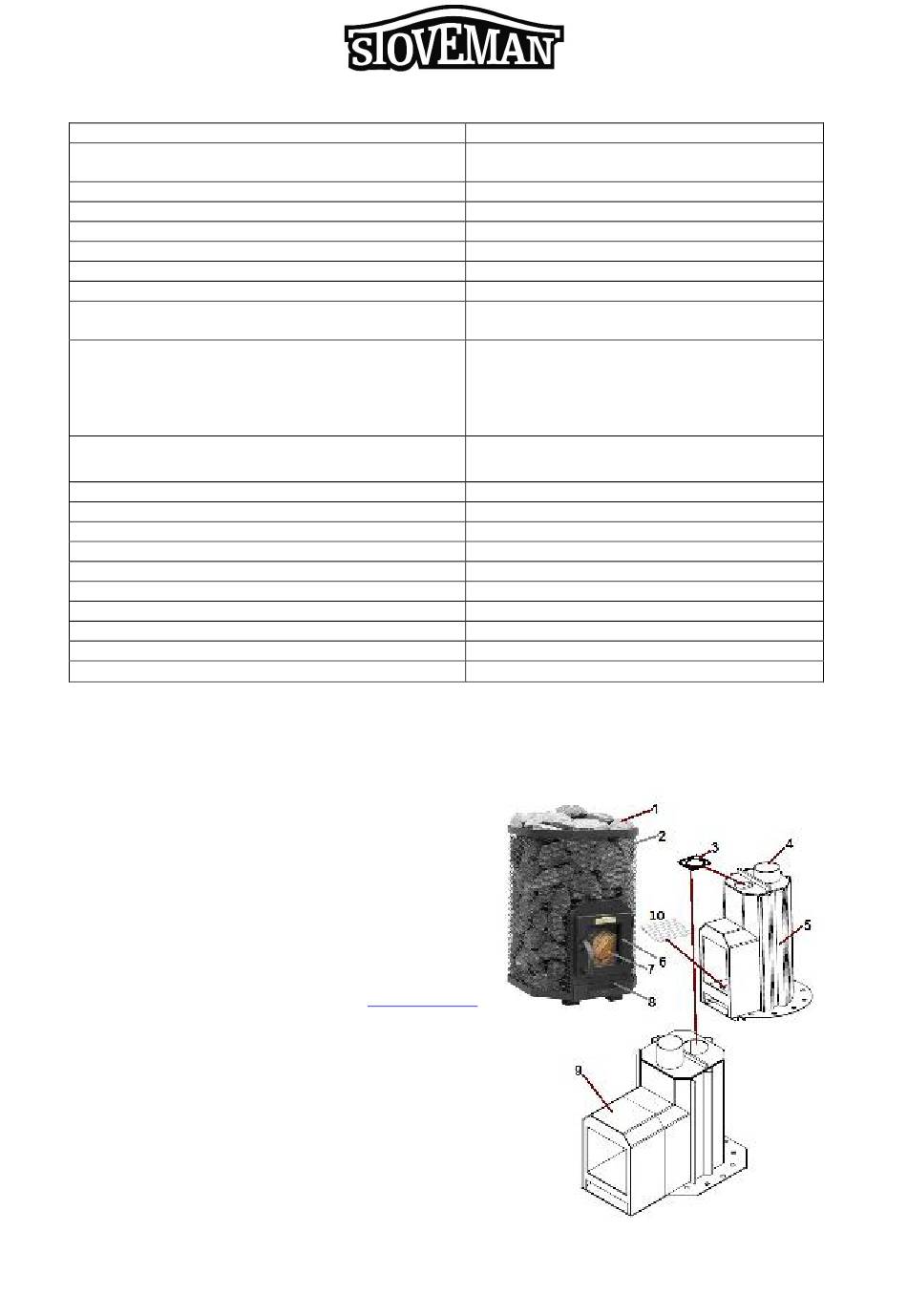

Figure 1. Heater components
