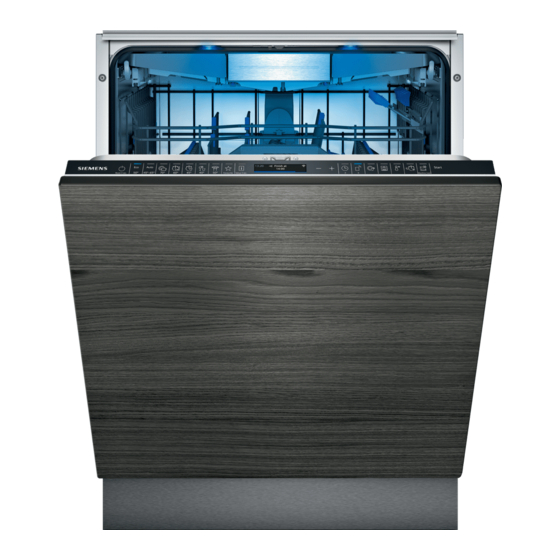

- Page 1 Dishwasher SN87YX01CE User manual Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliances...
-
Page 2: Table Of Contents
Table of contents Safety .......... 4 Features......... 23 General information...... 4 Top basket ........ 23 Intended use........ 4 Bottom basket ........ 24 Restriction on user group.... 4 Cutlery drawer ........ 24 Safe installation ........ 5 Etagere ........... 25 Safe use ........... 6 Folding prongs ....... 25 Damaged appliance ...... 8 glassZone........ 26 Risk to children ........ 9 Basket heights........ 27... - Page 3 Setting additional functions .... 36 Protect appliance from frost... 62 Setting timer programming .... 36 Transporting the appliance .... 62 Starting the programme .... 36 Disposing of old appliance .... 62 Interrupting programme .... 37 Customer Service...... 62 Terminate programme.... 37 Product number (E-Nr.), produc- Display programme information.. 37 tion number (FD) and consecut- Switching off appliance .... 37 ive numbering (Z-Nr.) ..... 63...
-
Page 4: Safety
en Safety Safety Please read the safety information to ensure that you use the ap- pliance safely. General information You can find general information for this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡... -
Page 5: Safe Installation
Safety en Keep children under the age of 8 years away from the appliance and power cable. Safe installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of injury! Improper installation may cause injury. ▶ When installing and connecting the appliance, follow the in- structions in the manual and installation instructions. -
Page 6: Safe Use
en Safety WARNING ‒ Risk of fire! It is dangerous to use an extended power cord and non-ap- proved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ If the power cord is too short, contact Customer Service. ▶ Only use adapters approved by the manufacturer. WARNING ‒ Risk of injury! Hinges move when opening and closing the appliance door and can cause injury. - Page 7 Safety en ¡ Highly caustic alkaline or highly acidic cleaning agents in con- junction with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in conjunction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety ¡ If the insulation of the power cord is damaged, this is danger- ous. ▶ Never let the power cord come into contact with hot appli- ance parts or heat sources. ▶ Never let the power cord come into contact with sharp points or edges. -
Page 9: Risk To Children
Safety en Risk to children Follow the safety instructions if there are children in your home. WARNING ‒ Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶... -
Page 10: Safety Systems
en Safety WARNING ‒ Risk of injury! Children may get their fingers caught in the slots of the tablet collecting tray and injure themselves. ▶ Keep children away from the appliance when open. WARNING ‒ Risk of suffocation! Children may become trapped in the appliance and suffocate. ▶... -
Page 11: Preventing Material Damage
Preventing material damage en ¡ Modified or damaged water hoses Preventing material damage Preventing material dam- may result in material damage and damage to the appliance. Never kink, crush, modify or cut ▶ through water hoses. Follow these instructions to prevent Preventing material damage Only use the water hoses sup- material damage to your appliance,... -
Page 12: Childproof Lock
en Childproof lock ¡ Unsuitable cleaning agents may Environmental protection and saving energy Environmental protection damage the appliance. Do not use a steam cleaner. and saving energy ▶ So as not to scratch the finish ▶ on the appliance, do not use Help protect the environment by us- Environmental protection and saving energy sponges with a rough surface or... -
Page 13: Zeolith Drying
Environmental protection and saving energy en Zeolith drying Sensors The appliance features a Zeolith con- The sensors adjust the programme tainer. Zeolith drying lets you save sequence and strength in the auto- energy. matic programmes depending on the Zeolite is a mineral that can store level and type of soiling. -
Page 14: Installation And Connection
en Installation and connection If the automatic door opening is de- walls. If you subsequently install your activated, energy consumption in- dishwasher as a free-standing appli- creases and the drying phase is usu- ance, you must stop it from tipping ally reduced. over, e.g. -
Page 15: Drinking Water Connection
Installation and connection en Also check that there is no cover Insert the mains plug of the appli- in the drainage system preventing ance into a nearby socket. the wastewater from being dis- The connection data for the appli- charged. ance can be found on the rating plate. -
Page 16: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Familiarising yourself with your appliance Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with "E number and FD number"... -
Page 17: Controls
Familiarising yourself with your appliance en "Detergent" → Page 31 is added to the detergent Detergent dispenser dispenser. "Bottom basket" → Page 24 Bottom basket Dispenser for special salt Add the special salt to the dispenser for special salt. → "Water softening system", Page 28 Lower spray arm The lower spray arm washes the tableware in the bot- tom basket. - Page 18 en Familiarising yourself with your appliance 4 5 6 7 8 9 "Switching on the appliance" → Page 36 ON/OFF button and reset button "Switching off the appliance" → Page 37 "Terminating the programme" → Page 37 "Programmes" → Page 20 Programme buttons Info button If you press , the display shows information about selected programmes, basic settings and additional functions.
- Page 19 Familiarising yourself with your appliance en buttons You can use these buttons to scroll between the basic settings. → "Changing basic settings", Page 40 "Changing basic settings" → Page 40 Setting buttons "Opening the appliance door" → Page 35 Door opener Display The display shows information about pro- grammes, basic settings or additional functions.
-
Page 20: Programmes
en Programmes Programmes Programmes You can find an overview of the pro- ted. The running time will change if Programmes grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending... -
Page 21: Information For Test Institutes
Programmes en Programme Programme sequence Additional func- tions Tableware: Reduced noise: → "Additional ¡ Cleaning mixed table- ¡ Pre-Rinse Silence 50 ware and cutlery. functions", ¡ Cleaning 50 °C Level of soiling: Page 22 ¡ Intermediate rinse ¡ Removing common ¡ Final rinse 35 °C household food remnants ¡... -
Page 22: Favourite
en Additional functions E-mail enquiries to: dishwasher@test- Additional functions Additional functions appliances.com The product number (E-Nr.) and the You can find an overview of the addi- Additional functions production number (FD) are required tional functions that can be selected here. They can be found on the rat- here. -
Page 23: Features
Features en Top basket Additional func- tion Arrange cups and glasses in the top ¡ Switch on with mixed basket. loads containing table- IntensiveZone ware with different soil- ing levels, e.g. place very soiled pots and pans in the bottom bas- ket and normally soiled tableware in the upper basket. -
Page 24: Bottom Basket
en Features Raise or lower the basket evenly to the right level. → "Basket heights", Page 27 Cutlery drawer Arrange cutlery in the cutlery drawer. Check that the basket is level on both sides. Slide the basket back in. Bottom basket Arrange pans and plates in the bot- tom basket. -
Page 25: Etagere
Features en Etagere Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. If you want to return the cutlery drawer to the original position, fold the side shelf back up until it clicks into position. -
Page 26: Glasszone
en Features Push the lever forwards and fold down the prongs . Push in the top basket. Cleaning glassZone To use the prongs again, fold them Limescale and soiling from the dish- back up. washing water can block the nozzles. a The prongs audibly click into posi- tion. -
Page 27: Basket Heights
Before using for the first time en Check that the mounts are in the correct position. a The glassZone audibly clicks into position . Push in the top basket. Basket heights Set the baskets at the right height. Appliance height 81.5 cm with cutlery drawer Setting Top basket Bottom basket... -
Page 28: Water Softening System
en Water softening system To ensure good dishwashing results, Water softening system Water softening system you can treat the water with special salt and the water softening system. Hard water leaves limescale on the Water softening system To avoid damage to the appliance, tableware as well as the washing water with a hardness above 9 °E tank and parts of the appliance may... -
Page 29: Switching Off The Water Softening System
Water softening system en cial salt required depends on the wa- Fill the dispenser right up with spe- ter hardness: the higher the water cial salt. The water in the dis- hardness, the greater the amount of penser is displaced and forced special salt required. -
Page 30: Regeneration Of The Water Softening System
en Rinse aid system Regeneration of the water Rinse aid system Rinse aid system softening system You can use the rinse aid system Rinse aid system In order to obtain fault-free function of and rinse aid to get tableware and the water softening system, the appli- glasses rinsed perfectly without ance performs regeneration of the marks. -
Page 31: Setting The Amount Of Rinse Aid
Detergent en Spilled rinse aid can cause ex- Press repeatedly until the display cessive frothing during the wash shows "Rinse aid dispenser". cycle. Press repeatedly until the Close the lid of the dispenser for display shows 0. rinse aid. To save the settings, press a The lid clicks into position. -
Page 32: Unsuitable Detergents
en Detergent Combined detergent Detergent Description Besides conventional separate deter- Powder deter- Powder detergent is re- gents, a number of products are gent commended for shorter available with additional functions. "Programmes" → Page 20. These products contain not only de- The dosage can be adjus- tergent but also rinse aid and salt re- ted to the level of soiling. -
Page 33: Adding Detergent
Detergent en pletely dispense with certain sub- If you are using tablets, one is stances. The cleaning effect may enough. Insert the tablets in a hori- be restricted here. zontal position. ¡ Set the rinse aid and the water If you are using powder or liquid softening system to the separate detergent, follow the manufac- detergent or combined detergent... -
Page 34: Tableware
en Tableware Cause Recommendation Tableware Tableware Highly caustic alkaline If you are using highly or highly acidic clean- caustic alkaline or Only clean tableware that is suitable Tableware ing agents, in particu- highly acidic cleaning for dishwashers. lar commercial or in- agents, in particular Note: Decorated glassware and parts dustrial cleaning... -
Page 35: Removing Tableware
Basic operation en ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so the water can run off. Removing tableware WARNING Remove large remnants of food Risk of injury! from your tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 36: Switching On The Appliance
en Basic operation If the electric childproof lock is ac- Press the button for the relevant ▶ tivated, press on the upper middle additional function. section of the appliance door twice → "Additional functions", Page 22 with a short interval in between. a The additional function is set and a The appliance door will open auto- the additional function button matically. -
Page 37: Interrupting Programme
Basic operation en ¡ The appliance switches off auto- Press the programme button or an matically 1 minute after the end of additional function. the programme to save energy. If you open the appliance door im- Switching off appliance mediately after the programme has Please note the information on ended, the appliance will switch off "Safe use"... -
Page 38: Basic Settings
en Basic settings Basic settings Basic settings You can configure the appliance to meet your needs. Basic settings Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Time setting 00:00 - 24:00 Set the current time. - Page 39 Basic settings en Basic setting Selection Description Eco forecast Switch EcoCheck on or off. When selecting the programme, the average wa- ter consumption and energy consumption is briefly shown on the display. emotionLight Switch the interior lighting of the appliance on or On via main switch off.
-
Page 40: Changing Basic Settings
en Home Connect ¡ → "Connecting the appliance to Changing basic settings WLAN home network (Wi-Fi)", Press . Page 41 To open the basic settings, press The Home Connect app guides you for approx. 3 seconds. through the entire login process. Fol- low the instructions in the Home Con- Press repeatedly until the display nect app to configure the settings. -
Page 41: Home Connect Settings
Home Connect en Connecting the appliance to WLAN Activating Remote Start home network (Wi-Fi) When you have selected "Manual" in the basic settings of this function, ac- Requirements tivate the function on your appliance. ¡ Home Connect app is installed on your mobile device. Requirements ¡... -
Page 42: Data Protection
Wi-Fi communication module in- A detailed RED Declaration of Con- stalled). formity can be found online at ¡ Security certificate of the Wi-Fi www.siemens-home.bsh-group.com communication module (to ensure among the additional documents on a secure data connection). the product page for your appliance. -
Page 43: Cleaning And Servicing
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.siemens-home.bsh- mend cleaning your appliance at reg- group.com/store or from customer ular intervals. service. -
Page 44: Filter System
en Cleaning and servicing Run Machine Care without tableware Pour the machine cleaner into the if the indicator for Machine Care detergent dispenser until it is filled lights up on the control panel or if ad- completely. vised to do so by the display. The in- Do not place any additional ma- dicator will go out after you have run chine cleaner in the appliance in-... -
Page 45: Cleaning Spray Arms
Cleaning and servicing en Make sure that the locking catches on the coarse filter click into posi- tion. Insert the filter system into the ap- pliance and turn the coarse filter clockwise. Make sure that the arrow markings match up. Cleaning spray arms Limescale and soiling in the dish- Pull down the micro filter to re- washing water may block the nozzles... - Page 46 en Cleaning and servicing Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
-
Page 47: Troubleshooting
Troubleshooting en Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 48 en Troubleshooting Fault Cause troubleshooting Appliance door opens too Door is not correctly adjus- Adjust the appliance door as de- ▶ wide at the end of the pro- ted. scribed in the installation instruc- gramme. tions. The door gap must be at least 70 mm - 100 mm.
-
Page 49: Error Code / Fault Display / Signal
Troubleshooting en Error code / Fault display / Signal Fault Cause troubleshooting E:2130 lights up. Intake opening of Zeolith Re-arrange the tableware in the ap- ▶ container is covered by pliance so the "Intake opening of the Zeolith container " → Page 16 items of tableware. - Page 50 en Troubleshooting Fault Cause troubleshooting E:3200 or indicator for wa- Re-insert the filter in the supply ter supply lights up. hose. Screw the water connection back Check the water connection for leaks. Restore the power supply. Switch the appliance on. E:9240 lights up. Filters are soiled or blocked.
-
Page 51: Washing Results
Troubleshooting en Fault Cause troubleshooting A different error code ap- A technical fault is present. Press . pears in the display window. Unplug the appliance or switch off the fuse. E:0100 to E:9010 Wait at least 2 minutes. Insert the mains plug of the appli- ance in a socket or switch on the fuse. - Page 52 en Troubleshooting Fault Cause troubleshooting Tableware is not dry. Use a different combined detergent with a better drying performance. Activate "Extra Dry" → Page 38. Extra Dry not activated to im- ▶ prove drying performance. Tableware removed too Wait until the programme ends. early or drying process not Only remove tableware 30 minutes yet ended.
- Page 53 Troubleshooting en Fault Cause troubleshooting Remnants of food on table- Filters are soiled. Clean the filters. ▶ → "Cleaning filters", Page 44 ware. Filters are inserted incor- Insert the filters properly. → "Filter system", Page 44 rectly and/or not engaged. Engage the filters. Washing programme selec- Select a more intensive washing ▶...
- Page 54 en Troubleshooting Fault Cause troubleshooting Water marks on plastic Due to laws of physics Select a more intensive pro- ▶ parts. droplet formation on plastic gramme. → "Programmes", Page 20 surfaces is unavoidable. After drying water marks are Position tableware at an angle. ▶...
- Page 55 Troubleshooting en Fault Cause troubleshooting Tea residue or lipstick marks Washing temperature is too Select a programme with a higher ▶ on tableware. low. washing temperature. → "Programmes", Page 20 Too little detergent is being Use a suitable "Detergent " ▶ → Page 31 and follow the manufac- used or is unsuitable.
- Page 56 en Troubleshooting Fault Cause troubleshooting Plastic parts are discol- Washing temperature is too Select a programme with a higher ▶ oured. low. washing temperature. → "Programmes", Page 20 Tableware has been pre- Only remove large remnants of food ▶ cleaned too intensely. The and do not prerinse tableware.
-
Page 57: Home Connect Problem
Troubleshooting en Fault Cause troubleshooting Rust spots on cutlery. Cutlery is not sufficiently Use rust-resistant tableware. ▶ rust-resistant. Knife blades are often more severely af- fected. Cutlery may also rust if Do not wash rusting items. ▶ washed together with rust- ing items. -
Page 58: Information On Display Panel
en Troubleshooting Information on display panel Fault Cause troubleshooting Add "Special salt" → Page 28. Special salt refill indicator Insufficient special salt. ▶ lights up. Sensor does not detect spe- Do not use special salt tablets. ▶ cial salt tablets. Refill indicator for special Water softening system is Setting the water softening system ▶... -
Page 59: Mechanical Damage
Troubleshooting en Fault Cause troubleshooting → "Terminate programme", Programme starts automat- You did not wait until pro- ▶ ically. gramme ended. Page 37 Appliance stops during the Appliance door is not closed Close the appliance door. ▶ programme or cuts out. properly. Power and/or water supply Check the power supply. - Page 60 en Troubleshooting Fault Cause troubleshooting Knocking or rattling noise. With a small load the water Distribute the tableware evenly. ▶ jets directly strike against Load the appliance with more table- ▶ the tub. ware. Light items of tableware Position light items of tableware se- ▶...
-
Page 61: Clean Wastewater Pump
Transportation, storage and disposal en Clean wastewater pump Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. WARNING Risk of injury! Sharp and pointed objects or frag- ments of glass may block the waste a The pump cover clicks into posi-... -
Page 62: Protect Appliance From Frost
en Customer Service Protect appliance from frost Disposing of old appliance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 63: Product Number (E-Nr.), Produc- Tion Number (Fd) And Consecut- Ive Numbering (Z-Nr.)
Customer Service en We will always find an appropriate Product number (E-Nr.), pro- solution and try to avoid unnecessary duction number (FD) and con- visits being made by a Customer Ser- secutive numbering (Z-Nr.) vice technician. With any warranty claims, we will You can find the product number (E- make sure that your appliance is re- Nr.), the production number (FD) and... -
Page 64: Technical Specifications
en Technical specifications needs to be turned off if you are Capacity 14 place settings away from home for a long period, This product contains light sources e.g. on holiday for several weeks. from energy efficiency class G. These light sources are available as a spare part and should only be replaced by Technical specifications Technical specifications... - Page 65 Technical specifications en To file a request, please email to oss- request@bshg.com or send a written request to BSH Hausgeräte GmbH, Carl-Wery-Str. 34, D-81739 München, Germany. Reference "OSSREQUEST" The cost of performing your request will be charged to you. This offer is valid three years from the date of pur- chase or at least as long as we offer support and spare parts for the re-...
- Page 68 BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München GERMANY www.siemens-home.bsh-group.com Manufactured by BSH Hausgeräte GmbH under Trademark License of Siemens AG *9001456371* 9001456371 (000625) 650 P5...
