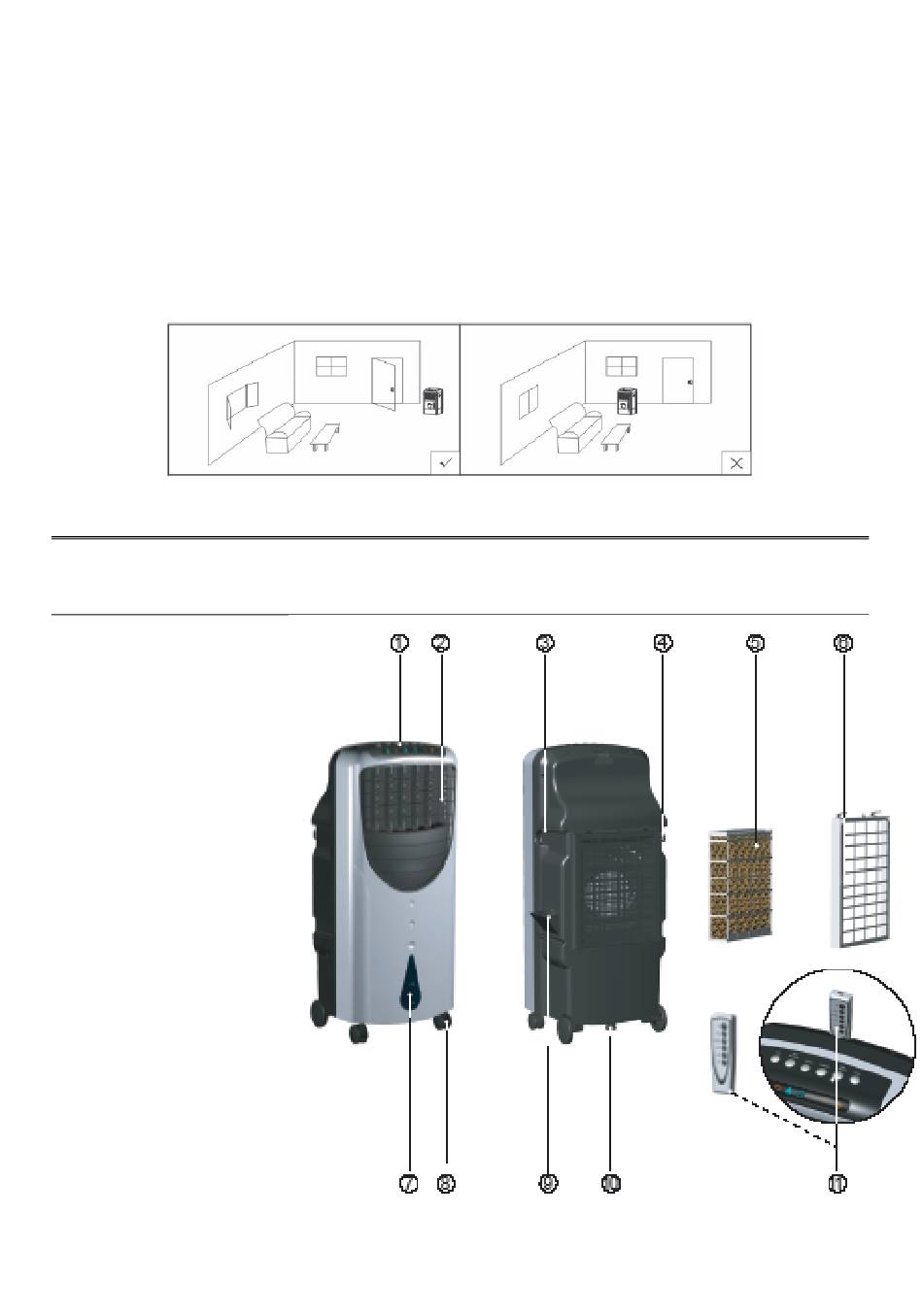

For the best performance of your Evaporative Cooler it should be filled with water,
and ice if available, and positioned in a location that will create a 'flow through' air
effect. The greatest cooling effect will be felt if the unit is operated in a partly
opened doorway or window with the cooled air directed into the room. It is also
important to have a door or window partly opened away from the air cooler, in order
to create the 'flow through' effect. If this arrangement cannot be met the
Evaporative Cooling System will be less efficient.

PARTS DESCRIPTION

1. Control Panel
2. Front louvres
3. Carrying handle
4. Power cord
winder
5. Honeycomb
water curtain
6. Rear screen
7. Water level
indicator
8. castors
9. Water inlet
10. Drainage
11. Remote control
3
